Add: Room 506A, Rongxin Mansion, No.23, South Block
Lian hua chi, Fengtai District, Beijing, China Tel: 010-83993400, 83993401 Fax: 010-83993403 JL££J81g*JH3fi|183Ste£i5] Email: info@magengine.com

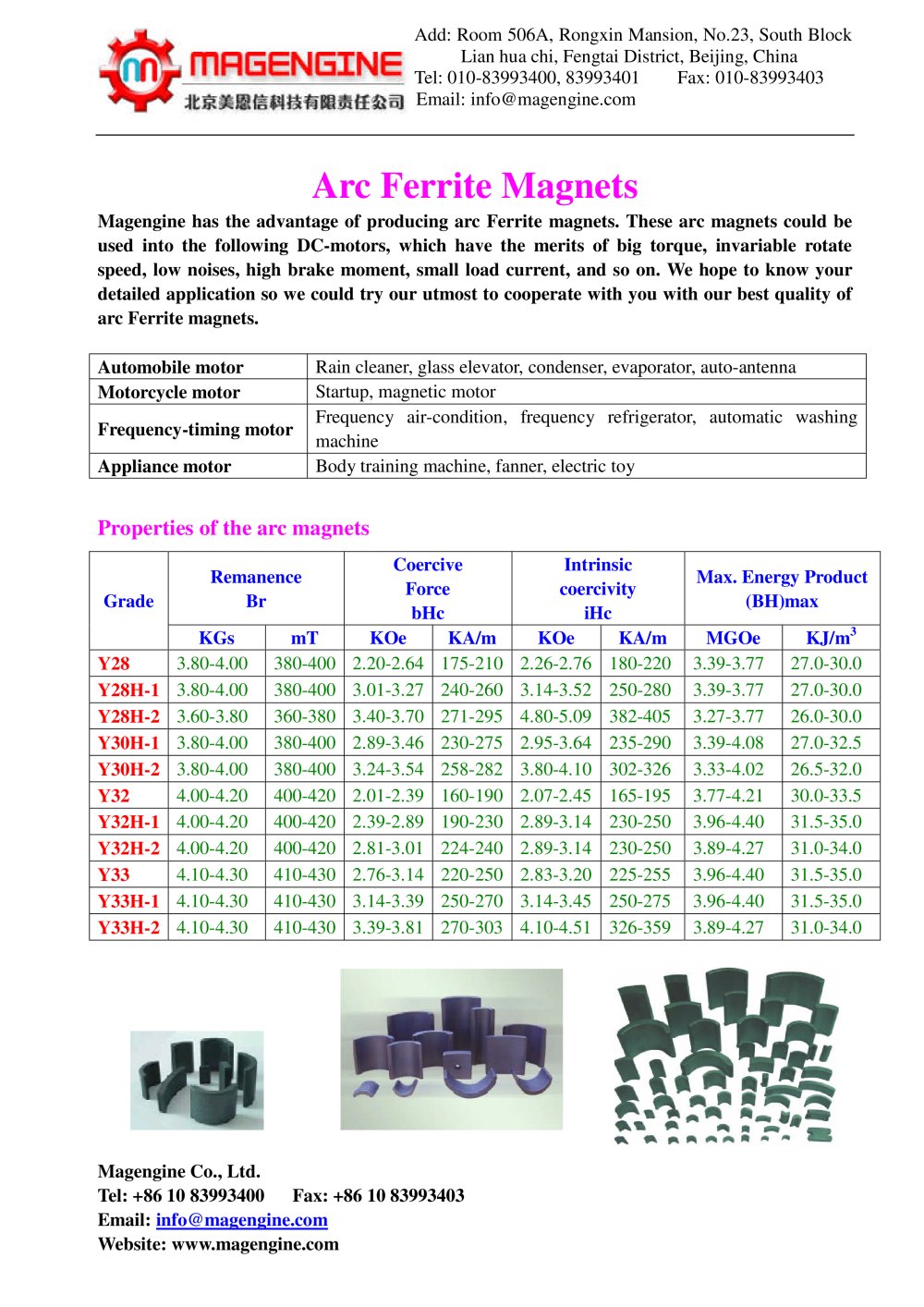

Arc Ferrite Magnets
Magengine has the advantage of producing arc Ferrite magnets. These arc magnets could be used into the following DC-motors, which have the merits of big torque, invariable rotate speed, low noises, high brake moment, small load current, and so on. We hope to know your detailed application so we could try our utmost to cooperate with you with our best quality of arc Ferrite magnets.
Automobile motor
Rain cleaner, glass elevator, condenser, evaporator, auto-antenna
Motorcycle motor
Startup, magnetic motor
Frequency-timing motor
Frequency air-condition, frequency refrigerator, automatic washing machine
Appliance motor_| Body training machine, fanner, electric toy
operties of the ar
Grade
Remanence Br
Coercive Force bHc
Intrinsic coercivity iHc
Max. Energy Product (BH)max
KGs
mT
KOe
KA/m
KOe
KA/m
MGOe
KJ/m3
Y28
3.80-4.00
380-400
2.20-2.64
175-210
2.26-2.76
180-220
3.39-3.77
27.0-30.0
Y28H-1
3.80-4.00
380-400
3.01-3.27
240-260
3.14-3.52
250-280
3.39-3.77
27.0-30.0
Y28H-2
3.60-3.80
360-380
3.40-3.70
271-295
4.80-5.09
382-405
3.27-3.77
26.0-30.0
Y30H-1
3.80-4.00
380-400
2.89-3.46
230-275
2.95-3.64
235-290
3.39-4.08
27.0-32.5
Y30H-2
3.80-4.00
380-400
3.24-3.54
258-282
3.80-4.10
302-326
3.33-4.02
26.5-32.0
Y32
4.00-4.20
400-420
2.01-2.39
160-190
2.07-2.45
165-195
3.77-4.21
30.0-33.5
Y32H-1
4.00-4.20
400-420
2.39-2.89
190-230
2.89-3.14
230-250
3.96-4.40
31.5-35.0
Y32H-2
4.00-4.20
400-420
2.81-3.01
224-240
2.89-3.14
230-250
3.89-4.27
31.0-34.0
Y33
4.10-4.30
410-430
2.76-3.14
220-250
2.83-3.20
225-255
3.96-4.40
31.5-35.0
Y33H-1
4.10-4.30
410-430
3.14-3.39
250-270
3.14-3.45
250-275
3.96-4.40
31.5-35.0
Y33H-2
4.10-4.30
410-430
3.39-3.81
270-303
4.10-4.51
326-359
3.89-4.27
31.0-34.0
Magengine Co., Ltd.
Tel: +86 10 83993400 Fax: +86 10 83993403 Email: info@magengine.com Website: www.magengine.com
