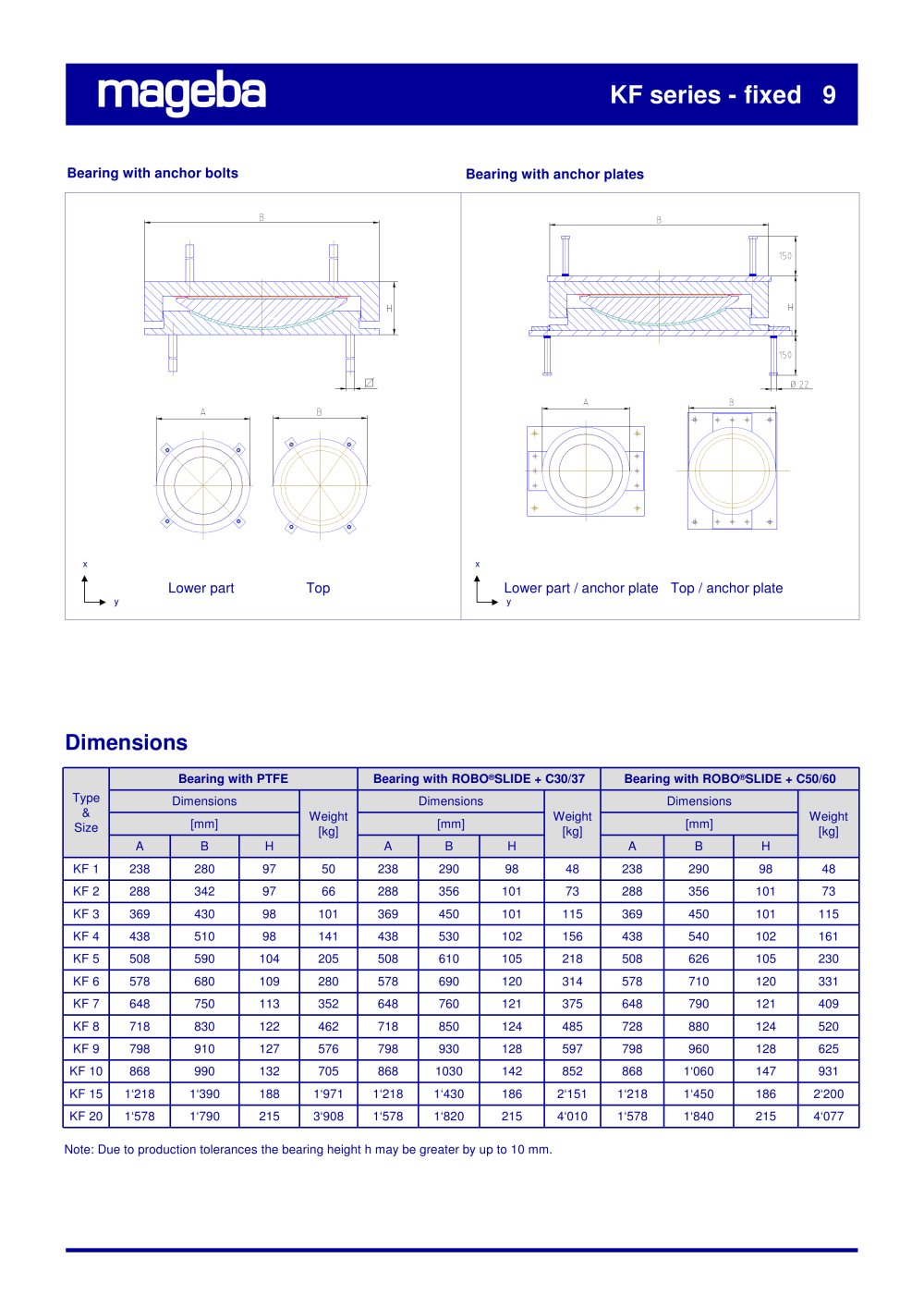

x y KF series - fixed 9 Note: Due to production tolerances the bearing height h may be greater by up to 10 mm. Bearing with anchor bolts Bearing with anchor plates Dimensions Lower part Top Lower part / anchor plate Top / anchor plate x y Type & Size Bearing with PTFE Bearing with ROBO®SLIDE + C30/37 Bearing with ROBO®SLIDE + C50/60 Dimensions Weight [kg] Dimensions Weight [kg] Dimensions Weight [kg] [mm] [mm] [mm] A B H A B H A B H KF 1 238 280 97 50 238 290 98 48 238 290 98 48 KF 2 288 342 97 66 288 356 101 73 288 356 101 73 KF 3 369 430 98 101 369 450 101 115 369 450 101 115 KF 4 438 510 98 141 438 530 102 156 438 540 102 161 KF 5 508 590 104 205 508 610 105 218 508 626 105 230 KF 6 578 680 109 280 578 690 120 314 578 710 120 331 KF 7 648 750 113 352 648 760 121 375 648 790 121 409 KF 8 718 830 122 462 718 850 124 485 728 880 124 520 KF 9 798 910 127 576 798 930 128 597 798 960 128 625 KF 10 868 990 132 705 868 1030 142 852 868 1‘060 147 931 KF 15 1‘218 1‘390 188 1‘971 1‘218 1‘430 186 2‘151 1‘218 1‘450 186 2‘200 KF 20 1‘578 1‘790 215 3‘908 1‘578 1‘820 215 4‘010 1‘578 1‘840 215 4‘077
