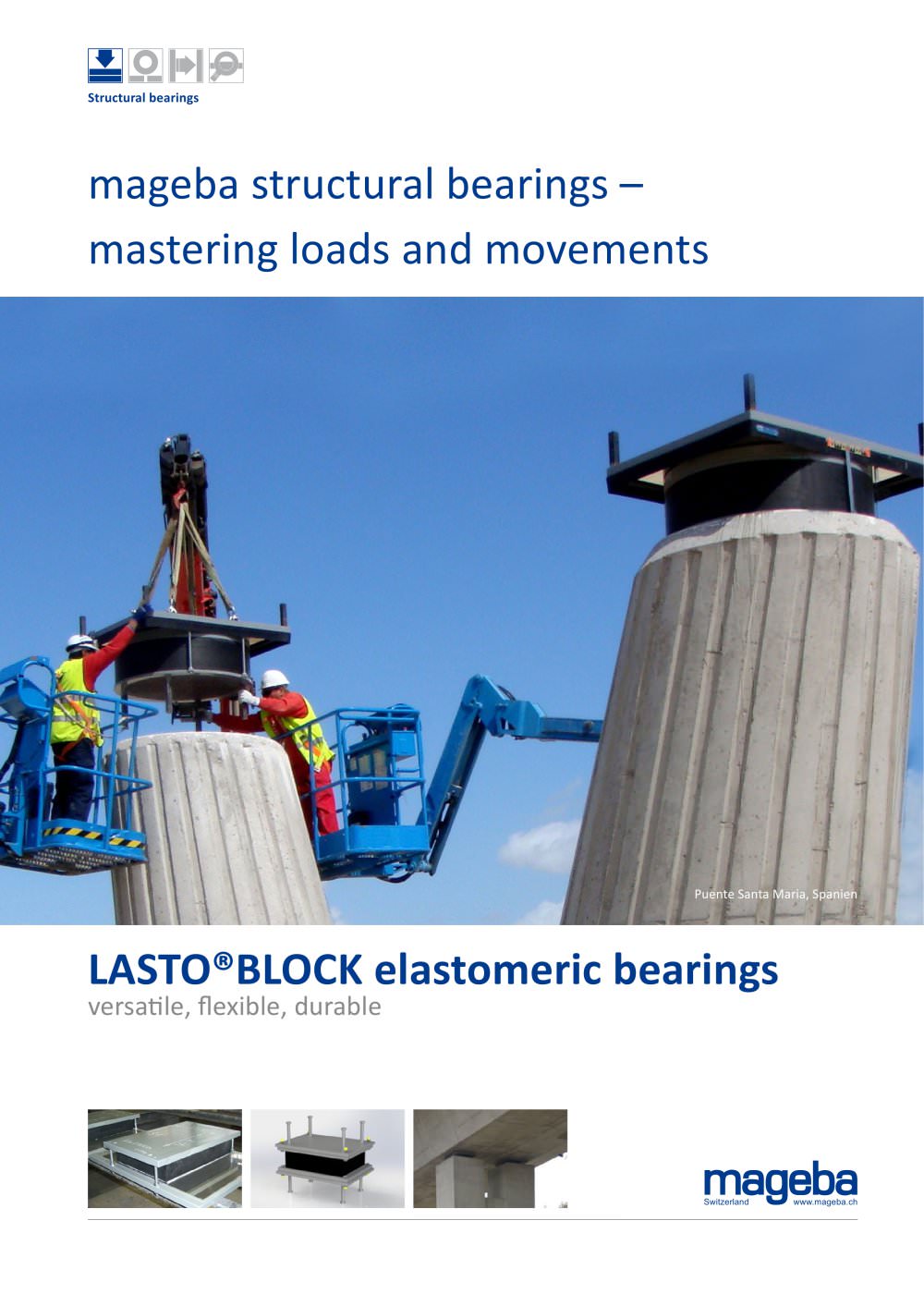

Prospect Elastomeric bearings - mageba - #1

Text version of the page

www.mageba.ch Bearings -Certified with the CE mark. -Design according to EN 1337-3. LASTO®BLOCK Characteristics ThemagebaLASTO®BLOCKelastomericbearingisareinforcedelastomericbearingmanufacturedfromsyntheticchloroprenerubber(CR)ornaturalrubber(NR). Byusingwellprovenproductionprocessesandonlyhigh-qualityrawmaterials,wecanguaranteealonglife-spanwithouttheneedformaintenance. Fields of application magebaLASTO®BLOCKelastomericbearingsareusedmainlyforbridgesandbuildingsandcanbeusedattemperaturesofbetween-40°Cand+50°C.Brieftemperatureincreasesupto+70°Ccanbewithstoodwithoutproblems. LASTO®BLOCKelastomericbearingscanabsorbhorizontalmovementsineverydirectionandrotationalmovementsaroundeveryaxisthroughelasticdeformaton,therebyallowingforcestobetransferredsafelyfromonestructuralcomponenttoanother. Main features LASTO®BLOCKelastomericbearingsconsistofvulcanisedelastomericblocks,reinforcedbytwoormoresteelsheets. Thevulcanisedreinforcinglayersofhigh-strengthsteelsheetingarefullyenclosedinelastomertoensureabsolutecorrosionprotectionandcompletefreedomfrommaintenance. TherubberusedisextremelyresistanttoageingandweatheringinfluencessuchasozoneandUVradiation. EN 1337-50672-BPR-001 3 Arch bridge with elastomeric bearings Steel girder on elastomeric bearings
