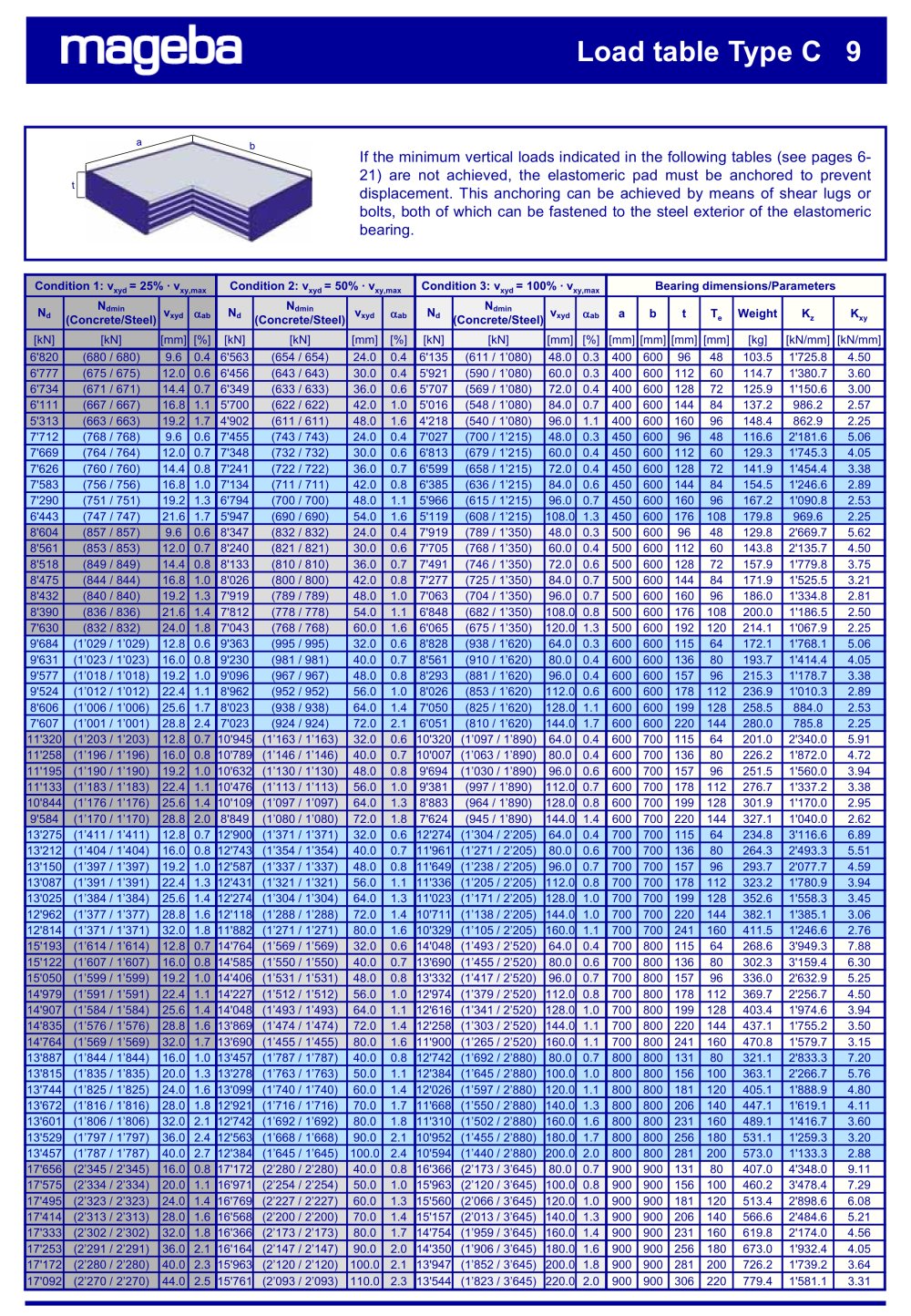

Load table Type C 9 Iftheminimumverticalloadsindicatedinthefollowingtables(seepages6-21)arenotachieved,theelastomericpadmustbeanchoredtopreventdisplacement.Thisanchoringcanbeachievedbymeansofshearlugsorbolts,bothofwhichcanbefastenedtothesteelexterioroftheelastomericbearing. Condition 1: vxyd = 25% · vxy,max Condition 2: vxyd = 50% · vxy,max Condition 3: vxyd = 100% · vxy,max Bearing dimensions/Parameters Nd Ndmin (Concrete/Steel) vxyd áab Nd Ndmin (Concrete/Steel) vxyd áab Nd Ndmin (Concrete/Steel) vxyd áab a b t Te Weight Kz Kxy [kN] [kN] [mm] [%] [kN] [kN] [mm] [%] [kN] [kN] [mm] [%] [mm] [mm] [mm] [mm] [kg] [kN/mm] [kN/mm] 6'820 (680 / 680) 9.6 0.4 6'563 (654 / 654) 24.0 0.4 6'135 (611 / 1’080) 48.0 0.3 400 600 96 48 103.5 1'725.8 4.50 6'777 (675 / 675) 12.0 0.6 6'456 (643 / 643) 30.0 0.4 5'921 (590 / 1’080) 60.0 0.3 400 600 112 60 114.7 1'380.7 3.60 6'734 (671 / 671) 14.4 0.7 6'349 (633 / 633) 36.0 0.6 5'707 (569 / 1’080) 72.0 0.4 400 600 128 72 125.9 1'150.6 3.00 6'111 (667 / 667) 16.8 1.1 5'700 (622 / 622) 42.0 1.0 5'016 (548 / 1’080) 84.0 0.7 400 600 144 84 137.2 986.2 2.57 5'313 (663 / 663) 19.2 1.7 4'902 (611 / 611) 48.0 1.6 4'218 (540 / 1’080) 96.0 1.1 400 600 160 96 148.4 862.9 2.25 7'712 (768 / 768) 9.6 0.6 7'455 (743 / 743) 24.0 0.4 7'027 (700 / 1’215) 48.0 0.3 450 600 96 48 116.6 2'181.6 5.06 7'669 (764 / 764) 12.0 0.7 7'348 (732 / 732) 30.0 0.6 6'813 (679 / 1’215) 60.0 0.4 450 600 112 60 129.3 1'745.3 4.05 7'626 (760 / 760) 14.4 0.8 7'241 (722 / 722) 36.0 0.7 6'599 (658 / 1’215) 72.0 0.4 450 600 128 72 141.9 1'454.4 3.38 7'583 (756 / 756) 16.8 1.0 7'134 (711 / 711) 42.0 0.8 6'385 (636 / 1’215) 84.0 0.6 450 600 144 84 154.5 1'246.6 2.89 7'290 (751 / 751) 19.2 1.3 6'794 (700 / 700) 48.0 1.1 5'966 (615 / 1’215) 96.0 0.7 450 600 160 96 167.2 1'090.8 2.53 6'443 (747 / 747) 21.6 1.7 5'947 (690 / 690) 54.0 1.6 5'119 (608 / 1’215) 108.0 1.3 450 600 176 108 179.8 969.6 2.25 8'604 (857 / 857) 9.6 0.6 8'347 (832 / 832) 24.0 0.4 7'919 (789 / 1’350) 48.0 0.3 500 600 96 48 129.8 2'669.7 5.62 8'561 (853 / 853) 12.0 0.7 8'240 (821 / 821) 30.0 0.6 7'705 (768 / 1’350) 60.0 0.4 500 600 112 60 143.8 2'135.7 4.50 8'518 (849 / 849) 14.4 0.8 8'133 (810 / 810) 36.0 0.7 7'491 (746 / 1’350) 72.0 0.6 500 600 128 72 157.9 1'779.8 3.75 8'475 (844 / 844) 16.8 1.0 8'026 (800 / 800) 42.0 0.8 7'277 (725 / 1’350) 84.0 0.7 500 600 144 84 171.9 1'525.5 3.21 8'432 (840 / 840) 19.2 1.3 7'919 (789 / 789) 48.0 1.0 7'063 (704 / 1’350) 96.0 0.7 500 600 160 96 186.0 1'334.8 2.81 8'390 (836 / 836) 21.6 1.4 7'812 (778 / 778) 54.0 1.1 6'848 (682 / 1’350) 108.0 0.8 500 600 176 108 200.0 1'186.5 2.50 7'630 (832 / 832) 24.0 1.8 7'043 (768 / 768) 60.0 1.6 6'065 (675 / 1’350) 120.0 1.3 500 600 192 120 214.1 1'067.9 2.25 9'684 (1’029 / 1’029) 12.8 0.6 9'363 (995 / 995) 32.0 0.6 8'828 (938 / 1’620) 64.0 0.3 600 600 115 64 172.1 1'768.1 5.06 9'631 (1’023 / 1’023) 16.0 0.8 9'230 (981 / 981) 40.0 0.7 8'561 (910 / 1’620) 80.0 0.4 600 600 136 80 193.7 1'414.4 4.05 9'577 (1’018 / 1’018) 19.2 1.0 9'096 (967 / 967) 48.0 0.8 8'293 (881 / 1’620) 96.0 0.4 600 600 157 96 215.3 1'178.7 3.38 9'524 (1’012 / 1’012) 22.4 1.1 8'962 (952 / 952) 56.0 1.0 8'026 (853 / 1’620) 112.0 0.6 600 600 178 112 236.9 1'010.3 2.89 8'606 (1’006 / 1’006) 25.6 1.7 8'023 (938 / 938) 64.0 1.4 7'050 (825 / 1’620) 128.0 1.1 600 600 199 128 258.5 884.0 2.53 7'607 (1’001 / 1’001) 28.8 2.4 7'023 (924 / 924) 72.0 2.1 6'051 (810 / 1’620) 144.0 1.7 600 600 220 144 280.0 785.8 2.25 11'320 (1’203 / 1’203) 12.8 0.7 10'945 (1’163 / 1’163) 32.0 0.6 10'320 (1’097 / 1’890) 64.0 0.4 600 700 115 64 201.0 2'340.0 5.91 11'258 (1’196 / 1’196) 16.0 0.8 10'789 (1’146 / 1’146) 40.0 0.7 10'007 (1’063 / 1’890) 80.0 0.4 600 700 136 80 226.2 1'872.0 4.72 11'195 (1’190 / 1’190) 19.2 1.0 10'632 (1’130 / 1’130) 48.0 0.8 9'694 (1’030 / 1’890) 96.0 0.6 600 700 157 96 251.5 1'560.0 3.94 11'133 (1’183 / 1’183) 22.4 1.1 10'476 (1’113 / 1’113) 56.0 1.0 9'381 (997 / 1’890) 112.0 0.7 600 700 178 112 276.7 1'337.2 3.38 10'844 (1’176 / 1’176) 25.6 1.4 10'109 (1’097 / 1’097) 64.0 1.3 8'883 (964 / 1’890) 128.0 0.8 600 700 199 128 301.9 1'170.0 2.95 9'584 (1’170 / 1’170) 28.8 2.0 8'849 (1’080 / 1’080) 72.0 1.8 7'624 (945 / 1’890) 144.0 1.4 600 700 220 144 327.1 1'040.0 2.62 13'275 (1’411 / 1’411) 12.8 0.7 12'900 (1’371 / 1’371) 32.0 0.6 12'274 (1’304 / 2’205) 64.0 0.4 700 700 115 64 234.8 3'116.6 6.89 13'212 (1’404 / 1’404) 16.0 0.8 12'743 (1’354 / 1’354) 40.0 0.7 11'961 (1’271 / 2’205) 80.0 0.6 700 700 136 80 264.3 2'493.3 5.51 13'150 (1’397 / 1’397) 19.2 1.0 12'587 (1’337 / 1’337) 48.0 0.8 11'649 (1’238 / 2’205) 96.0 0.7 700 700 157 96 293.7 2'077.7 4.59 13'087 (1’391 / 1’391) 22.4 1.3 12'431 (1’321 / 1’321) 56.0 1.1 11'336 (1’205 / 2’205) 112.0 0.8 700 700 178 112 323.2 1'780.9 3.94 13'025 (1’384 / 1’384) 25.6 1.4 12'274 (1’304 / 1’304) 64.0 1.3 11'023 (1’171 / 2’205) 128.0 1.0 700 700 199 128 352.6 1'558.3 3.45 12'962 (1’377 / 1’377) 28.8 1.6 12'118 (1’288 / 1’288) 72.0 1.4 10'711 (1’138 / 2’205) 144.0 1.0 700 700 220 144 382.1 1'385.1 3.06 12'814 (1’371 / 1’371) 32.0 1.8 11'882 (1’271 / 1’271) 80.0 1.6 10'329 (1’105 / 2’205) 160.0 1.1 700 700 241 160 411.5 1'246.6 2.76 15'193 (1’614 / 1’614) 12.8 0.7 14'764 (1’569 / 1’569) 32.0 0.6 14'048 (1’493 / 2’520) 64.0 0.4 700 800 115 64 268.6 3'949.3 7.88 15'122 (1’607 / 1’607) 16.0 0.8 14'585 (1’550 / 1’550) 40.0 0.7 13'690 (1’455 / 2’520) 80.0 0.6 700 800 136 80 302.3 3'159.4 6.30 15'050 (1’599 / 1’599) 19.2 1.0 14'406 (1’531 / 1’531) 48.0 0.8 13'332 (1’417 / 2’520) 96.0 0.7 700 800 157 96 336.0 2'632.9 5.25 14'979 (1’591 / 1’591) 22.4 1.1 14'227 (1’512 / 1’512) 56.0 1.0 12'974 (1’379 / 2’520) 112.0 0.8 700 800 178 112 369.7 2'256.7 4.50 14'907 (1’584 / 1’584) 25.6 1.4 14'048 (1’493 / 1’493) 64.0 1.1 12'616 (1’341 / 2’520) 128.0 1.0 700 800 199 128 403.4 1'974.6 3.94 14'835 (1’576 / 1’576) 28.8 1.6 13'869 (1’474 / 1’474) 72.0 1.4 12'258 (1’303 / 2’520) 144.0 1.1 700 800 220 144 437.1 1'755.2 3.50 14'764 (1’569 / 1’569) 32.0 1.7 13'690 (1’455 / 1’455) 80.0 1.6 11'900 (1’265 / 2’520) 160.0 1.1 700 800 241 160 470.8 1'579.7 3.15 13'887 (1’844 / 1’844) 16.0 1.0 13'457 (1’787 / 1’787) 40.0 0.8 12'742 (1’692 / 2’880) 80.0 0.7 800 800 131 80 321.1 2'833.3 7.20 13'815 (1’835 / 1’835) 20.0 1.3 13'278 (1’763 / 1’763) 50.0 1.1 12'384 (1’645 / 2’880) 100.0 1.0 800 800 156 100 363.1 2'266.7 5.76 13'744 (1’825 / 1’825) 24.0 1.6 13'099 (1’740 / 1’740) 60.0 1.4 12'026 (1’597 / 2’880) 120.0 1.1 800 800 181 120 405.1 1'888.9 4.80 13'672 (1’816 / 1’816) 28.0 1.8 12'921 (1’716 / 1’716) 70.0 1.7 11'668 (1’550 / 2’880) 140.0 1.3 800 800 206 140 447.1 1'619.1 4.11 13'601 (1’806 / 1’806) 32.0 2.1 12'742 (1’692 / 1’692) 80.0 1.8 11'310 (1’502 / 2’880) 160.0 1.6 800 800 231 160 489.1 1'416.7 3.60 13'529 (1’797 / 1’797) 36.0 2.4 12'563 (1’668 / 1’668) 90.0 2.1 10'952 (1’455 / 2’880) 180.0 1.7 800 800 256 180 531.1 1'259.3 3.20 13'457 (1’787 / 1’787) 40.0 2.7 12'384 (1’645 / 1’645) 100.0 2.4 10'594 (1’440 / 2’880) 200.0 2.0 800 800 281 200 573.0 1'133.3 2.88 17'656 (2’345 / 2’345) 16.0 0.8 17'172 (2’280 / 2’280) 40.0 0.8 16'366 (2’173 / 3’645) 80.0 0.7 900 900 131 80 407.0 4'348.0 9.11 17'575 (2’334 / 2’334) 20.0 1.1 16'971 (2’254 / 2’254) 50.0 1.0 15'963 (2’120 / 3’645) 100.0 0.8 900 900 156 100 460.2 3'478.4 7.29 17'495 (2’323 / 2’323) 24.0 1.4 16'769 (2’227 / 2’227) 60.0 1.3 15'560 (2’066 / 3’645) 120.0 1.0 900 900 181 120 513.4 2'898.6 6.08 17'414 (2’313 / 2’313) 28.0 1.6 16'568 (2’200 / 2’200) 70.0 1.4 15'157 (2’013 / 3’645) 140.0 1.3 900 900 206 140 566.6 2'484.6 5.21 17'333 (2’302 / 2’302) 32.0 1.8 16'366 (2’173 / 2’173) 80.0 1.7 14'754 (1’959 / 3’645) 160.0 1.4 900 900 231 160 619.8 2'174.0 4.56 17'253 (2’291 / 2’291) 36.0 2.1 16'164 (2’147 / 2’147) 90.0 2.0 14'350 (1’906 / 3’645) 180.0 1.6 900 900 256 180 673.0 1'932.4 4.05 17'172 (2’280 / 2’280) 40.0 2.3 15'963 (2’120 / 2’120) 100.0 2.1 13'947 (1’852 / 3’645) 200.0 1.8 900 900 281 200 726.2 1'739.2 3.64 17'092 (2’270 / 2’270) 44.0 2.5 15'761 (2’093 / 2’093) 110.0 2.3 13'544 (1’823 / 3’645) 220.0 2.0 900 900 306 220 779.4 1'581.1 3.31
