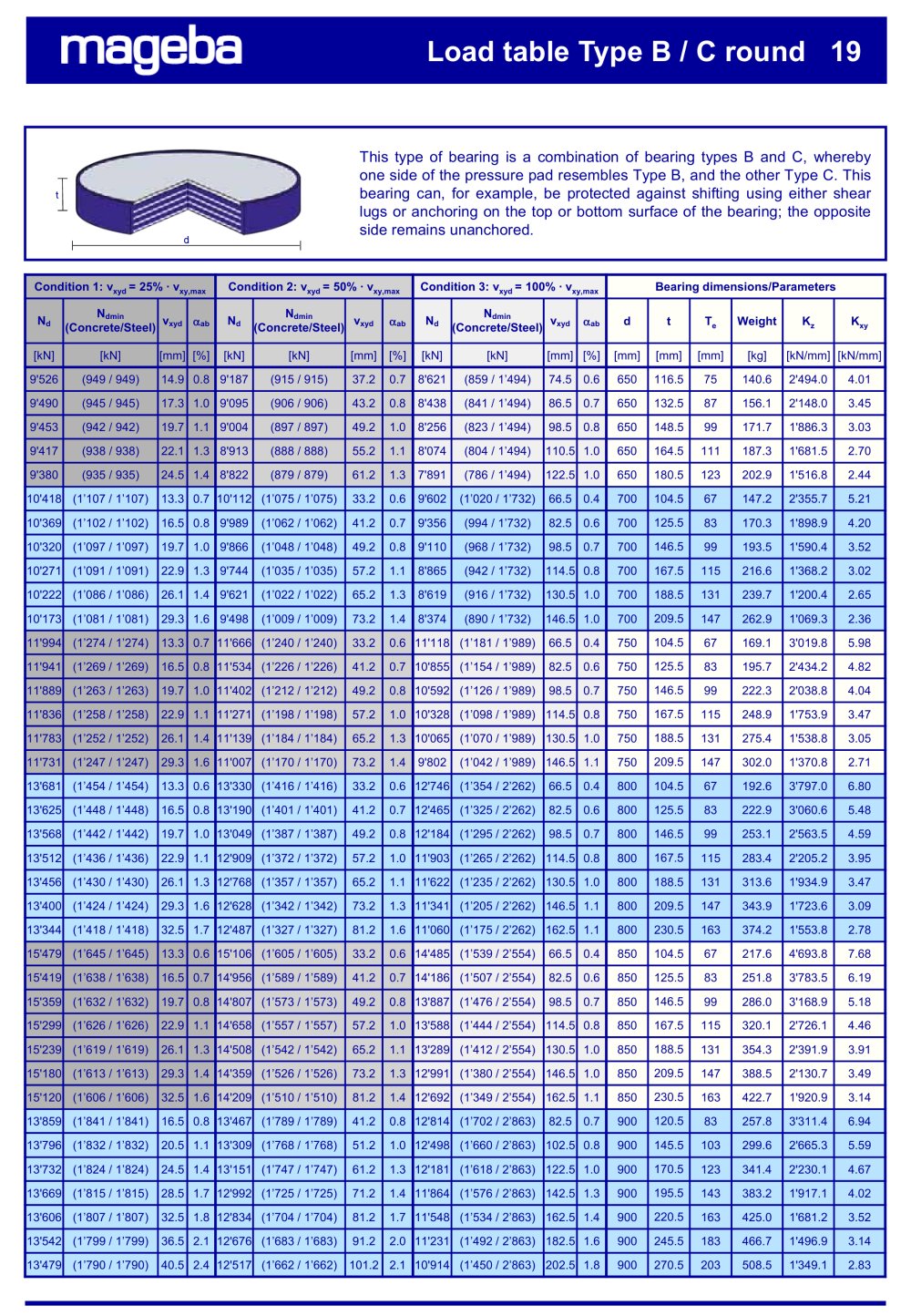

Load table Type B / C round 19 ThistypeofbearingisacombinationofbearingtypesBandC,wherebyonesideofthepressurepadresemblesTypeB,andtheotherTypeC.Thisbearingcan,forexample,beprotectedagainstshiftingusingeithershearlugsoranchoringonthetoporbottomsurfaceofthebearing;theoppositesideremainsunanchored. Condition 1: vxyd = 25% · vxy,max Condition 2: vxyd = 50% · vxy,max Condition 3: vxyd = 100% · vxy,max Bearing dimensions/Parameters Nd Ndmin (Concrete/Steel) vxyd áab Nd Ndmin (Concrete/Steel) vxyd áab Nd Ndmin (Concrete/Steel) vxyd áab d t Te Weight Kz Kxy [kN] [kN] [mm] [%] [kN] [kN] [mm] [%] [kN] [kN] [mm] [%] [mm] [mm] [mm] [kg] [kN/mm] [kN/mm] 9'526 (949 / 949) 14.9 0.8 9'187 (915 / 915) 37.2 0.7 8'621 (859 / 1’494) 74.5 0.6 650 116.5 75 140.6 2'494.0 4.01 9'490 (945 / 945) 17.3 1.0 9'095 (906 / 906) 43.2 0.8 8'438 (841 / 1’494) 86.5 0.7 650 132.5 87 156.1 2'148.0 3.45 9'453 (942 / 942) 19.7 1.1 9'004 (897 / 897) 49.2 1.0 8'256 (823 / 1’494) 98.5 0.8 650 148.5 99 171.7 1'886.3 3.03 9'417 (938 / 938) 22.1 1.3 8'913 (888 / 888) 55.2 1.1 8'074 (804 / 1’494) 110.5 1.0 650 164.5 111 187.3 1'681.5 2.70 9'380 (935 / 935) 24.5 1.4 8'822 (879 / 879) 61.2 1.3 7'891 (786 / 1’494) 122.5 1.0 650 180.5 123 202.9 1'516.8 2.44 10'418 (1’107 / 1’107) 13.3 0.7 10'112 (1’075 / 1’075) 33.2 0.6 9'602 (1’020 / 1’732) 66.5 0.4 700 104.5 67 147.2 2'355.7 5.21 10'369 (1’102 / 1’102) 16.5 0.8 9'989 (1’062 / 1’062) 41.2 0.7 9'356 (994 / 1’732) 82.5 0.6 700 125.5 83 170.3 1'898.9 4.20 10'320 (1’097 / 1’097) 19.7 1.0 9'866 (1’048 / 1’048) 49.2 0.8 9'110 (968 / 1’732) 98.5 0.7 700 146.5 99 193.5 1'590.4 3.52 10'271 (1’091 / 1’091) 22.9 1.3 9'744 (1’035 / 1’035) 57.2 1.1 8'865 (942 / 1’732) 114.5 0.8 700 167.5 115 216.6 1'368.2 3.02 10'222 (1’086 / 1’086) 26.1 1.4 9'621 (1’022 / 1’022) 65.2 1.3 8'619 (916 / 1’732) 130.5 1.0 700 188.5 131 239.7 1'200.4 2.65 10'173 (1’081 / 1’081) 29.3 1.6 9'498 (1’009 / 1’009) 73.2 1.4 8'374 (890 / 1’732) 146.5 1.0 700 209.5 147 262.9 1'069.3 2.36 11'994 (1’274 / 1’274) 13.3 0.7 11'666 (1’240 / 1’240) 33.2 0.6 11'118 (1’181 / 1’989) 66.5 0.4 750 104.5 67 169.1 3'019.8 5.98 11'941 (1’269 / 1’269) 16.5 0.8 11'534 (1’226 / 1’226) 41.2 0.7 10'855 (1’154 / 1’989) 82.5 0.6 750 125.5 83 195.7 2'434.2 4.82 11'889 (1’263 / 1’263) 19.7 1.0 11'402 (1’212 / 1’212) 49.2 0.8 10'592 (1’126 / 1’989) 98.5 0.7 750 146.5 99 222.3 2'038.8 4.04 11'836 (1’258 / 1’258) 22.9 1.1 11'271 (1’198 / 1’198) 57.2 1.0 10'328 (1’098 / 1’989) 114.5 0.8 750 167.5 115 248.9 1'753.9 3.47 11'783 (1’252 / 1’252) 26.1 1.4 11'139 (1’184 / 1’184) 65.2 1.3 10'065 (1’070 / 1’989) 130.5 1.0 750 188.5 131 275.4 1'538.8 3.05 11'731 (1’247 / 1’247) 29.3 1.6 11'007 (1’170 / 1’170) 73.2 1.4 9'802 (1’042 / 1’989) 146.5 1.1 750 209.5 147 302.0 1'370.8 2.71 13'681 (1’454 / 1’454) 13.3 0.6 13'330 (1’416 / 1’416) 33.2 0.6 12'746 (1’354 / 2’262) 66.5 0.4 800 104.5 67 192.6 3'797.0 6.80 13'625 (1’448 / 1’448) 16.5 0.8 13'190 (1’401 / 1’401) 41.2 0.7 12'465 (1’325 / 2’262) 82.5 0.6 800 125.5 83 222.9 3'060.6 5.48 13'568 (1’442 / 1’442) 19.7 1.0 13'049 (1’387 / 1’387) 49.2 0.8 12'184 (1’295 / 2’262) 98.5 0.7 800 146.5 99 253.1 2'563.5 4.59 13'512 (1’436 / 1’436) 22.9 1.1 12'909 (1’372 / 1’372) 57.2 1.0 11'903 (1’265 / 2’262) 114.5 0.8 800 167.5 115 283.4 2'205.2 3.95 13'456 (1’430 / 1’430) 26.1 1.3 12'768 (1’357 / 1’357) 65.2 1.1 11'622 (1’235 / 2’262) 130.5 1.0 800 188.5 131 313.6 1'934.9 3.47 13'400 (1’424 / 1’424) 29.3 1.6 12'628 (1’342 / 1’342) 73.2 1.3 11'341 (1’205 / 2’262) 146.5 1.1 800 209.5 147 343.9 1'723.6 3.09 13'344 (1’418 / 1’418) 32.5 1.7 12'487 (1’327 / 1’327) 81.2 1.6 11'060 (1’175 / 2’262) 162.5 1.1 800 230.5 163 374.2 1'553.8 2.78 15'479 (1’645 / 1’645) 13.3 0.6 15'106 (1’605 / 1’605) 33.2 0.6 14'485 (1’539 / 2’554) 66.5 0.4 850 104.5 67 217.6 4'693.8 7.68 15'419 (1’638 / 1’638) 16.5 0.7 14'956 (1’589 / 1’589) 41.2 0.7 14'186 (1’507 / 2’554) 82.5 0.6 850 125.5 83 251.8 3'783.5 6.19 15'359 (1’632 / 1’632) 19.7 0.8 14'807 (1’573 / 1’573) 49.2 0.8 13'887 (1’476 / 2’554) 98.5 0.7 850 146.5 99 286.0 3'168.9 5.18 15'299 (1’626 / 1’626) 22.9 1.1 14'658 (1’557 / 1’557) 57.2 1.0 13'588 (1’444 / 2’554) 114.5 0.8 850 167.5 115 320.1 2'726.1 4.46 15'239 (1’619 / 1’619) 26.1 1.3 14'508 (1’542 / 1’542) 65.2 1.1 13'289 (1’412 / 2’554) 130.5 1.0 850 188.5 131 354.3 2'391.9 3.91 15'180 (1’613 / 1’613) 29.3 1.4 14'359 (1’526 / 1’526) 73.2 1.3 12'991 (1’380 / 2’554) 146.5 1.0 850 209.5 147 388.5 2'130.7 3.49 15'120 (1’606 / 1’606) 32.5 1.6 14'209 (1’510 / 1’510) 81.2 1.4 12'692 (1’349 / 2’554) 162.5 1.1 850 230.5 163 422.7 1'920.9 3.14 13'859 (1’841 / 1’841) 16.5 0.8 13'467 (1’789 / 1’789) 41.2 0.8 12'814 (1’702 / 2’863) 82.5 0.7 900 120.5 83 257.8 3'311.4 6.94 13'796 (1’832 / 1’832) 20.5 1.1 13'309 (1’768 / 1’768) 51.2 1.0 12'498 (1’660 / 2’863) 102.5 0.8 900 145.5 103 299.6 2'665.3 5.59 13'732 (1’824 / 1’824) 24.5 1.4 13'151 (1’747 / 1’747) 61.2 1.3 12'181 (1’618 / 2’863) 122.5 1.0 900 170.5 123 341.4 2'230.1 4.67 13'669 (1’815 / 1’815) 28.5 1.7 12'992 (1’725 / 1’725) 71.2 1.4 11'864 (1’576 / 2’863) 142.5 1.3 900 195.5 143 383.2 1'917.1 4.02 13'606 (1’807 / 1’807) 32.5 1.8 12'834 (1’704 / 1’704) 81.2 1.7 11'548 (1’534 / 2’863) 162.5 1.4 900 220.5 163 425.0 1'681.2 3.52 13'542 (1’799 / 1’799) 36.5 2.1 12'676 (1’683 / 1’683) 91.2 2.0 11'231 (1’492 / 2’863) 182.5 1.6 900 245.5 183 466.7 1'496.9 3.14 13'479 (1’790 / 1’790) 40.5 2.4 12'517 (1’662 / 1’662) 101.2 2.1 10'914 (1’450 / 2’863) 202.5 1.8 900 270.5 203 508.5 1'349.1 2.83
