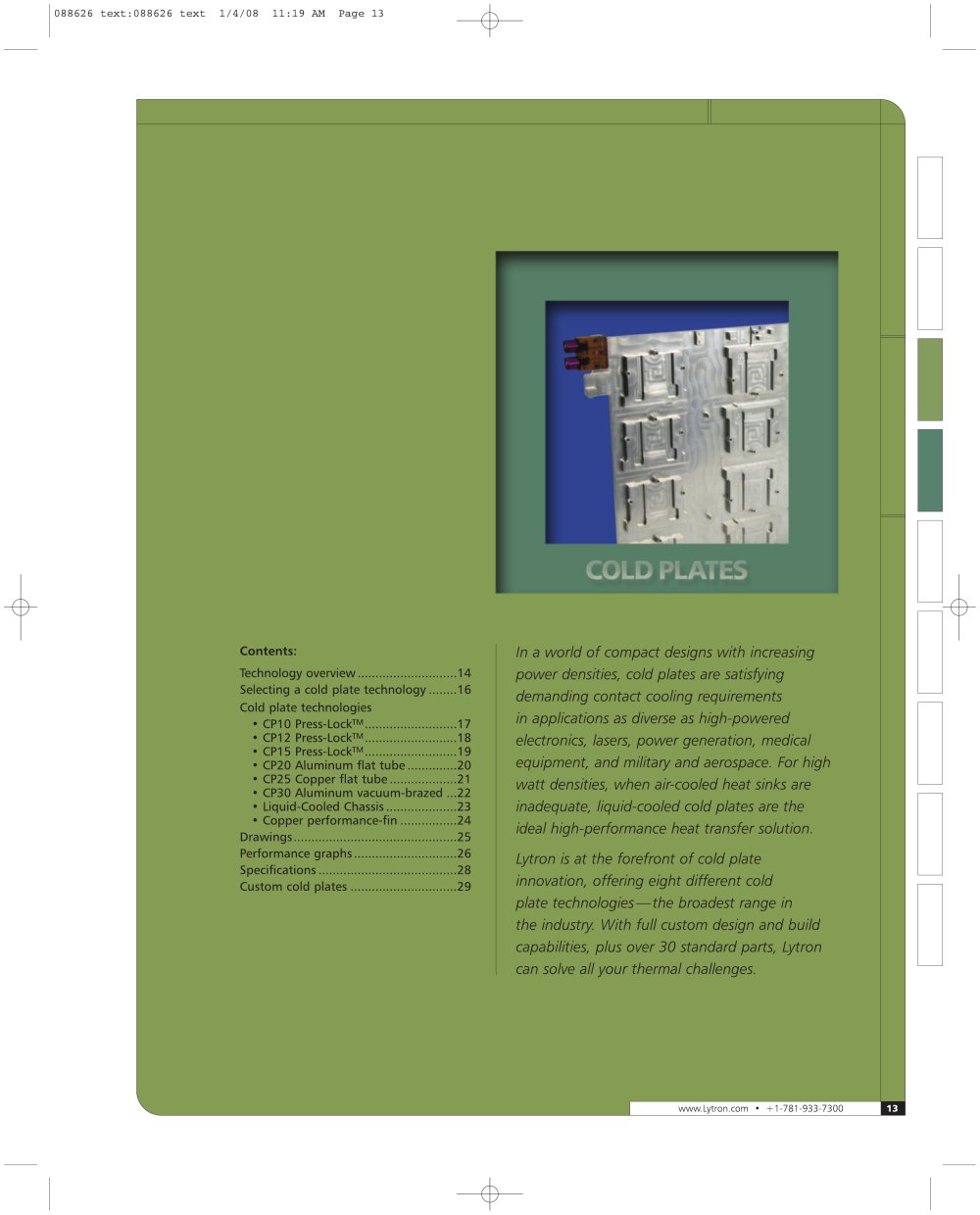

088626 text:088626 text 1/4/08 11:19 AM Page 13

COLD PLATES

In a world of compact designs with increasing power densities, cold plates are satisfying demanding contact cooling requirements in applications as diverse as high-powered electronics, lasers, power generation, medical equipment, and military and aerospace. For high watt densities, when air-cooled heat sinks are inadequate, liquid-cooled cold plates are the ideal high-performance heat transfer solution.

Lytron is at the forefront of cold plate innovation, offering eight different cold plate technologies—the broadest range in the industry. With full custom design and build capabilities, plus over 30 standard parts, Lytron can solve all your thermal challenges.

Contents:

Technology overview............................14

Selecting a cold plate technology........16

Cold plate technologies

• CP10 Press-Lock™..........................17

• CP12 Press-Lock™..........................18

• CP15 Press-Lock™..........................19

• CP20 Aluminum flat tube..............20

• CP25 Copper flat tube...................21

• CP30 Aluminum vacuum-brazed ...22

• Liquid-Cooled Chassis....................23

• Copper performance-fin................24

Drawings..............................................25

Performance graphs.............................26

Specifications.......................................28

Custom cold plates..............................29
