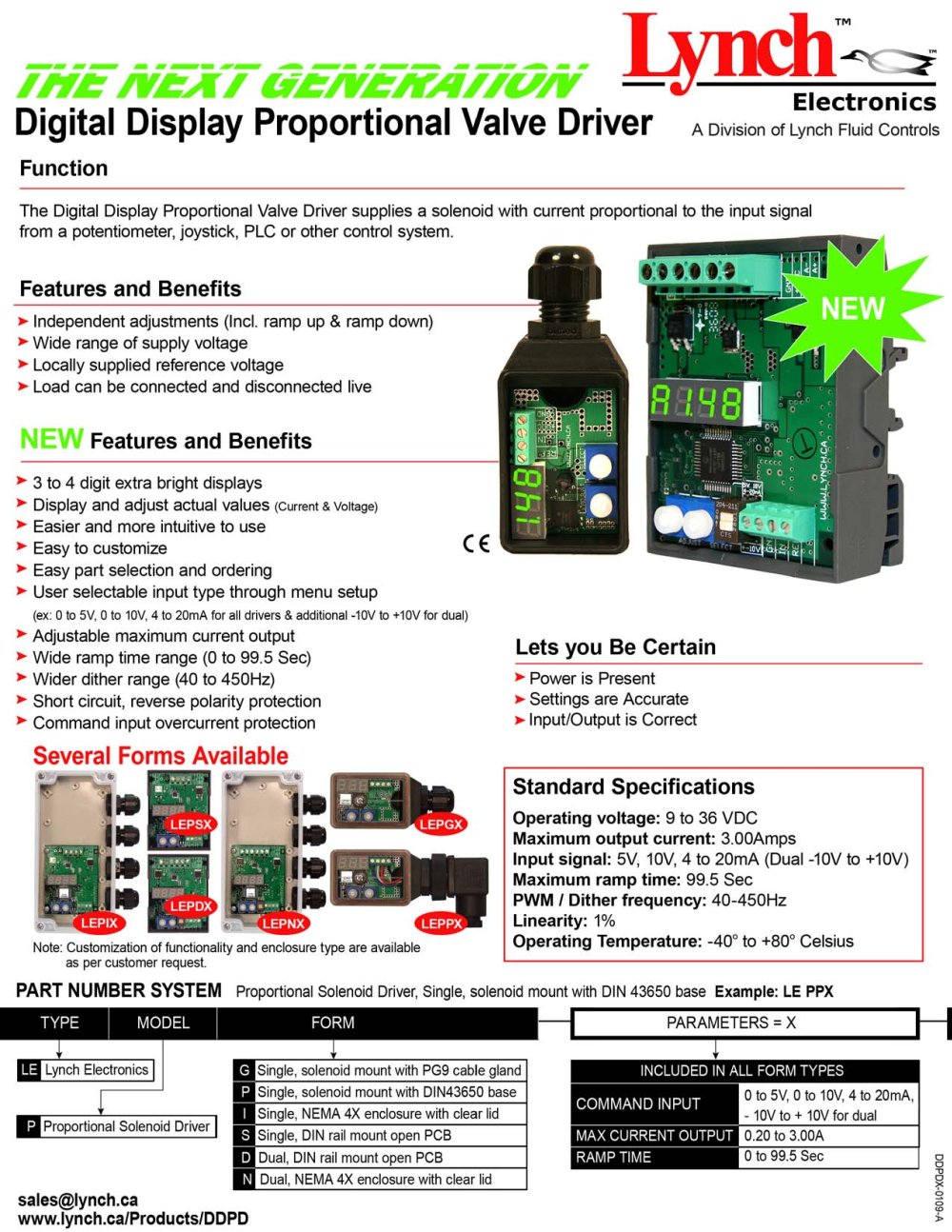

The Next Generation Digital Display Proportional Valve Driver (DDPDX) Overview - Lynch Fluid Controls Inc. - #1

Text version of the page

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } .font4 { font:44.00pt "Arial", sans-serif; } .font5 { font:46.00pt "Courier New", monospace; } .font6 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:17.00pt "Verdana", sans-serif; } .font8 { font:21.00pt "Verdana", sans-serif; } lyiieh iHt: iVEAf GEJVEf&IJftS/V - Electronics Digital Display Proportional Valve Driver A Division of Lynch Fluid Controls Function The Digital Display Proportional Valve Driver supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC or other control System. Features and Benefits ► Independent adjustments (Incl. ramp up & ramp down) ► Wide range of supply voltage ► Locally supplied référence voltage *» Load can be connected and disconnected live NEW Features and Benefits *• 3 to 4 digit extra bright displays *■ Display and adjust actual values (Current & voltage) *■ Easier and more intuitive to use *■ Easy to customize *• Easy part sélection and ordering ► User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA for ail drivers & additional -10V to +10V for dual) * Adjustable maximum current output ** Wide ramp time range (0 to 99.5 Sec) ► Wider dither range (40 to 450Hz) ► Short circuit, reverse polarity protection *» Command input overcurrent protection Lets you Be Certain ► Power is Présent ► Settings are Accurate ► Input/Output is Correct Several Forms Available >'--^ Standard Spécifications Operating voltage: 9 to 36 VDC Maximum output current: 3.00Amps Input signal: 5V, 10V, 4 to 20mA (Dual -10V to +10V) Maximum ramp time: 99.5 Sec PWM / Dither frequency: 40-450Hz Linearity: 1% Operating Température: -40° to +80° Celsius Note: Customization of functionality and enclosure type are available as per customer request. PART NUMBER SYSTEM Proportional Solenoid Driver, Single, solenoid mount with DIN 43650 base Example: LE PPX H PARAMETERS = X H TYPE MODEL FORM Lynch Electronics I INCLUDED IN ALL FORM TYPES COMMAND INPUT 0 to 5V, 0 to 10V, 4 to 20mA, - 10V to + 10V for dual MAX CURRENT OUTPUT 0.20 to 3.00A RAMP TIME 0 to 99.5 Sec o Single, solenoid mount with PG9 cable gland ISingle, solenoid mount with D1N43650 base I Proportional Solenoid Driver I Single, NEMA 4X enclosure with clear lid Single, DIN rail mount open PCB Dual, DIN rail mount open PCB Dual, NEMA 4X enclosure with clear lid sales@lynch.ca www.lynch.ca/Products/DDPD
