6.00.01
02/2002.A
Manifolds& Valve Packs
roduct Tips and Features
«o
_I
s: "to
|3 «o
H
LU I—
3
a. ea
«O
<o{°
LU h
3^
Ses
oa «_>
ID.__

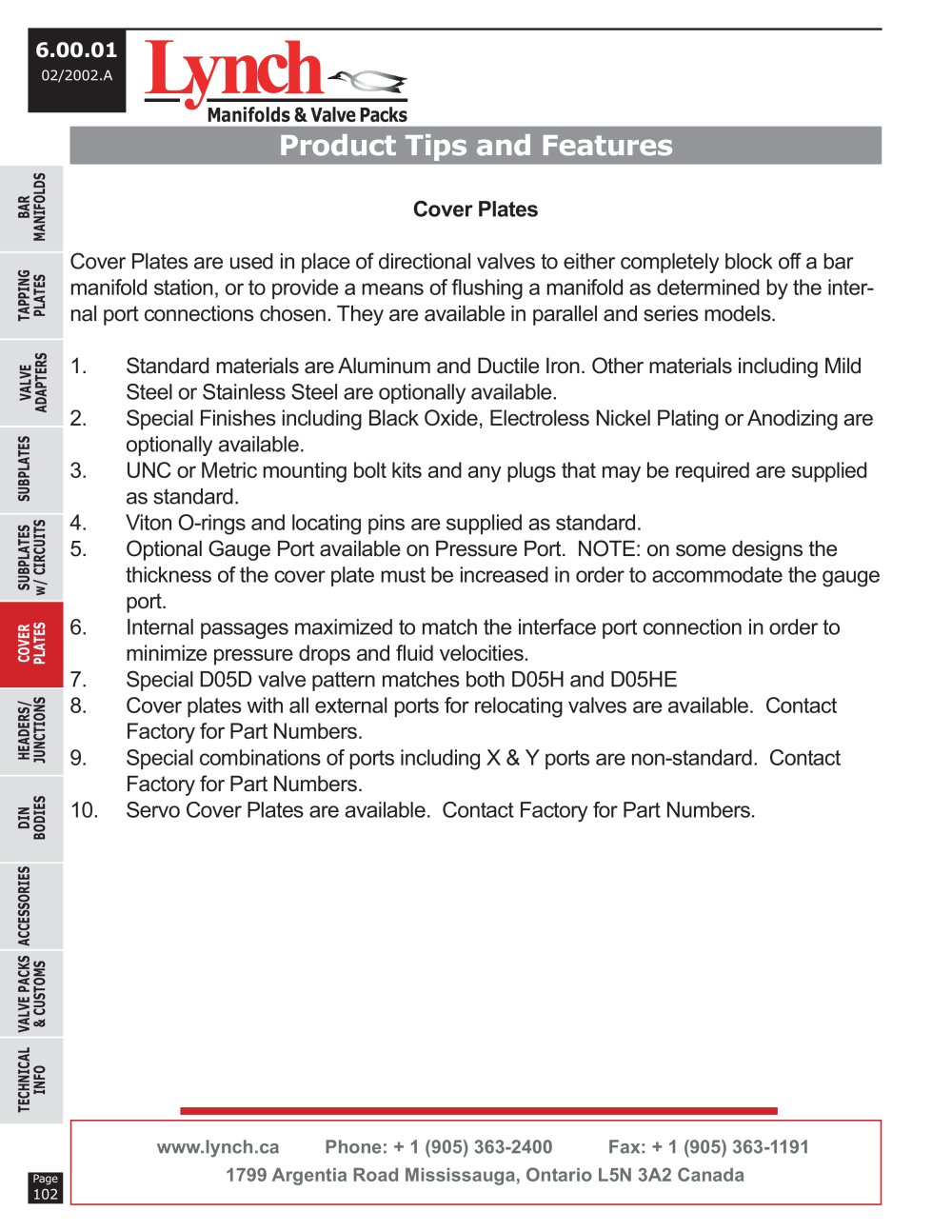

Cover Plates
Cover Plates are used in place of directional valves to either completely block off a bar
manifold station, or to provide a means of flushing a
manifold as determined by the inter-nal port connections chosen. They are available in parallel and series models.
1.
2.
3.
4. 5.
6.
7. 8.
Standard materials are Aluminum and Ductile Iron. Other materials including Mild Steel or Stainless Steel are optionally available.
Special Finishes including Black Oxide, Electroless Nickel Plating or Anodizing are optionally available.
UNC or Metric mounting bolt kits and any plugs that may be required are supplied as standard.
Viton O-rings and locating pins are supplied as standard.
Optional Gauge Port available on Pressure Port. NOTE: on some designs the
thickness of the cover plate must be increased in order to accommodate the gauge
port.
Internal passages maximized to match the interface port connection in order to
minimize pressure drops and fluid velocities.
Special D05D valve pattern matches both D05H and D05HE
Cover plates with all external ports for relocating valves are available. Contact
Factory for Part Numbers.
Special combinations of ports including X & Y ports are non-standard. Contact Factory for Part Numbers.
Servo Cover Plates are available. Contact Factory for Part Numbers.
__«O
C£ O
= 1
9.
zïï 10.
en
(O LU l—l C£ O (O (O LU l_>
<
(O
(O
s: o i—
(O
LU
c3
<
Ho
z
=c
«_> "
LU I—
www.lynch.ca Phone: + 1 (905) 363-2400 Fax: + 1 (905) 363-1191 1799 Argentia Road Mississauga, Ontario L5N 3A2 Canada
Page 102
