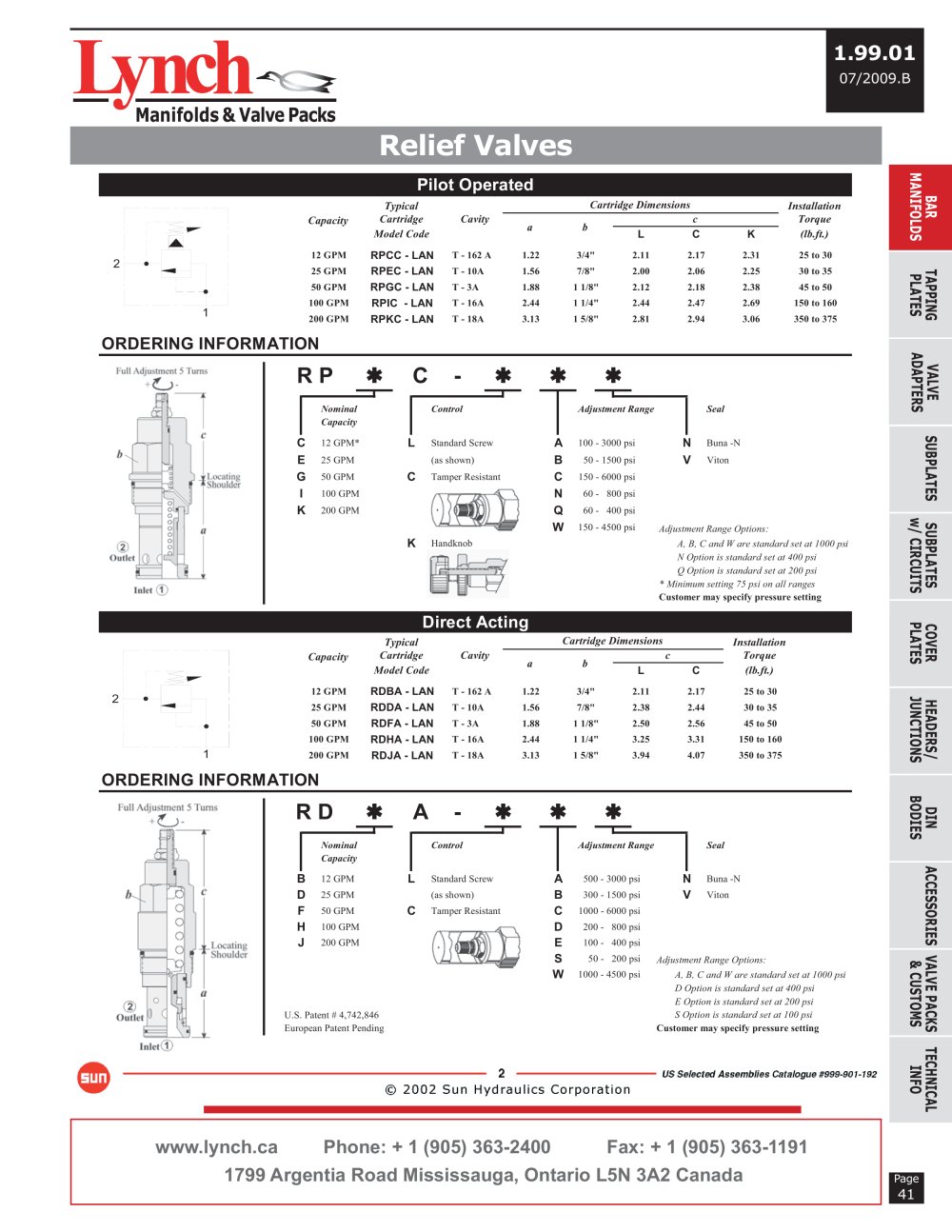

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:19.00pt "Arial", sans-serif; } .font9 { font:7.00pt "Courier New", monospace; } .font10 { font:4.00pt "Verdana", sans-serif; } .font11 { font:19.00pt "Verdana", sans-serif; } .font12 { font:43.00pt "Verdana", sans-serif; } Lynei 1.99.01 07/2009.B Manifolds & Valve Packs elief Valves 2 Pilot Operated n -n O i— S Typical Cartridge Dimensions Installation Capacity Cartridge Cavity c Torque Model Code a b L C K (lb.ft.) 12 GPM RPCC - LAN T - 162 A 1.22 3/4" 2.11 2.17 2.31 25 to 30 25 GPM RPEC - LAN T - 10A 1.56 7/8" 2.00 2.06 2.25 30 to 35 50 GPM RPGC - LAN T - 3A 1.88 1 1/8" 2.12 2.18 2.38 45 to 50 100 GPM RPIC - LAN T - 16A 2.44 1 1/4" 2.44 2.47 2.69 150 to 160 200 GPM RPKC - LAN T - 18A 3.13 1 5/8" 2.81 2.94 3.06 350 to 375 CD A — p- mm in S co TJ I— A —I m m d o oo ^3 I— Es m R en ?o im i—i m O ?o tn I—I ^ m tn A m tn m O TO h—I m tn *= — S —i -a A S m N ^ -n z A ■— ORDERING INFORMATION R P * C * * T " —i— Adjustment Range i A 100 - 3000 psi B 50 - 1500 psi C 150 - 6000 psi N 60 - 800 psi Q 60 - 400 psi W 150 - 4500 psi Seal r Nominal Capacity C 12 GPM* E 25 GPM G 50 GPM I 100 GPM K 200 GPM Control L Standard Screw (as shown) C Tamper Resistant N V Buna-N Viton Adjustment Range Options: A, B, C and W are standard set at 1000 psi N Option is standard set at 400 psi Q Option is standard set at 200psi * Minimum setting 75psi on ail ranges Customer may specify pressure setting K Handknob Direct Acting 2 Typical Cartridge Dimensions Installation Capacity Cartridge Cavity c Torque Model Code a b L C (lb.ft.) 12 GPM RDBA - LAN T - 162 A 1.22 3/4" 2.11 2.17 25 to 30 — 25 GPM RDDA - LAN T - 10A 1.56 7/8" 2.38 2.44 30 to 35 __ —< 50 GPM RDFA - LAN T - 3A 1.88 1 1/8" 2.50 2.56 45 to 50 100 GPM RDHA - LAN T - 16A 2.44 1 1/4" 3.25 3.31 150 to 160 ~1 200 GPM RDJA - LAN T - 18A 3.13 1 5/8" 3.94 4.07 350 to 375 ORDERING INFORMATION r Nominal Capacity B 12 GPM D 25 GPM F 50 GPM H 100 GPM J 200 GPM Control Adjustment Range Seal A 500 - 3000 psi N Buna -N B 300 - 1500 psi V Viton C 1000 - 6000 psi D 200 - 800 psi E 100 - 400 psi S 50 - 200 psi Adjustment Range Options: W 1000 - 4500 psi A, B, C and W are standard set at 1000 psi LStandard Screw (as shown) CTamper Resistant U.S. Patent # 4,742,846 European Patent Pending D Option is standard set at 400psi E Option is standard set at 200 psi S Option is standard set at 100 psi Customer may specify pressure setting ca Phone: + 1 (905) 363-2400 Fax: + 1 (905) 363-1191 ) Argentia Road Mississauga, Ontario L5N 3A2 Canada Page 41
