LyPore® 9700
1Pages

{{requestButtons}}

Catalog excerpts

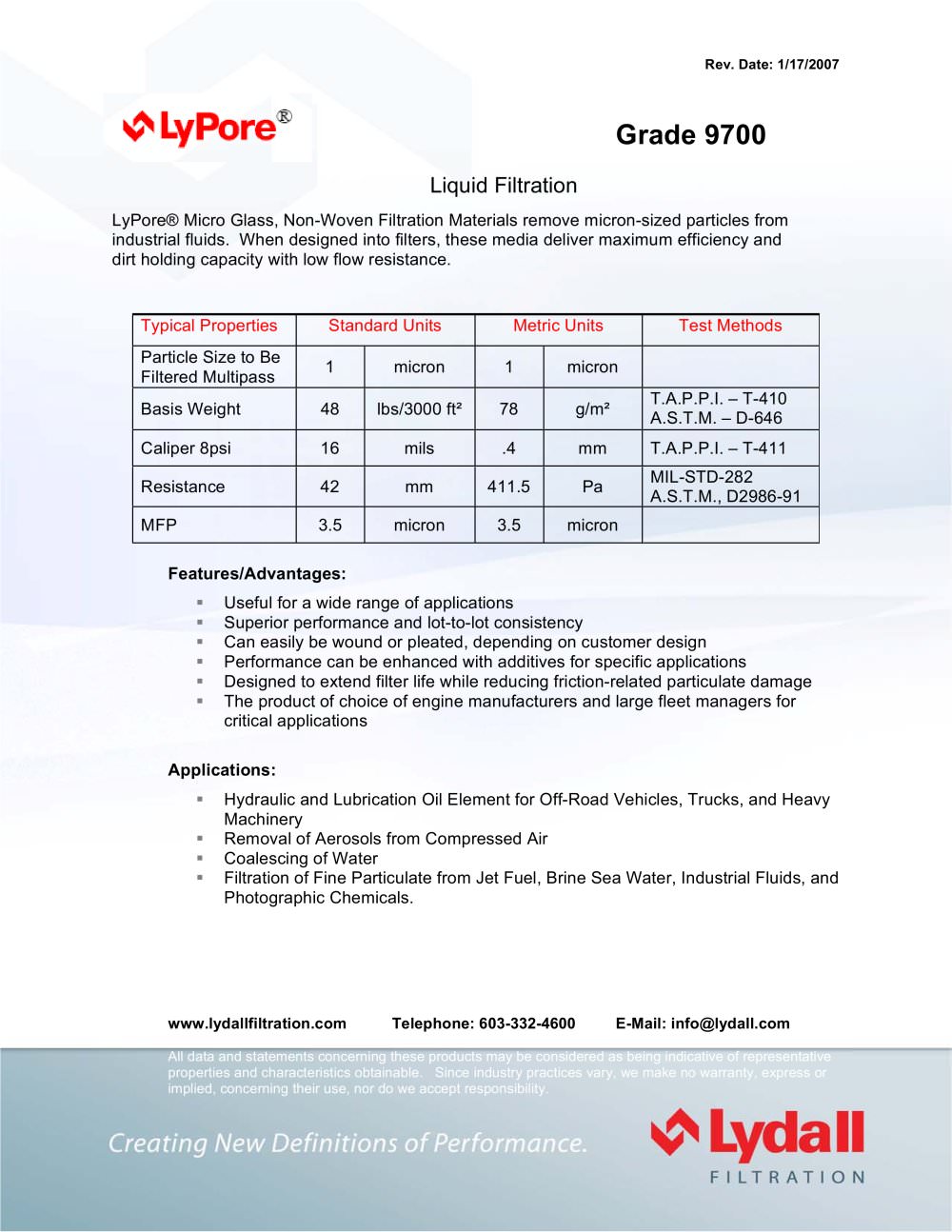

LyPore® 9700 - 1

LyPore Micro Glass, Non-Woven Filtration Materials remove micron-sized particles from industrial fluids. When designed into filters, these media deliver maximum efficiency and dirt holding capacity with low flow resistance. Typical Properties Standard Units Metric Units Test Methods Particle Size to Be Filtered Multipass 1 micron 1 micron Basis Weight 48 lbs/3000 ftβ 78 g/m T.A.P.P.I. Җ T-410 A.S.T.M. D-646 Caliper 8psi 16 mils .4 mm T.A.P.P.I. ֖ T-411 Resistance 42 mm 411.5 Pa MIL-STD-282 A.S.T.M., D2986-91 MFP 3.5 micron 3.5 micron Features/Advantages: Useful for a wide range of applications à Superior performance and lot-to-lot consistency Can easily be wound or pleated, depending on customer design à Performance can be enhanced with additives for specific applications Designed to extend filter life while reducing friction-related particulate damage à The product of choice of engine manufacturers and large fleet managers for critical applications Applications: Hydraulic and Lubrication Oil Element for Off-Road Vehicles, Trucks, and Heavy Machinery à Removal of Aerosols from Compressed Air Coalescing of Water à Filtration of Fine Particulate from Jet Fuel, Brine Sea Water, Industrial Fluids, and Photographic Chemicals. > www.lydallfiltration.com Telephone: 603-332-4600 E-Mail: info@lydall.com All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility. size="-2">

Open the catalog to page 1
