Rev. Date: 05/14/2008

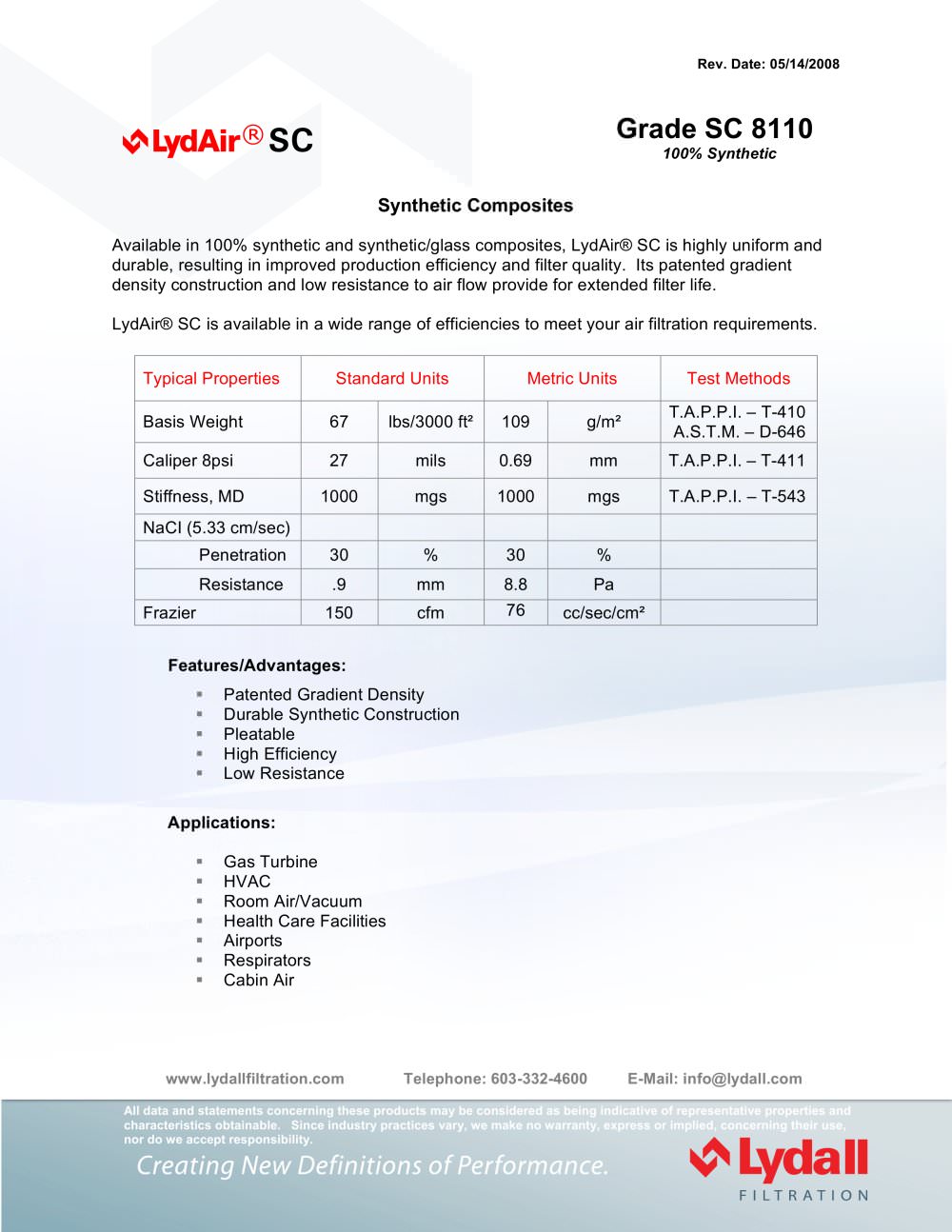

LydAir® SC SC 8110 - 56537 N

®

SC

Grade SC 8110

100% Synthetic

Synthetic Composites

Available in 100% synthetic and synthetic/glass composites, LydAir® SC is highly uniform and durable, resulting in improved production efficiency and filter quality. Its patented gradient density construction and low resistance to air flow provide for extended filter life. LydAir® SC is available in a wide range of efficiencies to meet your air filtration requirements. Typical Properties Standard Units Metric Units Test Methods Basis Weight 67 lbs/3000 ft² 109 g/m² T.A.P.P.I. – T-410 A.S.T.M. – D-646 Caliper 8psi 27 mils 0.69 mm T.A.P.P.I. – T-411 Stiffness, MD 1000 mgs 1000 mgs T.A.P.P.I. – T-543 NaCI (5.33 cm/sec) Penetration 30 % 30 % Resistance .9 mm 8.8 Pa Frazier 150 cfm 76cc/sec/cm² Features/Advantages: Patented Gradient Density Durable Synthetic Construction Pleatable High Efficiency Low Resistance Applications: Gas Turbine HVAC Room Air/Vacuum Health Care Facilities Airports Respirators Cabin Air
www.lydallfiltration.com Telephone: 603-332-4600 E-Mail: info@lydall.com All data and statements concerning these products may be considered as being indicative of representative properties and characteristics obtainable. Since industry practices vary, we make no warranty, express or implied, concerning their use, nor do we accept responsibility.
