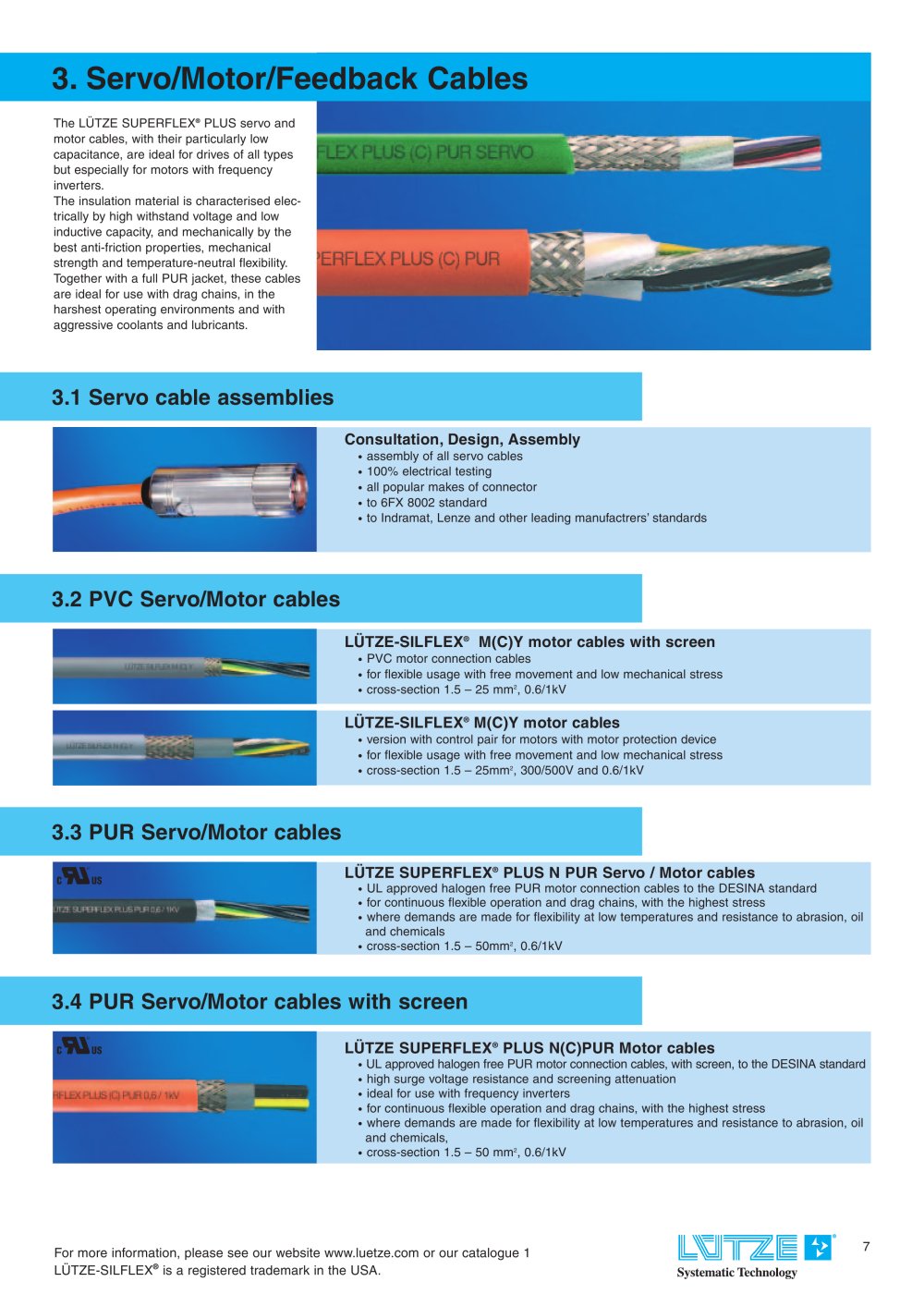

3.Servo/Motor/Feedback Cables
The LÜTZE SUPERFLEX
® PLUS servo andmotor cables, with their particularly low
capacitance, are ideal for drives of all types
but especially for motors with
frequency inverters.
The insulation material is characterised elec-
trically by high withstand voltage and low
inductive capacity, and mechanically by the
best anti-friction properties, mechanical
strength and temperature-neutral flexibility.
Together with a full PUR jacket, these cables
are ideal for use with
drag chains, in the
harshest operating environments and with
aggressive coolants and lubricants.
Consultation,Design,Assembly
• assembly of all servo cables
• 100%
electrical testing • all popular makes of connector
• to 6FX 8002 standard
• to Indramat, Lenze and other leading manufactrers’standards
3.2 PVC Servo/Motor cables
LÜTZE-SILFLEX
® M(C)Y motor cables with screen
• PVC motor connection cables
• for flexible usage with free movement and low mechanical stress
• cross-section 1.5 – 25 mm
2 , 0.6/1kV
LÜTZE-SILFLEX
® M(C)Y motor cables
• version with control pair for motors with motor
protection device • for flexible usage with free movement and low mechanical stress
• cross-section 1.5 – 25mm
2 , 300/500V and 0.6/1kV
3.3 PUR Servo/Motor cables
LÜTZE SUPERFLEX
® PLUS N PUR Servo / Motor cables
• UL approved halogen free PUR motor connection cables to the DESINA standard
• for continuous flexible operation and drag
industrial chains, with the highest stress
• where demands are made for flexibility at low temperatures and resistance to abrasion, oil and chemicals
• cross-section 1.5 – 50mm
2 , 0.6/1kV
3.4 PUR Servo/Motor cables with screen
LÜTZE SUPERFLEX
® PLUS N(C)PUR Motor cables
• UL approved halogen free PUR motor connection cables, with screen, to the DESINA standard
• high surge voltage resistance and screening attenuation
• ideal for use with frequency inverters
• for continuous flexible operation and drag chains, with the highest stress
• where demands are made for flexibility at low temperatures and resistance to abrasion, oil and chemicals,
• cross-section 1.5 – 50 mm
2 , 0.6/1kV
R For more information, please see our website www.luetze.com or our catalogue 1LÜTZE-SILFLEX
® is a registered trademark in the USA.7
