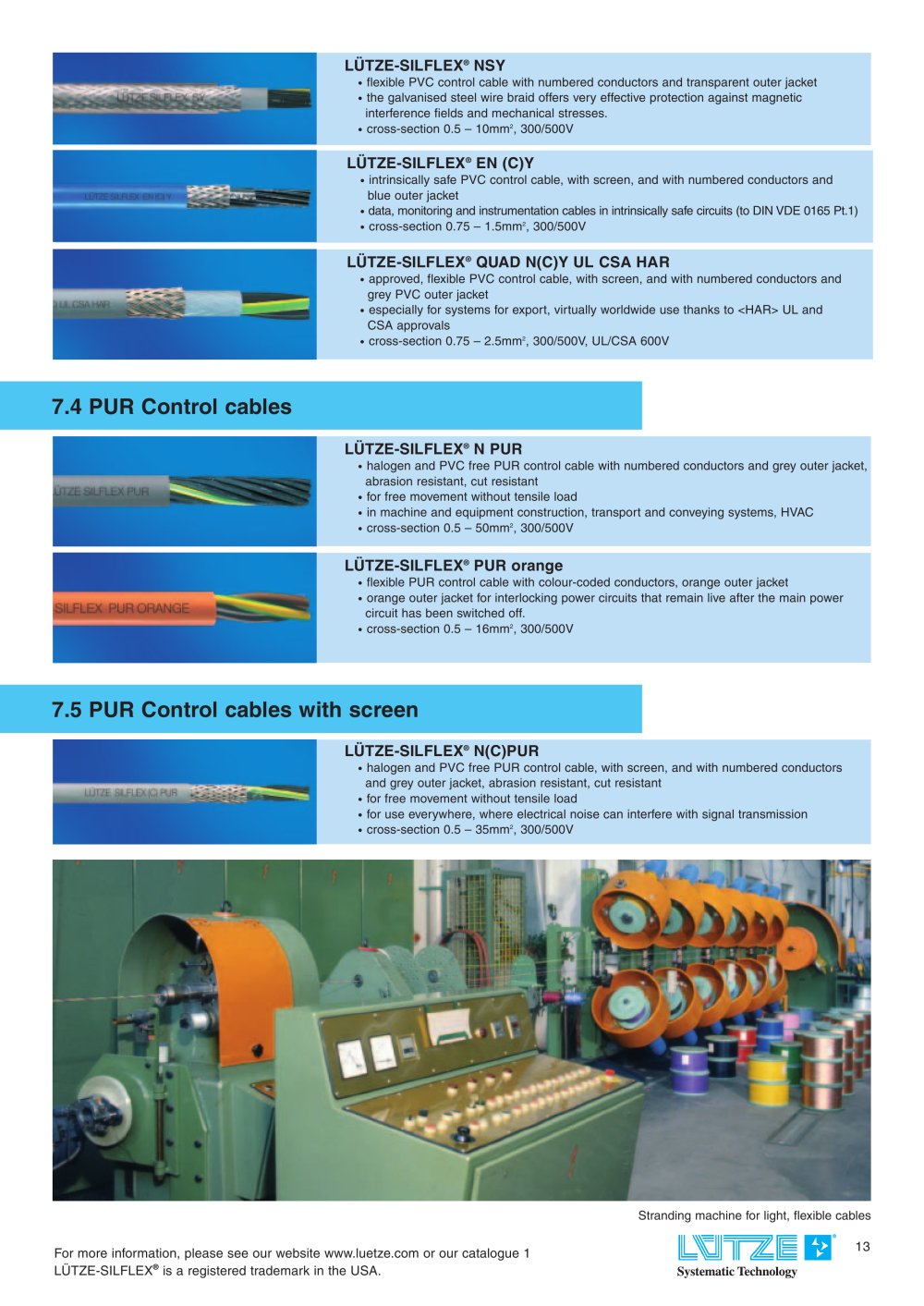

LÜTZE-SILFLEX
® NSY
• flexible PVC control cable with numbered conductors and transparent outer jacket
• the galvanised steel wire braid offers very effective protection against magnetic interference fields and mechanical stresses.
• cross-section 0.5 – 10mm
2 , 300/500V
LÜTZE-SILFLEX
® EN (C)Y
• intrinsically safe PVC control cable, with screen, and with numbered conductors and blue outer jacket
• data, monitoring and instrumentation cables in intrinsically safe circuits (to DIN VDE 0165 Pt.1)
• cross-section 0.75 – 1.5mm
2 , 300/500V
LÜTZE-SILFLEX
® QUAD N(C)Y UL CSA HAR
• approved, flexible PVC control cable, with screen, and with numbered conductors and grey PVC outer jacket
• especially for systems for export, virtually worldwide use thanks to
UL and CSA approvals
• cross-section 0.75 – 2.5mm
2 , 300/500V, UL/CSA 600V
7.4 PUR Control cables
LÜTZE-SILFLEX
® N PUR
• halogen and PVC free PUR control cable with numbered conductors and grey outer jacket, abrasion resistant, cut resistant
• for free movement without tensile load
• in machine and equipment construction, transport and conveying systems, HVAC
• cross-section 0.5 – 50mm
2 , 300/500V
LÜTZE-SILFLEX
® PUR orange
• flexible PUR control cable with colour-coded conductors, orange outer jacket
• orange outer jacket for interlocking power circuits that remain live after the main power circuit has been switched off.
• cross-section 0.5 – 16mm
2 , 300/500V
7.5 PUR Control cables with screen
LÜTZE-SILFLEX
® N(C)PUR
• halogen and PVC free PUR control cable, with screen, and with numbered conductors and grey outer jacket, abrasion resistant, cut resistant
• for free movement without tensile load
• for use everywhere, where electrical noise can interfere with signal transmission
• cross-section 0.5 – 35mm
2 , 300/500V Stranding machine for light, flexible cables
R For more information, please see our website www.luetze.com or our catalogue 1LÜTZE-SILFLEX 13
® is a registered trademark in the USA.
