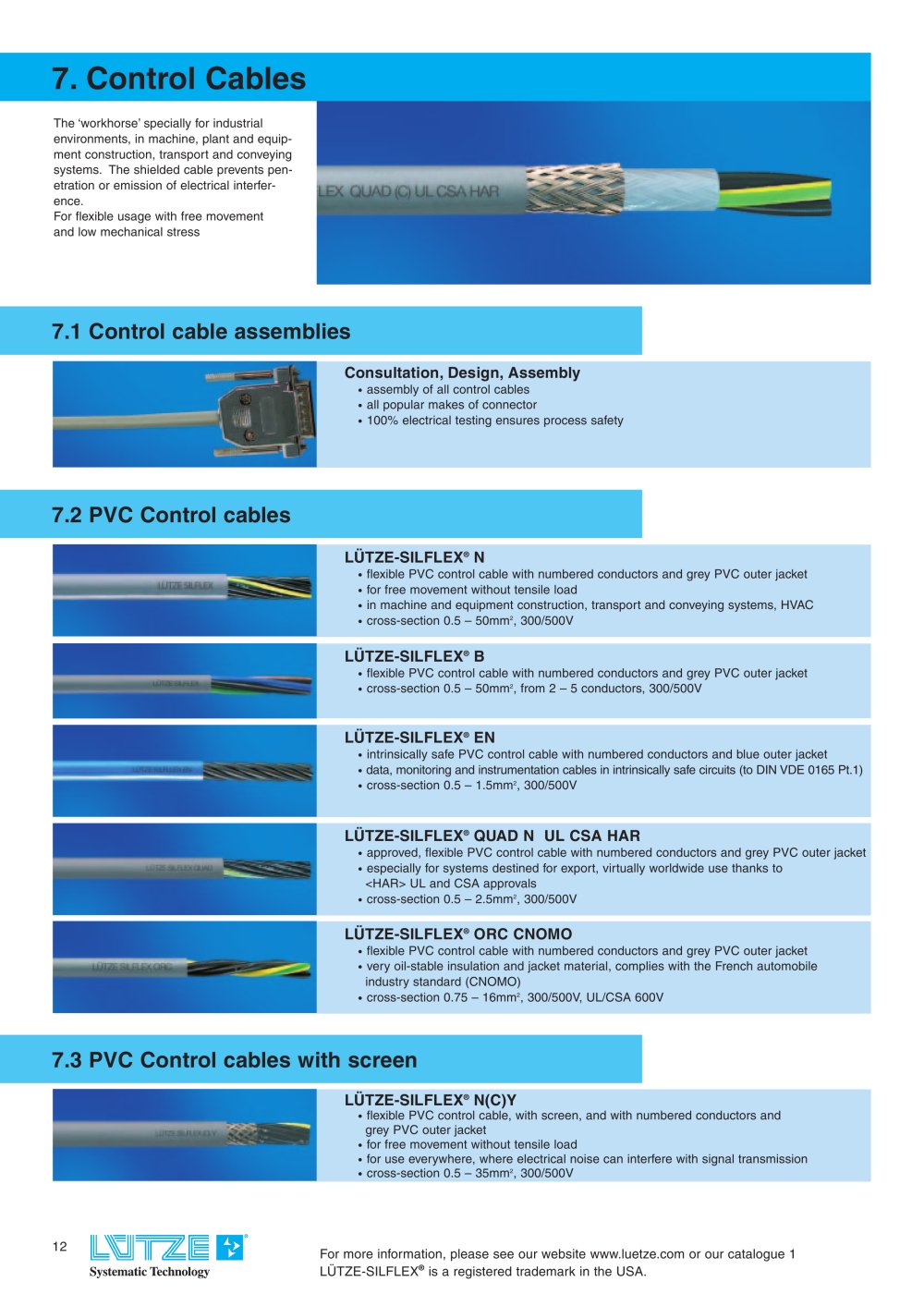

7.Control Cables
The ‘workhorse’specially for industrialenvironments, in machine, plant and equip-
ment construction, transport and
conveying
systems.The shielded cable prevents pen-
etration or emission of electrical interfer-
ence.
For flexible usage with free movement and low mechanical stress
Consultation,Design,Assembly
• assembly of all control cables
• all popular makes of connector
• 100%
electrical testing ensures process safety
7.2 PVC Control cables
LÜTZE-SILFLEX
® N
• flexible PVC control cable with numbered conductors and grey PVC outer jacket
• for free movement without tensile load
• in machine and equipment construction, transport and conveying systems, HVAC
• cross-section 0.5 – 50mm
2 , 300/500V
LÜTZE-SILFLEX
® B
• flexible PVC control cable with numbered conductors and grey PVC outer jacket
• cross-section 0.5 – 50mm
2 , from 2 – 5 conductors, 300/500V
LÜTZE-SILFLEX
® EN
• intrinsically safe PVC control cable with numbered conductors and blue outer jacket
• data, monitoring and instrumentation cables in intrinsically safe circuits (to DIN VDE 0165 Pt.1)
• cross-section 0.5 – 1.5mm
2 , 300/500V
LÜTZE-SILFLEX
® QUAD N UL CSA HAR
• approved, flexible PVC control cable with numbered conductors and grey PVC outer jacket
• especially for systems destined for export, virtually worldwide use thanks to
UL and CSA approvals
• cross-section 0.5 – 2.5mm
2 , 300/500V
LÜTZE-SILFLEX
® ORC CNOMO
• flexible PVC control cable with numbered conductors and grey PVC outer jacket
• very oil-stable insulation and jacket material, complies with the French automobile industry standard (CNOMO)
• cross-section 0.75 – 16mm
2 , 300/500V, UL/CSA 600V
7.3 PVC Control cables with screen
LÜTZE-SILFLEX
® N(C)Y
• flexible PVC control cable, with screen, and with numbered conductors and grey PVC outer jacket
• for free movement without tensile load
• for use everywhere, where electrical noise can interfere with signal transmission
• cross-section 0.5 – 35mm
2 , 300/500V
R 12 For more information, please see our website www.luetze.com or our catalogue 1LÜTZE-SILFLEX
® is a registered trademark in the USA.
