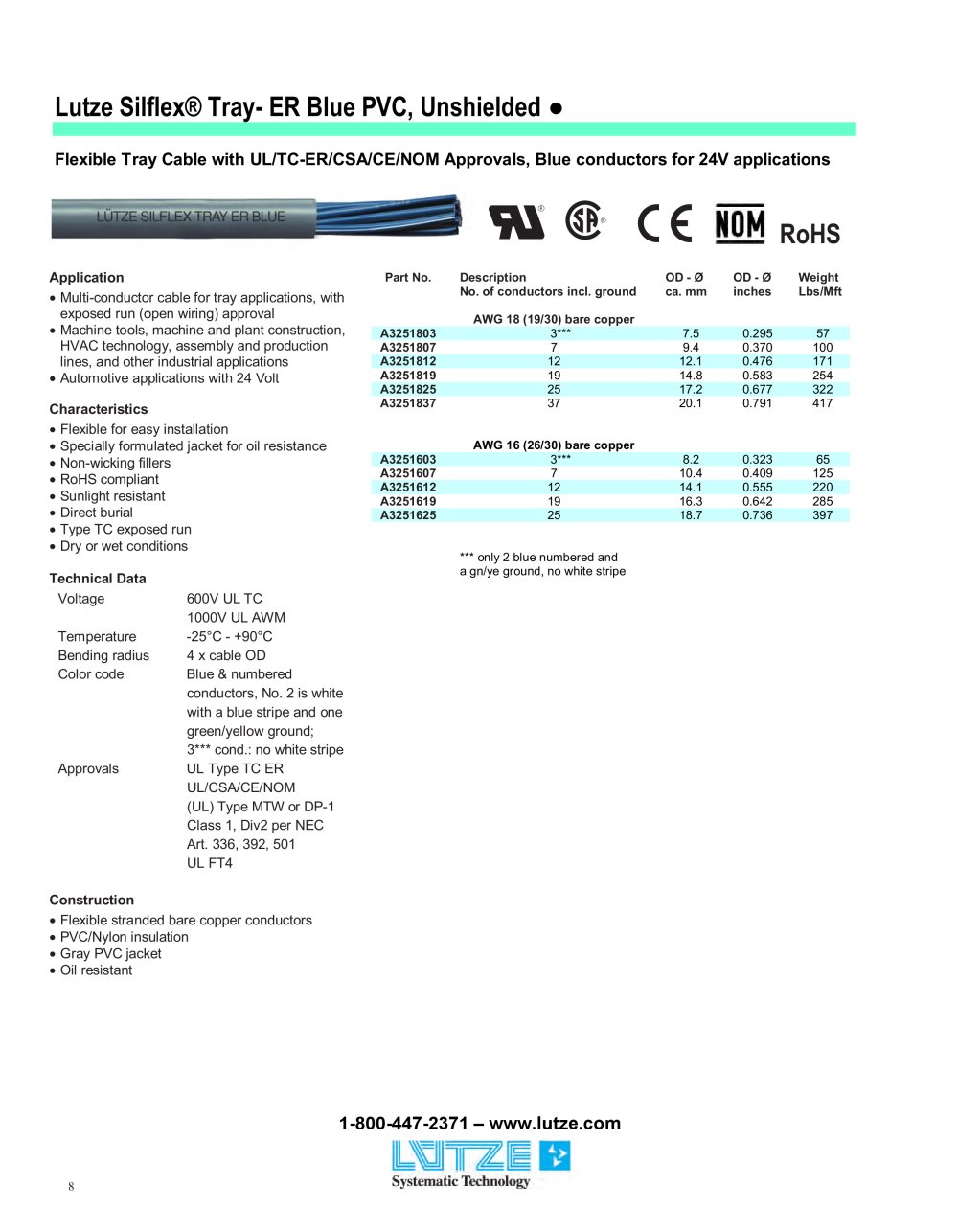

Lutze Silflex® Tray- ER Blue PVC, Unshielded Æ•

Flexible Tray Cable with UL/TC-ER/CSA/CE/NOMApprovals, Blue conductors for 24Vapplications

RoHS

Application
PartNo.DescriptionOD - Ø OD - Ø WeightNo. of conductorsincl. ground ca. mminchesLbs/Mft • Multi-conductor cable for trayapplications,withexposed run (open wiring) approval • Machine tools,machine and plant construction,HVAC technology, assemblyand productionlines, and otherindustrial applications
A3251803A3251807 3*** 7 7.5 9.4 0.295 0.370 57100 A3251812A3251819 1219 12.1 14.8 0.476 0.583 171 254 • Automotive applications with 24 Volt
A3251825A3251837 2537 17.2 20.1 0.677 0.791 322 417 Characteristics • Flexible for easy installation • Specially formulatedjacket foroil resistance
AWG 16 (26/30) bare copper • Non-wicking fillers
A3251603 A3251607 3*** 7 8.2 10.4 0.323 0.409 65125 • RoHS compliant • Sunlight resistant
A3251612A3251619 1219 14.1 16.3 0.555 0.642 220 285 • Direct burial
A3251625 AWG 18 (19/30) bare copper 25*** only2 bluenumbered anda gn/ye ground, nowhite stripe 18.7 0.736 397 • Type TC exposed run • Dry or wet conditions Technical Data Voltage600V UL TC1000V UL AWMTemperature-25°C - +90°C Bending radius 4 x cable ODColor codeBlue & numberedconductors, No. 2 is whitewith a blue stripe and onegreen/yellow ground;3*** cond.:no white stripeApprovalsUL Type TC ERUL/CSA/CE/NOM (UL) Type MTWor DP-1Class 1, Div2 per NEC Art. 336, 392,501 UL FT4 Construction • Flexible stranded bare copper conductors • PVC/Nylon insulation • Gray PVC jacket • Oil resistant

1-800-447-2371 – www.lutze.com
