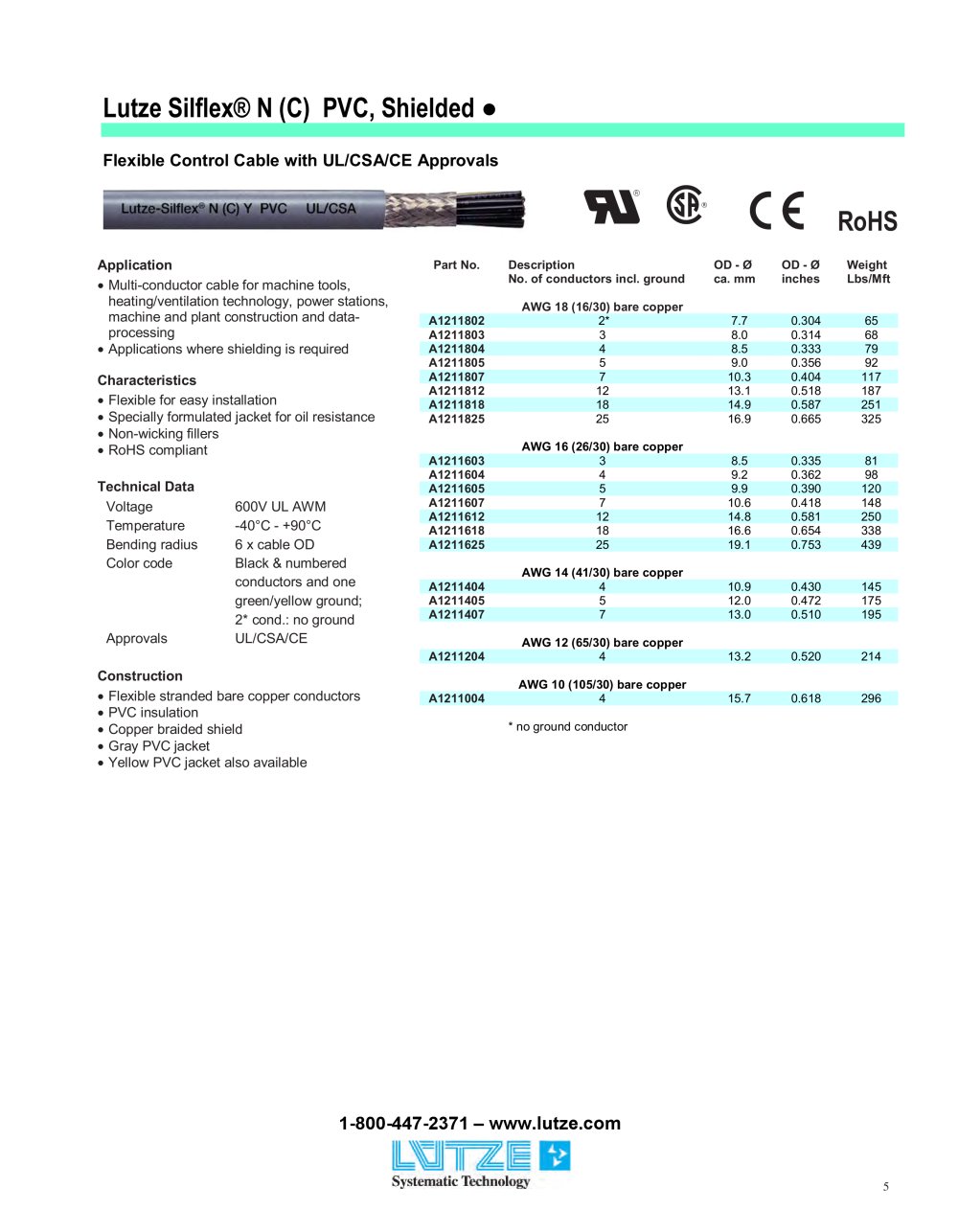

| | | Lutze Silflex® N (C) PVC, Shielded • | | |
| | | |
| | | Flexible Control Cable with UL/CSA/CE Approvals | | |
| | | |
| | | RoHS | | |
| | | |
| | | | | | | | | | | | | Part No. | Description | OD - 0 | OD - 0 | Weight | | | | | No. of conductors incl. ground | ca. mm | inches | Lbs/Mft | | | | | AWG 18 (16/30) bare copper | | | | | | | A1211802 | 2* | 7.7 | 0.304 | 65 | | | | A1211803 | 3 | 8.0 | 0.314 | 68 | | | | A1211804 | 4 | 8.5 | 0.333 | 79 | | | | A1211805 | 5 | 9.0 | 0.356 | 92 | | | | A1211807 | 7 | 10.3 | 0.404 | 117 | | | | A1211812 | 12 | 13.1 | 0.518 | 187 | | | | A1211818 | 18 | 14.9 | 0.587 | 251 | | | | A1211825 | 25 | 16.9 | 0.665 | 325 | | | | | AWG 16 (26/30) bare copper | | | | | | | A1211603 | 3 | 8.5 | 0.335 | 81 | | | | A1211604 | 4 | 9.2 | 0.362 | 98 | | | | A1211605 | 5 | 9.9 | 0.390 | 120 | | | | A1211607 | 7 | 10.6 | 0.418 | 148 | | | | A1211612 | 12 | 14.8 | 0.581 | 250 | | | | A1211618 | 18 | 16.6 | 0.654 | 338 | | | | A1211625 | 25 | 19.1 | 0.753 | 439 | | | | AWG 14 (41/30) bare copper | | | | A1211404 | 4 | 10.9 | 0.430 | 145 | | | | A1211405 | 5 | 12.0 | 0.472 | 175 | | | | A1211407 | 7 | 13.0 | 0.510 | 195 | | | | AWG 12 (65/30) bare copper | | | | A1211204 | 4 | 13.2 | 0.520 | 214 | | | | AWG 10 (105/30) bare copper | | | | A1211004 | 4 | 15.7 | 0.618 | 296 | | | | | | | | | | | | |
| | | Application • Multi-conductor cable for machine tools, heating/ventilation technology, power stations, machine and plant construction and data-processing • Applications where shielding is required Characteristics • Flexible for easy installation • Specially formulated jacket for oil resistance • RoHS compliant | | |
| | | |
| | | Technical Data Voltage Temperature Bending radius Color code | | |
| | | 600V UL AWM -40°C - +90°C 6 x cable OD Black & numbered conductors and one green/yellow ground; 2* cond.: no ground UL/CSA/CE | | |
| | | |
| | | Approvals | | |
| | | |
| | | |
| | | Construction • Flexible stranded bare copper conductors | | |
| | | |
| | | |
| | | • PVC insulation
| |
| | | |
| | | no ground conductor | | |
| | | • | | | |
| | | Copper braided shield Gray PVC jacket Yellow PVC jacket also available | |
| | | |
| | | |
| | | 1-800-447-2371 - www.lutze.com LUTZEH | | |
| | | |
| | | 5 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
