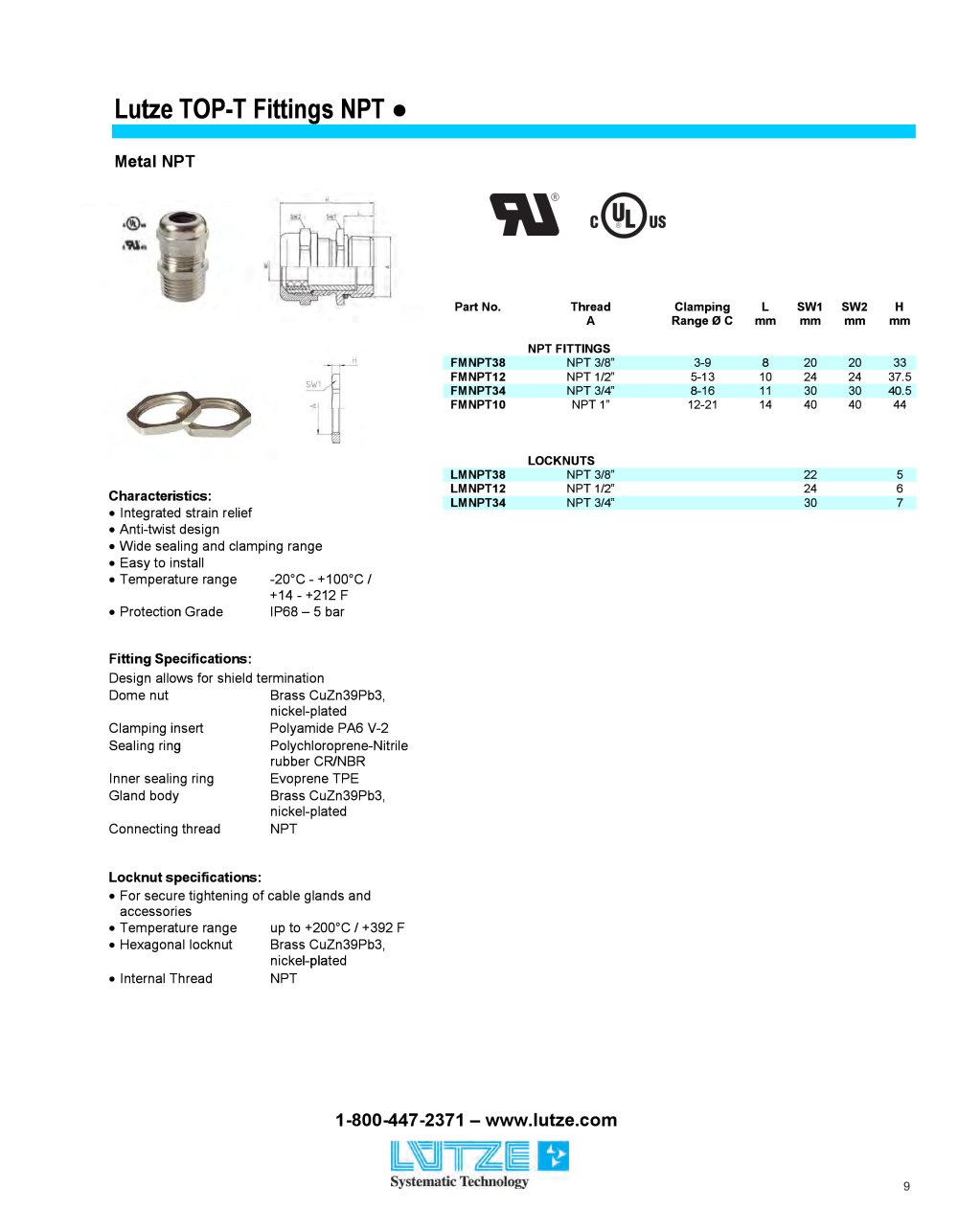

Lutze TOP-T Fittings NPT
Metal NPT
us
Part No.
Thread
Clamping
L
SW1
SW2
H
A
Range 0 C
mm
mm
mm
mm
NPT FITTINGS
FMNPT38
NPT 3/8"
3-9
8
20
20
33
FMNPT12
NPT 1/2"
5-13
10
24
24
37.5
FMNPT34
NPT 3/4"
8-16
11
30
30
40.5
FMNPT10
NPT 1"
12-21
14
40
40
44
LOCKNUTS
LMNPT38
NPT 3/8"
22
LO
LMNPT12
NPT 1/2"
24
6
LMNPT34
NPT 3/4"
30
7
Characteristics:
• Integrated strain relief
• Anti-twist design
• Wide sealing and clamping range
• Easy to install
• Temperature range -20°C - +100°C /
+ 14 - +212 F
• Protection Grade IP68 - 5 bar
Fitting Specifications:
Design allows for shield termination
Dome nut Brass CuZn39Pb3,
nickel-plated Clamping insert Polyamide PA6 V-2
Sealing ring Polychloroprene-Nitrile
rubber CR/NBR Inner sealing ring Evoprene TPE
Gland body Brass CuZn39Pb3,
nickel-plated Connecting thread NPT
Locknut specifications:
• For secure tightening of cable glands and accessories
• Temperature range up to +200°C / +392 F
• Hexagonal locknut Brass CuZn39Pb3,
nickel-plated
• Internal Thread NPT
