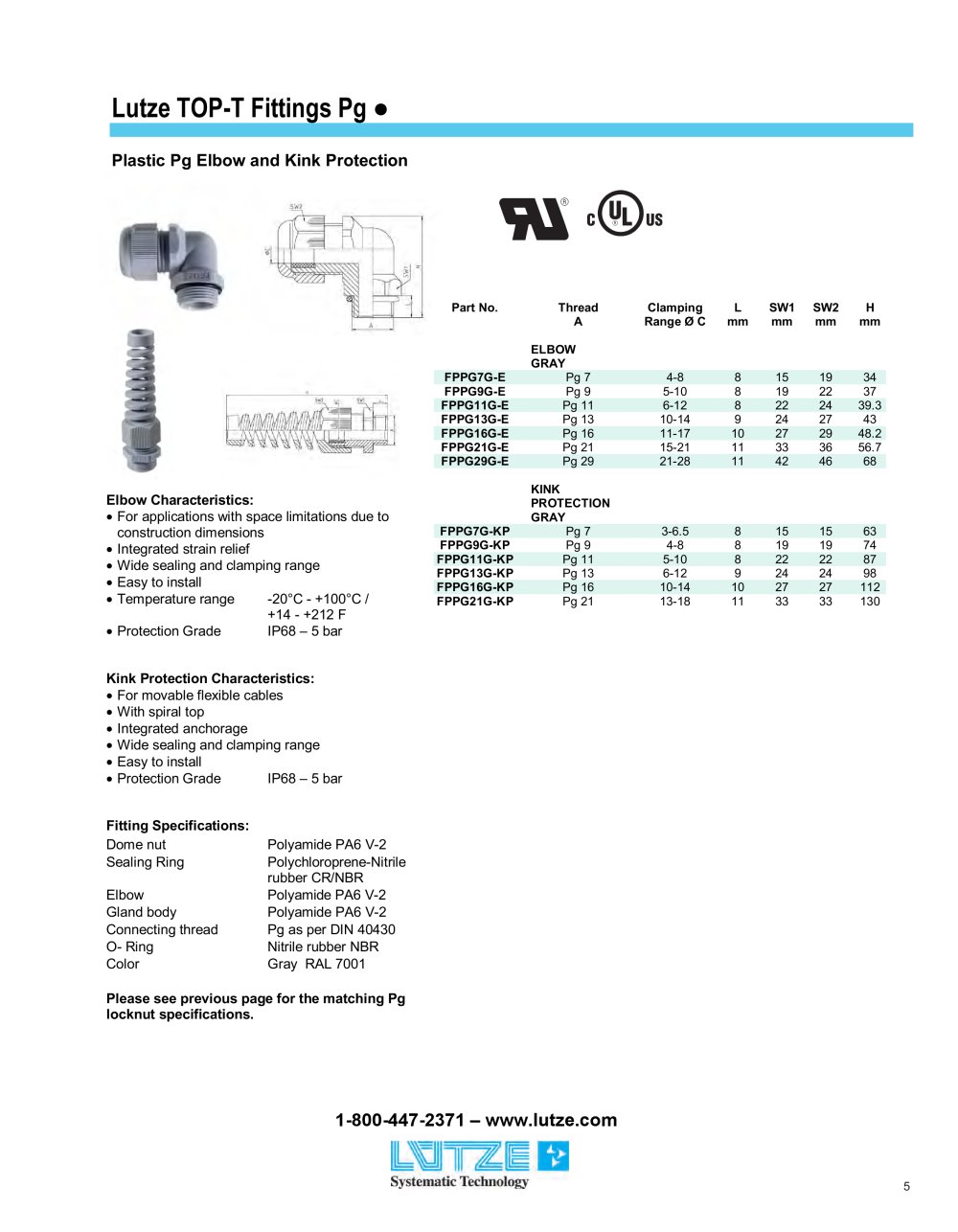

Lutze TOP-T Fittings Pg •
Plastic Pg Elbow and Kink Protection
US
Part No.
Thread A
Clamping L SW1 SW2 H Range 0 C mm mm mm mm
ELBOW GRAY
FPPG7G-E
Pg 7
4-8
8
15
19
34
FPPG9G-E
Pg 9
5-10
8
19
22
37
FPPG11G-E
Pg 11
6-12
8
22
24
39.3
FPPG13G-E
Pg 13
10-14
9
24
27
43
FPPG16G-E
Pg 16
11-17
10
27
29
48.2
FPPG21G-E
Pg 21
15-21
11
33
36
56.7
FPPG29G-E
Pg 29
21-28
11
42
46
68
KINK
PROTECTION
GRAY
FPPG7G-KP
Pg 7
3-6.5
8
15
15
63
FPPG9G-KP
Pg 9
4-8
8
19
19
74
FPPG11G-KP
Pg 11
5-10
8
22
22
87
FPPG13G-KP
Pg 13
6-12
9
24
24
98
FPPG16G-KP
Pg 16
10-14
10
27
27
112
FPPG21G-KP
Pg 21
13-18
11
33
33
130
Elbow Characteristics:
• For applications with space limitations due to construction dimensions
• Integrated strain relief
• Wide sealing and clamping range
• Easy to install
• Temperature range -20°C - +100°C /
+14 -+212 F
• Protection Grade IP68 - 5 bar
Kink Protection Characteristics:
• For movable flexible cables
• With spiral top
• Integrated anchorage
• Wide sealing and clamping range
• Easy to install
• Protection Grade IP68 - 5 bar
Fitting Specifications:
Dome nut Sealing Ring
Elbow Gland body Connecting thread O- Ring Color
Polyamide PA6 V-2 Polychloroprene-Nitrile rubber CR/NBR Polyamide PA6 V-2 Polyamide PA6 V-2 Pg as per DIN 40430 Nitrile rubber NBR
Gray RAL 7001
Please see previous page for the matching Pg locknut specifications.
