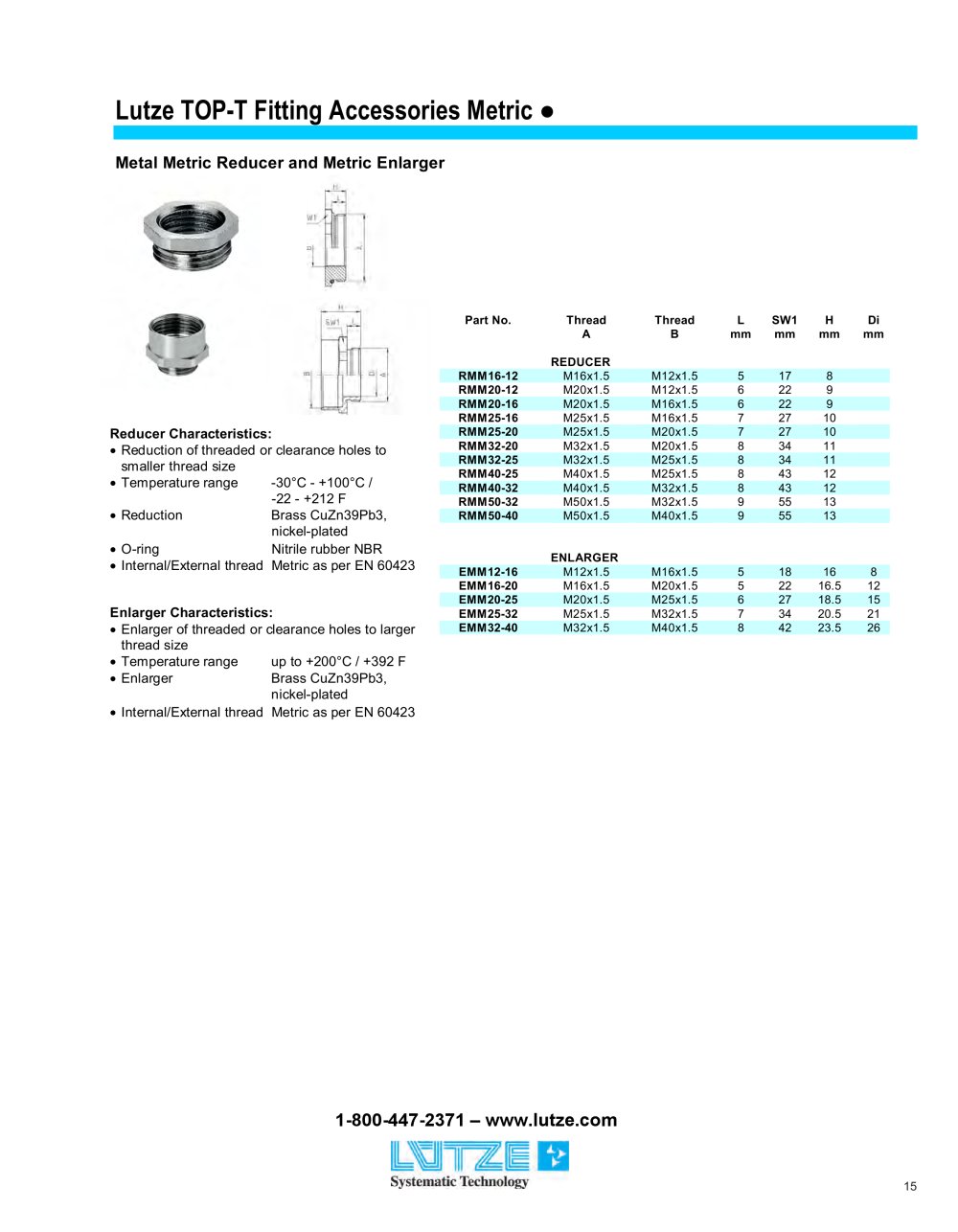

| | | Lutze TOP-T Fitting Accessories Metric • | | |
| | | |
| | | Metal Metric Reducer and Metric Enlarger | | |
| | | |
| | | | | | | | | | | | | | | Part No. | Thread | Thread | L | SW1 | H | Di | | | | | A | B | mm | mm | mm | mm | | | | | REDUCER | | | | | | | | | RMM16-12 | M16x1.5 | M12x1.5 | 5 | 17 | 8 | | | | | RMM 20-12 | M20x1.5 | M12x1.5 | 6 | 22 | 9 | | | | | RMM 20-16 | M20x1.5 | M16x1.5 | 6 | 22 | 9 | | | | | RMM 25-16 | M25x1.5 | M16x1.5 | 7 | 27 | 10 | | | | | RMM 25-20 | M25x1.5 | M20x1.5 | 7 | 27 | 10 | | | | | RMM 32-20 | M32x1.5 | M20x1.5 | 8 | 34 | 11 | | | | | RMM32-25 | M32x1.5 | M25x1.5 | 8 | 34 | 11 | | | | | RMM40-25 | M40x1.5 | M25x1.5 | 8 | 43 | 12 | | | | | RMM 40-32 | M40x1.5 | M32x1.5 | 8 | 43 | 12 | | | | | RMM50-32 | M50x1.5 | M32x1.5 | 9 | 55 | 13 | | | | | RMM 50-40 | M50x1.5 | M40x1.5 | 9 | 55 | 13 | | | | | ENLARGER | | | | EMM12-16 | M12x1.5 | M16x1.5 | 5 | 18 | 16 | 8 | | | | EMM16-20 | M16x1.5 | M20x1.5 | 5 | 22 | 16.5 | 12 | | | | EMM20-25 | M20x1.5 | M25x1.5 | 6 | 27 | 18.5 | 15 | | | | EMM25-32 | M25x1.5 | M32x1.5 | 7 | 34 | 20.5 | 21 | | | | EMM32-40 | M32x1.5 | M40x1.5 | 8 | 42 | 23.5 | 26 | | | | | | | | | | | | | | |
| | | Reducer Characteristics: • Reduction of threaded or clearance holes to smaller thread size | | |
| | | |
| | | -30oC-+100oC/ -22-+212 F Brass CuZn39Pb3, nickel-plated Nitrile rubber NBR Metric as per EN 60423 | | |
| | | • Temperature range • Reduction • O-ring • Internal/External thread | | |
| | | |
| | | |
| | | Enlarger Characteristics: • Enlarger of threaded or clearance holes to larger thread size | | |
| | | |
| | | |
| | | upto+200°C/+392 F Brass CuZn39Pb3, nickel-plated Metric as per EN 60423 | | |
| | | • Temperature range • Enlarger | | |
| | | |
| | | • Internal/External thread | | |
| | | |
| | | |
