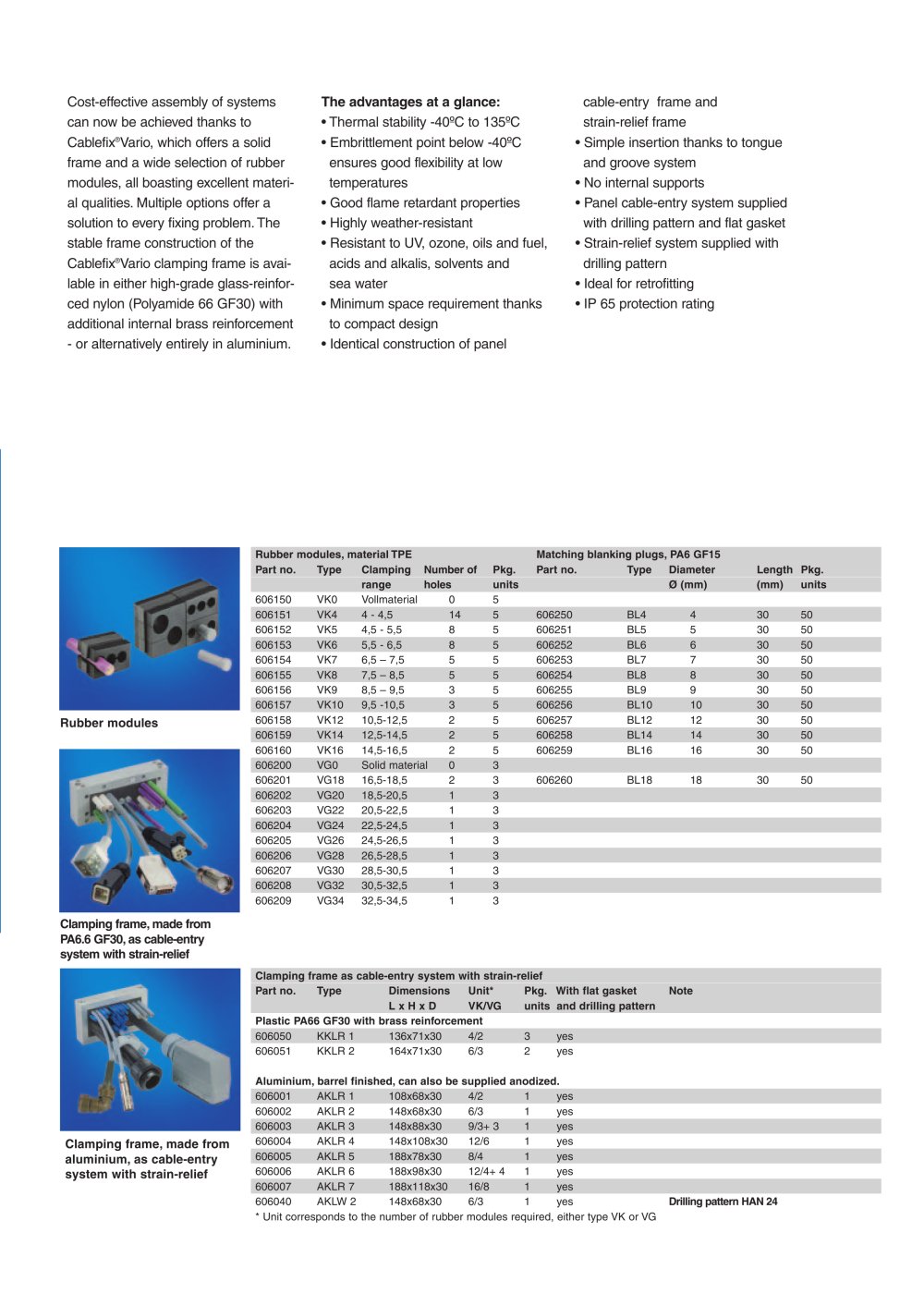

| | | | | | | | | | | | | | | | | | | | | | | | | Cost-effective assembly of systems can now be achieved thanks to Cablefix®Vario, which offers a solid frame and a wide selection of rubber modules, all boasting excellent material qualities. Multiple options offer a solution to every fixing problem. The stable frame construction of the Cablefix®Vario clamping frame is available in either high-grade glass-reinforced nylon (Polyamide 66 GF30) with additional internal brass reinforcement - or alternatively entirely in aluminium. | | The advantages at a glance: • Thermal stability -40°C to 135°C • Embrittlement point below -40°C ensures good flexibility at low temperatures • Good flame retardant properties • Highly weather-resistant • Resistant to UV, ozone, oils and fuel, acids and alkalis, solvents and sea water • Minimum space requirement thanks to compact design • Identical construction of panel | | cable-entry frame and strain-relief frame • Simple insertion thanks to tongue and groove system • No internal supports • Panel cable-entry system supplied with drilling pattern and flat gasket • Strain-relief system supplied with drilling pattern • Ideal for retrofitting • IP 65 protection rating | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Rubber modules, material TPE | | | | Matching blanking plugs, PA6 GF15 | | | | | | Part no. | Type | Clamping Number of Pkg. | | Part no. | Type | Diameter | Length | Pkg. | | | | | | range holes | units | | | | 0 (mm) | (mm) | units | | | | 606150 | VK0 | Vollmaterial | 0 | 5 | | | | | | | | | | 606151 | VK4 | 4 - 4,5 | 14 | 5 | | 606250 | BL4 | 4 | 30 | 50 | | | | 606152 | VK5 | 4,5 - 5,5 | 8 | 5 | | 606251 | BL5 | 5 | 30 | 50 | | | | 606153 | VK6 | 5,5 - 6,5 | 8 | 5 | | 606252 | BL6 | 6 | 30 | 50 | | | | 606154 | VK7 | 6,5 - 7,5 | 5 | 5 | | 606253 | BL7 | 7 | 30 | 50 | | | | 606155 | VK8 | 7,5 - 8,5 | 5 | 5 | | 606254 | BL8 | 8 | 30 | 50 | | | | 606156 | VK9 | 8,5 - 9,5 | 3 | 5 | | 606255 | BL9 | 9 | 30 | 50 | | | | 606157 | VK10 | 9,5 -10,5 | 3 | 5 | | 606256 | BL10 | 10 | 30 | 50 | | | | 606158 | VK12 | 10,5-12,5 | 2 | 5 | | 606257 | BL12 | 12 | 30 | 50 | | | | 606159 | VK14 | 12,5-14,5 | 2 | 5 | | 606258 | BL14 | 14 | 30 | 50 | | | | 606160 | VK16 | 14,5-16,5 | 2 | 5 | | 606259 | BL16 | 16 | 30 | 50 | | | | 606200 | VG0 | Solid material | 0 | 3 | | | | | | | | | | 606201 | VG18 | 16,5-18,5 | 2 | 3 | | 606260 | BL18 | 18 | 30 | 50 | | | | 606202 | VG20 | 18,5-20,5 | | 3 | | | | | | | | | | 606203 | VG22 | 20,5-22,5 | | 3 | | | | | | | | | | 606204 | VG24 | 22,5-24,5 | | 3 | | | | | | | | | | 606205 | VG26 | 24,5-26,5 | | 3 | | | | | | | | | | 606206 | VG28 | 26,5-28,5 | | 3 | | | | | | | | | | 606207 | VG30 | 28,5-30,5 | | 3 | | | | | | | | | | 606208 | VG32 | 30,5-32,5 | | 3 | | | | | | | | | | 606209 | VG34 | 32,5-34,5 | | 3 | | | | | | | | | | | | | | | | | | | | | | Clamping frame as cable-entry system with strain-relief | | | | | | | | Part no. | Type | Dimensions | Unit* | Pkg. With flat gasket | Note | | | | | | | | L x H x D | | VK/VG | units and drilling pattern | | | | | | | Plastic PA66 GF30 with brass reinforcement | | | | 606050 | KKLR 1 | 136x71x30 | | 4/2 | 3 | yes | | | | | | | | 606051 | KKLR 2 | 164x71x30 | | 6/3 | 2 | yes | | | | | | | | | | | | Aluminium, barrel finished, can also be supplied anodized. | | | | 606001 | AKLR 1 | 108x68x30 | | 4/2 | | yes | | | | | | | | 606002 | AKLR 2 | 148x68x30 | | 6/3 | | yes | | | | | | | | 606003 | AKLR 3 | 148x88x30 | | 9/3+ 3 | | yes | | | | | | | | 606004 | AKLR 4 | 148x108x30 | 12/6 | | yes | | | | | | | | 606005 | AKLR 5 | 188x78x30 | | 8/4 | | yes | | | | | | | | 606006 | AKLR 6 | 188x98x30 | | 12/4+ 4 | | yes | | | | | | | | 606007 | AKLR 7 | 188x118x30 | 16/8 | | yes | | | | | | | | 606040 | AKLW 2 | 148x68x30 | | 6/3 | | yes | | Drilling pattern HAN 24 | | | | | * Unit corresponds to the number of rubber modules required, either type VK or VG | | | | | | | | | | | | | | | | | | | | | | | | | Rubber modules | | | | | | | | | | Clamping frame, made from PA6.6 GF30, as cable-entry system with strain-relief | | | | | | | | | | Clamping frame, made from aluminium, as cable-entry system with strain-relief | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
