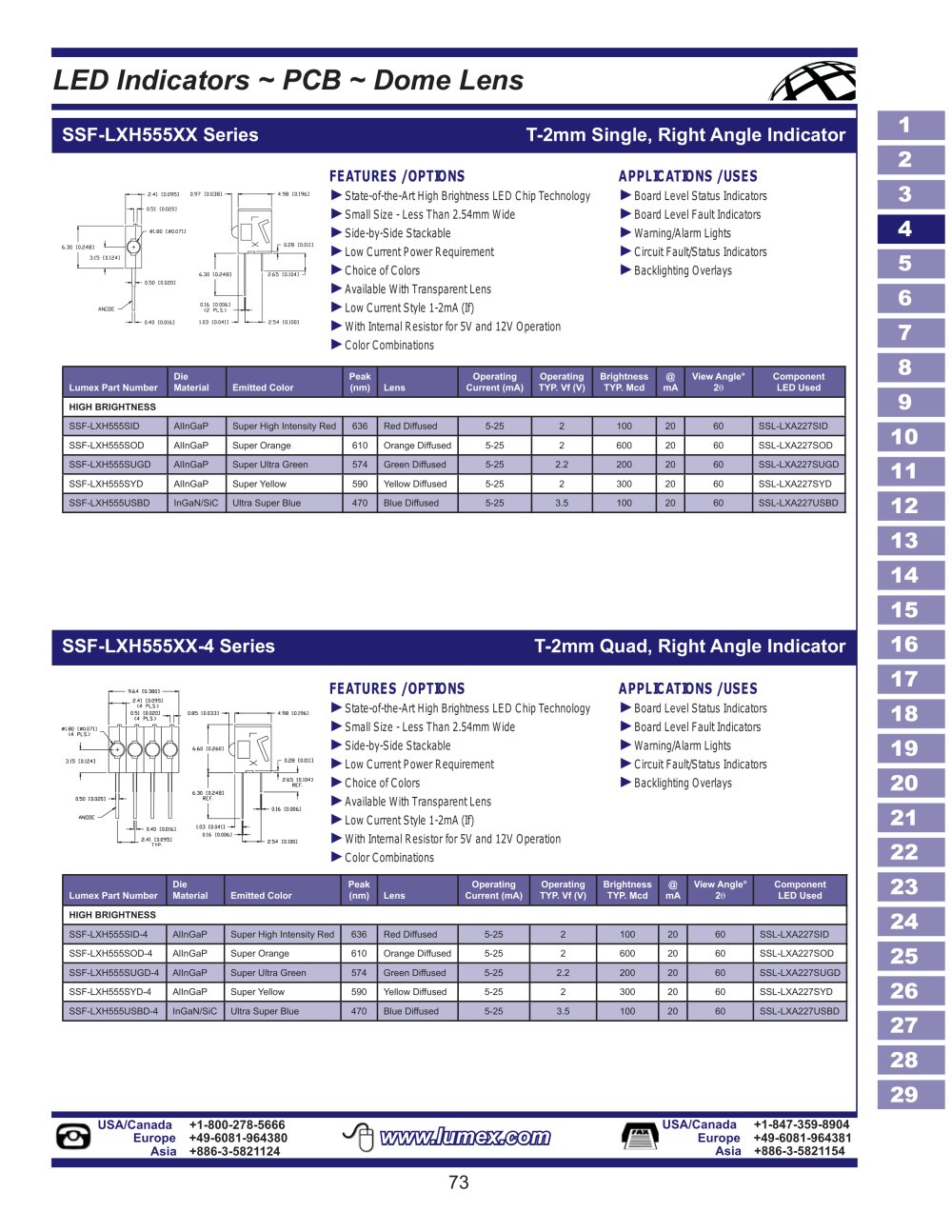

LED indicators ~ PCB ~ Dome Lens
SSF-LXH555XX Series
T-2mm Single, Right Angle Indicator
FEATURES / OPTIONS
► State-of-the-Art High Brightness LED Chip Technology
► Small Size - Less Than 2.54mm Wide
► Side-by-Side Stackable
► Low Current Power Requirement
► Choice of Colors
► Available With Transparent Lens
► Low Current Style 1-2mA (If)
► With Internal Resistor for 5V and 12V Operation
► Color Combinations
APPLICATIONS / USES
► Board Level Status Indicators
► Board Level Fault Indicators
► Warning/Alarm Lights
► Circuit Fault/Status Indicators
► Backlighting Overlays
4
6
JL
7
8
Lumex Part Number
Die
Material
Emitted Color
Peak (nm)
Lens
Operating Current (mA)
Operating TYP. Vf (V)
Brightness TYP. Mcd
@ mA
View Angle°
LED Used
HIGH BRIGHTNESS
SSF-LXH555SID
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LXA227SID
SSF-LXH555SOD
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
600
20
60
SSL-LXA227SOD
SSF-LXH555SUGD
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
200
20
60
SSL-LXA227SUGD
SSF-LXH555SYD
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
300
20
60
SSL-LXA227SYD
SSF-LXH555USBD
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
100
20
60
SSL-LXA227USBD
9
10
11
12
13
14
15
16
SSF-LXH555XX-4 Series
T-2mm Quad, Right Angle Indicator
17
FEATURES / OPTIONS
► State-of-the-Art High Brightness LED Chip Technology
► Small Size - Less Than 2.54mm Wide
► Side-by-Side Stackable
► Low Current Power Requirement
► Choice of Colors
► Available With Transparent Lens
► Low Current Style 1-2mA (If)
► With Internal Resistor for 5V and 12V Operation
► Color Combinations
APPLICATIONS / USES
► Board Level Status Indicators
► Board Level Fault Indicators
► Warning/Alarm Lights
► Circuit Fault/Status Indicators
► Backlighting Overlays
18
2\
19
2
21
22
23
Die
-t5t
Operating Operating Brightness @ rrent (mA) TYP. Vf (V) TYP. Mcd mA
View
(nm)
t Number
Material Emitted Color
Lens
HIGH BRIGHTNESS
24
SSF-LXH555SID-4
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LXA227SID
SSF-LXH555SOD-4
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
600
20
60
SSL-LXA227SOD
SSF-LXH555SUGD-4
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
200
20
60
SSL-LXA227SUGD
SSF-LXH555SYD-4
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
300
20
60
SSL-LXA227SYD
SSF-LXH555USBD-4
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
100
20
60
SSL-LXA227USBD
25
26
2
28
USA/Canada +1-800-278-5666 Europe +49-6081-964380 Asia +886-3-5821124
USA/Canada +1-847-359-8904 Europe +49-6081-964381 Asia +886-3-5821154
