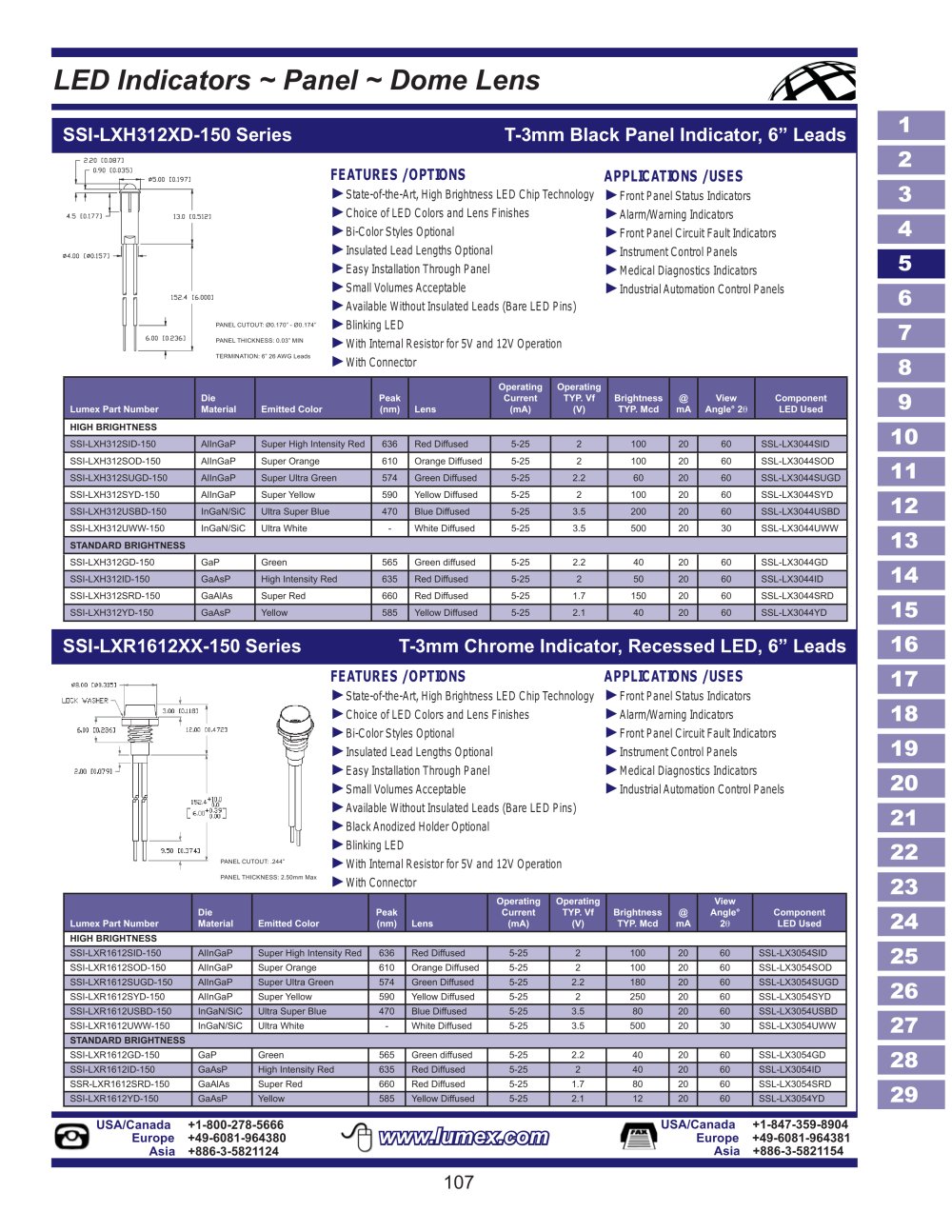

LED indicators ~ Panel ~ Dome Lens
1
SSI-LXH312XD-150 Series
T-3mm Black Panel Indicator, 6" Leads
2
FEATURES / OPTIONS
► State-of-the-Art, High Brightness LED Chip Technology
► Choice of LED Colors and Lens Finishes
► Bi-Color Styles Optional
► Insulated Lead Lengths Optional
► Easy Installation Through Panel
► Small Volumes Acceptable
► Available Without Insulated Leads (Bare LED Pins)
► Blinking LED
► With Internal Resistor for 5V and 12V Operation
► With Connector
APPLICATIONS / USES
► Front Panel Status Indicators
► Alarm/Warning Indicators
► Front Panel Circuit Fault Indicators
► Instrument Control Panels
► Medical Diagnostics Indicators
► Industrial Automation Control Panels
3
5
6
PANEL CUTOUT: 00.170" - 00.174"
7
PANEL THICKNESS: 0.03" MIN
TERMINATION: 6" 26 AWG Leads
8
HIGH BRIGHTNESS
SSI-LXH312SID-150
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LX3044SID
SSI-LXH312SOD-150
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
100
20
60
SSL-LX3044SOD
SSI-LXH312SUGD-150
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
60
20
60
SSL-LX3044SUGD
SSI-LXH312SYD-150
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
100
20
60
SSL-LX3044SYD
SSI-LXH312USBD-150
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
200
20
60
SSL-LX3044USBD
SSI-LXH312UWW-150
InGaN/SiC
Ultra White
-
White Diffused
5-25
3.5
500
20
30
SSL-LX3044UWW
STANDARD BRIGHTNESS
SSI-LXH312GD-150
GaP
Green
565
Green diffused
5-25
2.2
40
20
60
SSL-LX3044GD
SSI-LXH312ID-150
GaAsP
High Intensity Red
635
Red Diffused
5-25
2
50
20
60
SSL-LX3044ID
SSI-LXH312SRD-150
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
150
20
60
SSL-LX3044SRD
SSI-LXH312YD-150
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
40
20
60
SSL-LX3044YD
9
10
11
12
13
14
15
16
SSI-LXR1612XX-150 Series
T-3mm Chrome Indicator, Recessed LED, 6" Leads
FEATURES / OPTIONS
► State-of-the-Art, High Brightness LED Chip Technology
► Choice of LED Colors and Lens Finishes
► Bi-Color Styles Optional
► Insulated Lead Lengths Optional
► Easy Installation Through Panel
► Small Volumes Acceptable
► Available Without Insulated Leads (Bare LED Pins)
► Black Anodized Holder Optional
► Blinking LED
► With Internal Resistor for 5V and 12V Operation
► With Connector
APPLICATIONS / USES
► Front Panel Status Indicators
► Alarm/Warning Indicators
► Front Panel Circuit Fault Indicators
► Instrument Control Panels
► Medical Diagnostics Indicators
► Industrial Automation Control Panels
17
LLXK VASHER
18
19
2
21
22
PANEL CUTOUT: .244"
PANEL THICKNESS: 2.50mm Max
23
Peak (nm)
24
Lumex part Numb.
mitted Color
LED Used
SSI-LXR1612SID-150
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
100
20
60
SSL-LX3054SID
SSI-LXR1612SOD-150
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
100
20
60
SSL-LX3054SOD
SSI-LXR1612SUGD-150
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
180
20
60
SSL-LX3054SUGD
SSI-LXR1612SYD-150
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
250
20
60
SSL-LX3054SYD
SSI-LXR1612USBD-150
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
80
20
60
SSL-LX3054USBD
SSI-LXR1612UWW-150
InGaN/SiC
Ultra White
-
White Diffused
5-25
3.5
500
20
30
SSL-LX3054UWW
STANDARD BRIGHTNESS
SSI-LXR1612GD-150
GaP
Green
565
Green diffused
5-25
2.2
40
20
60
SSL-LX3054GD
SSI-LXR1612ID-150
GaAsP
High Intensity Red
635
Red Diffused
5-25
2
40
20
60
SSL-LX3054ID
SSR-LXR1612SRD-150
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
80
20
60
SSL-LX3054SRD
SSI-LXR1612YD-150
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
12
20
60
SSL-LX3054YD
25
26
2
28
29
