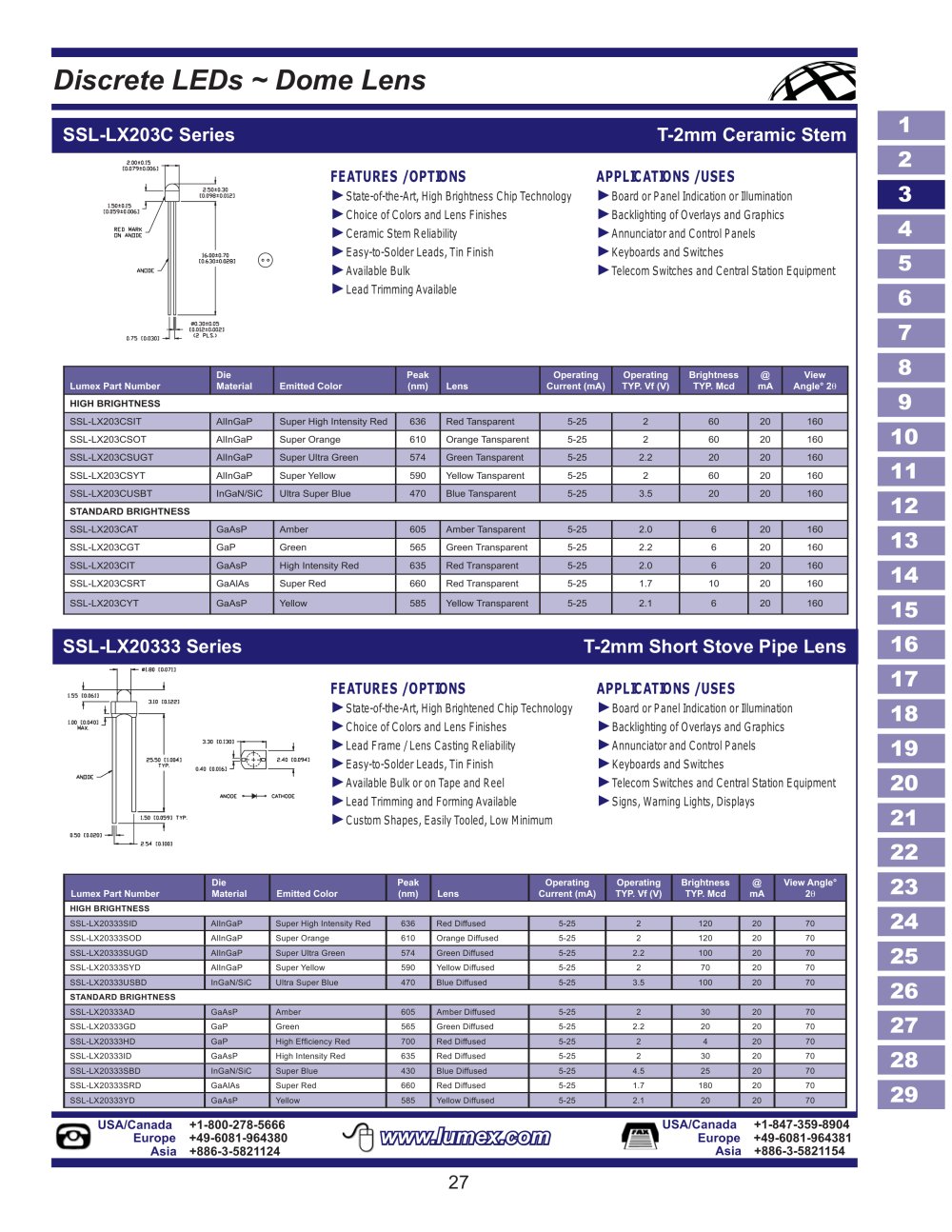

Diserete LEDs ~ Dome Lens
1
El
SSL-LX203C Series T-2mm Ceramic Stem
FEATURES / OPTIONS APPLICATIONS / USES
► State-of-the-Art, High Brightness Chip Technology ► Board or Panel Indication or Illumination
► Choice of Colors and Lens Finishes ► Backlighting of Overlays and Graphics
► Ceramic Stem Reliability ►Annunciator and Control Panels
► Easy-to-Solder Leads, Tin Finish ► Keyboards and Switches
► Available Bulk ►Telecom Switches and Central Station Equipment
► Lead Trimming Available
3
[Q.09B+D.01E]
5
(NEIDE -A
eo.30±o.as -Hh- [O.oia±o.0OB] J L <2
8
Lumex Part Number
Die
Material
Emitted Color
Peak (nm)
Lens
Operating Current (mA)
Operating TYP. Vf (V)
Brightness TYP. Mcd
@ mA
V Ang
ew
le° 29
HIGH BRIGHTNESS
SSL-LX203CSIT
AlInGaP
Super High Intensity Red
636
Red Tansparent
5-25
2
60
20
160
SSL-LX203CSOT
AlInGaP
Super Orange
610
Orange Tansparent
5-25
2
60
20
160
SSL-LX203CSUGT
AlInGaP
Super Ultra Green
574
Green Tansparent
5-25
2.2
20
20
160
SSL-LX203CSYT
AlInGaP
Super Yellow
590
Yellow Tansparent
5-25
2
60
20
160
SSL-LX203CUSBT
InGaN/SiC
Ultra Super Blue
470
Blue Tansparent
5-25
3.5
20
20
160
STANDARD BRIGHTNESS
SSL-LX203CAT
GaAsP
Amber
605
Amber Tansparent
5-25
2.0
6
20
160
SSL-LX203CGT
GaP
Green
565
Green Transparent
5-25
2.2
6
20
160
SSL-LX203CIT
GaAsP
High Intensity Red
635
Red Transparent
5-25
2.0
6
20
160
SSL-LX203CSRT
GaAlAs
Super Red
660
Red Transparent
5-25
1.7
10
20
160
SSL-LX203CYT
GaAsP
Yellow
585
Yellow Transparent
5-25
2.1
6
20
160
9
10
11
12
13
14
15
16
SSL-LX20333 Series
T-2mm Short Stove Pipe Lens
1
— 01.BO [M
I
[0.061]
17
FEATURES / OPTIONS
► State-of-the-Art, High Brightened Chip Technology
► Choice of Colors and Lens Finishes
► Lead Frame / Lens Casting Reliability
► Easy-to-Solder Leads, Tin Finish
► Available Bulk or on Tape and Reel
► Lead Trimming and Forming Available
► Custom Shapes, Easily Tooled, Low Minimum
APPLICATIONS / USES
► Board or Panel Indication or Illumination
► Backlighting of Overlays and Graphics
► Annunciator and Control Panels
► Keyboards and Switches
► Telecom Switches and Central Station Equipment
► Signs, Warning Lights, Displays
18
19
M
2
ANODE ■—M—• CATHODE
21
1.50 [0.059] TYP.
) [0.050] -J
22
Material Emitted Color
Operating Current (mA)
Operating TYP. Vf (V)
Brightness TYP. Mcd
@ mA
View Angle°
29
HIGH BRIGHTNESS
SSL-LX20333SID
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
120
20
70
SSL-LX20333SOD
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
120
20
70
SSL-LX20333SUGD
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
100
20
70
SSL-LX20333SYD
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
70
20
70
SSL-LX20333USBD
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
100
20
70
STANDARD BRIGHTNESS
SSL-LX20333AD
GaAsP
Amber
605
Amber Diffused
5-25
2
30
20
70
SSL-LX20333GD
GaP
Green
565
Green Diffused
5-25
2.2
20
20
70
SSL-LX20333HD
GaP
High Efficiency Red
700
Red Diffused
5-25
2
4
20
70
SSL-LX20333ID
GaAsP
High Intensity Red
635
Red Diffused
5-25
2
30
20
70
SSL-LX20333SBD
InGaN/SiC
Super Blue
430
Blue Diffused
5-25
4.5
25
20
70
SSL-LX20333SRD
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
180
20
70
SSL-LX20333YD
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
20
20
70
23
24
25
26
2
28
