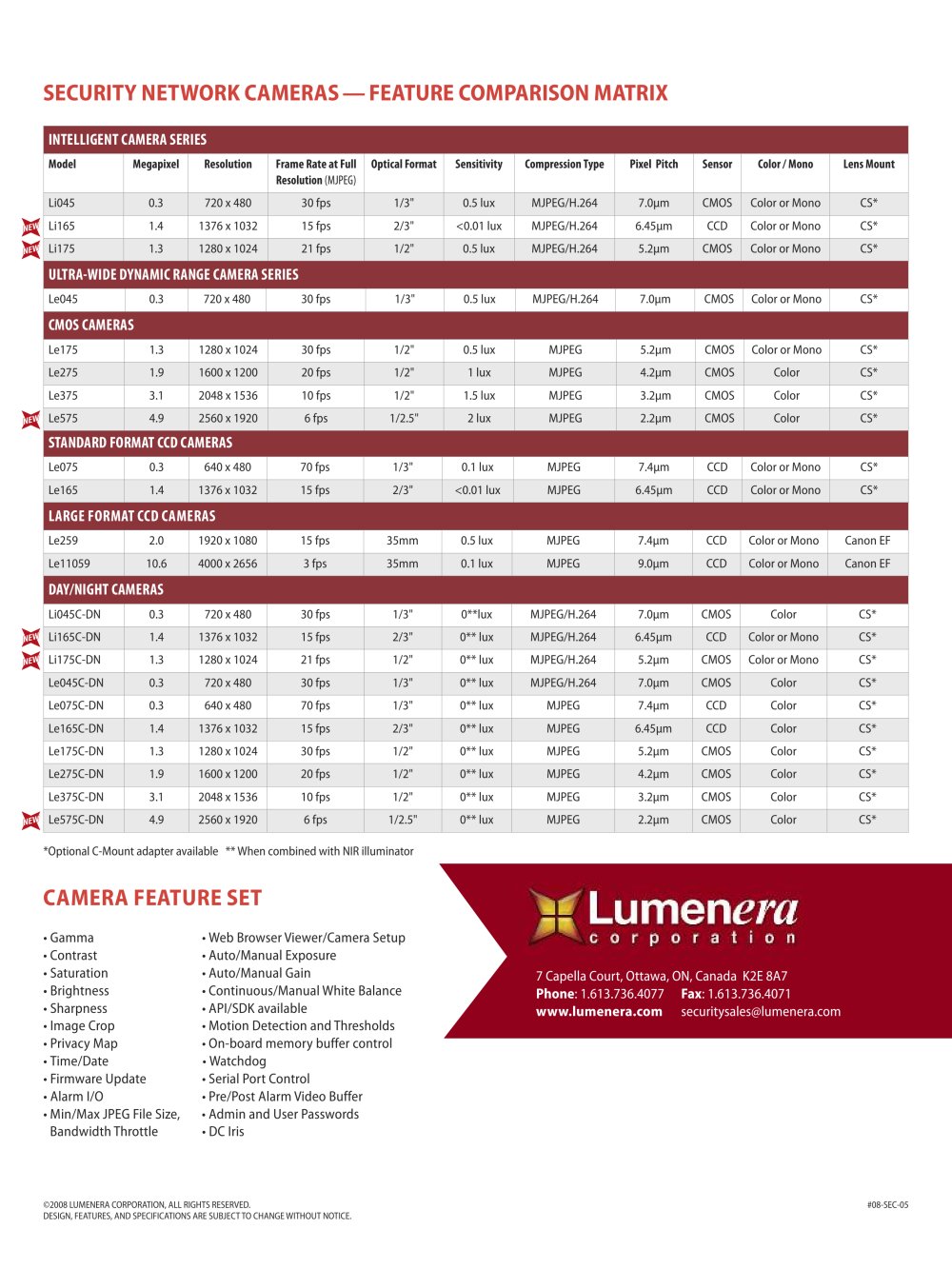

SECURITY NETWORK CAMERAS — FEATURE COMPARISON MATRIX

INTELLIGENT CAMERA SERIES

Model

Megapixel

Resolution

Frame Rate at Full Resolution (MJPEG)

Optical Format

Sensitivity

Compression Type

Pixel Pitch

Sensor

Color/Mono

Lens Mount

LÌ045

0.3

720x480

30fps

1/3"

0.5 lux

MJPEG/H.264

7.0um

CMOS

Color or Mono

CS*

LÍ165

1.4

1376x1032

15fps

2/3"

<0.01 lux

MJPEG/H.264

6.45um

CCD

Color or Mono

CS*

LÍ175

1.3

1280x1024

21 fps

1/2"

0.5 lux

MJPEG/H.264

5.2um

CMOS

Color or Mono

CS*

ULTRA-WIDE DYNAMIC RANGE CAMERA SERIES

Le045

0.3

720x480

30fps

1/3"

0.5 lux

MJPEG/H.264

7.0um

CMOS

Color or Mono

CS*

CMOSCAMERAS

Le175

1.3

1280x1024

30 fps

1/2"

0.5 lux

MJPEG

5.2um

CMOS

Color or Mono

CS*

Le275

1.9

1600 x 1200

20 fps

1/2"

1 lux

MJPEG

4.2um

CMOS

Color

CS*

Le375

3.1

2048x1536

10 fps

1/2"

1.5 lux

MJPEG

3.2um

CMOS

Color

CS*

Le575

4.9

2560x1920

6 fps

1/2.5"

2 lux

MJPEG

2.2um

CMOS

Color

CS*

STANDARD FORMAT CCD CAMERAS

Le075

0.3

640 x 480

70 fps

1/3"

0.1 lux

MJPEG

7.4um

CCD

Color or Mono

CS*

Le165

1.4

1376x1032

15 fps

2/3"

<0.01 lux

MJPEG

6.45um

CCD

Color or Mono

CS*

LARGE FORMAT CCD CAMERAS

Le259

2.0

1920x1080

15 fps

35mm

0.5 lux

MJPEG

7.4um

CCD

Color or Mono

Canon EF

Le11059

10.6

4000x2656

3fps

35mm

0.1 lux

MJPEG

9.0um

CCD

Color or Mono

Canon EF

DAY/NIGHT CAMERAS

LÌ045C-DN

0.3

720 x480

30 fps

1/3"

0**lux

MJPEG/H.264

7.0um

CMOS

Color

CS*

LÌ165C-DN

1.4

1376 x1032

15 fps

2/3"

0**lux

MJPEG/H.264

6.45um

CCD

Color or Mono

CS*

LÌ175C-DN

1.3

1280 x1024

21 fps

1/2"

0**lux

MJPEG/H.264

5.2um

CMOS

Color or Mono

CS*

Le045C-DN

0.3

720 x480

30 fps

1/3"

0**lux

MJPEG/H.264

7.0um

CMOS

Color

CS*

Le075C-DN

0.3

640 x 480

70fps

1/3"

0**lux

MJPEG

7.4um

CCD

Color

CS*

Le165C-DN

1.4

1376x1032

15 fps

2/3"

0**lux

MJPEG

6.45um

CCD

Color

CS*

Le175C-DN

1.3

1280 x1024

30 fps

1/2"

0**lux

MJPEG

5.2um

CMOS

Color

CS*

Le275C-DN

1.9

1600 x 1200

20 fps

1/2"

0**lux

MJPEG

4.2um

CMOS

Color

CS*

Le375C-DN

3.1

2048 x1536

10 fps

1/2"

0**lux

MJPEG

3.2um

CMOS

Color

CS*

Le575C-DN

4.9

2560 x1920

6 fps

1/2.5"

0**lux

MJPEG

2.2um

CMOS

Color

CS*

*Optional C-Mount adapter available ** When combined with NIR illuminator

CAMERA FEATURE SET

*Ì Lumenora

corporation

7 Capella Court, Ottawa, ON, Canada K2E 8A7 Phone: 1.613.736.4077 Fax: 1.613.736.4071 www.lumenera.com securitysales@lumenera.com

• Web Browser Viewer/Camera Setup

• Auto/Manual Exposure

• Auto/Manual Gain

• Continuous/Manual White Balance

• API/SDK available

• Motion Detection and Thresholds

• On-board memory buffer control

• Watchdog

• Serial Port Control

• Pre/Post Alarm Video Buffer

• Admin and User Passwords

• DC Iris

• Gamma

• Contrast

• Saturation

• Brightness

• Sharpness

• Image Crop

• Privacy Map

• Time/Date

• Firmware Update

• Alarm I/O

• Min/MaxJPEG File Size, Bandwidth Throttle

DESIGN, FEATURES, AND SPECIFICATIONS ARE SUBJECTTO CHANGEWITHOUT NOTICE.

#08-SEC-05
