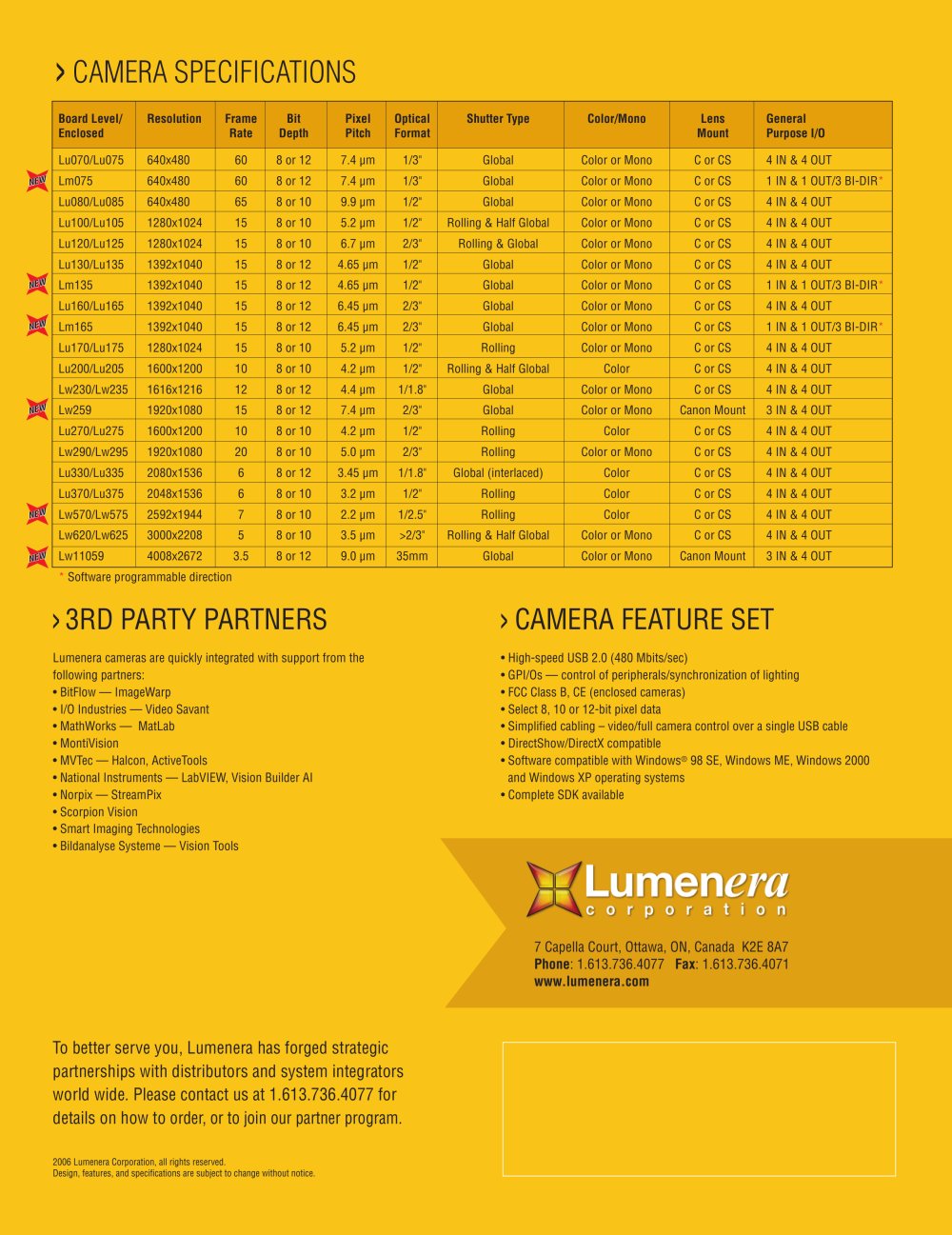

> CAMERA SPECIFICATIONS


Board Level/	Resolution	Frame	Bit	Pixel	Optical	Shutter Type	Color/Mono	Lens	General
Enclosed		Rate	Depth	Pitch	Format			Mount	Purpose I/O
Lu070/Lu075	640x480	60	8 or 12	7.4 Mm	1/3"	Global	Color or Mono	CorCS	4 IN & 4 OUT
Lm075	640x480	60	8 or 12	7.4 Mm	1/3"	Global	Color or Mono	CorCS	1 IN & 1 OUT/3 BI-DIR*
Lu080/Lu085	640x480	65	8 or 10	9.9 Mm	1/2"	Global	Color or Mono	CorCS	4 IN & 4 OUT
Lu100/Lu105	1280x1024	15	8 or 10	5.2 Mm	1/2"	Rolling & Half Global	Color or Mono	CorCS	4 IN & 4 OUT
Lu120/Lu125	1280x1024	15	8 or 10	6.7 Mm	2/3"	Rolling & Global	Color or Mono	CorCS	4 IN & 4 OUT
Lu130/Lu135	1392x1040	15	8 or 12	4.65 Mm	1/2"	Global	Color or Mono	C or CS	4 IN & 4 OUT
Lm135	1392x1040	15	8 or 12	4.65 Mm	1/2"	Global	Color or Mono	C or CS	1 IN & 1 OUT/3 BI-DIR*
Lu160/Lu165	1392x1040	15	8 or 12	6.45 Mm	2/3"	Global	Color or Mono	C or CS	4 IN & 4 OUT
Lm165	1392x1040	15	8 or 12	6.45 Mm	2/3"	Global	Color or Mono	CorCS	1 IN & 1 OUT/3 BI-DIR*
Lu170/Lu175	1280x1024	15	8 or 10	5.2 Mm	1/2"	Rolling	Color or Mono	C or CS	4 IN & 4 OUT
Lu200/Lu205	1600x1200	10	8 or 10	4.2 Mm	1/2"	Rolling & Half Global	Color	C or CS	4 IN & 4 OUT
Lw230/Lw235	1616x1216	12	8 or 12	4.4 Mm	1/1.8"	Global	Color or Mono	C or CS	4 IN & 4 OUT
Lw259	1920x1080	15	8 or 12	7.4 Mm	2/3"	Global	Color or Mono	Canon Mount	3 IN & 4 OUT
Lu270/Lu275	1600x1200	10	8 or 10	4.2 Mm	1/2"	Rolling	Color	C or CS	4 IN & 4 OUT
Lw290/Lw295	1920x1080	20	8 or 10	5.0 Mm	2/3"	Rolling	Color or Mono	C or CS	4 IN & 4 OUT
Lu330/Lu335	2080x1536	6	8 or 12	3.45 Mm	1/1.8"	Global (interlaced)	Color	C or CS	4 IN & 4 OUT
Lu370/Lu375	2048x1536	6	8 or 10	3.2 Mm	1/2"	Rolling	Color	C or CS	4 IN & 4 OUT
Lw570/Lw575	2592x1944	7	8 or 10	2.2 Mm	1/2.5"	Rolling	Color	C or CS	4 IN & 4 OUT
Lw620/Lw625	3000x2208	5	8 or 10	3.5 Mm	>2/3"	Rolling & Half Global	Color or Mono	C or CS	4 IN & 4 OUT
Lw11059	4008x2672	3.5	8 or 12	9.0 Mm	35mm	Global	Color or Mono	Canon Mount	3 IN & 4 OUT

X X

Software programmable direction

> 3RD PARTY PARTNERS

Lumenera cameras are quickly integrated with support from the

following partners:

•BitFlow —ImageWarp

•I/O Industries —Video Savant

•MathWorks— MatLab

•MontiVision

•MVTec —Halcon, ActiveTools

• National Instruments — LabVIEW, Vision Builder AI •Norpix —StreamPix

• Scorpion Vision

• Smart Imaging Technologies

• Bildanalyse Systeme — Vision Tools

> CAMERA FEATURE SET

• High-speed USB 2.0 (480 Mbits/sec)

• GPI/Os — control of peripherals/synchronization of lighting

• FCC Class B, CE (enclosed cameras) •Select 8,10 or 12-bit pixel data

• Simplified cabling - video/full camera control over a single USB cable •DirectShow/DirectX compatible

• Software compatible with Windows® 98 SE, Windows ME, Windows 2000 and Windows XP operating systems

•Complete SDK available

menerà

p o r a t i o n

7 Capella Court, Ottawa, ON, Canada K2E 8A7 Phone: 1.613.736.4077 Fax: 1.613.736.4071 www.lumenera.com

To better serve you, Lumenera has forged strategic partnerships with distributors and system integrators world wide. Please contact us at 1.613.736.4077 for details on how to order, or to join our partner program.

Design, features, and specifications are subject to change without notice.
