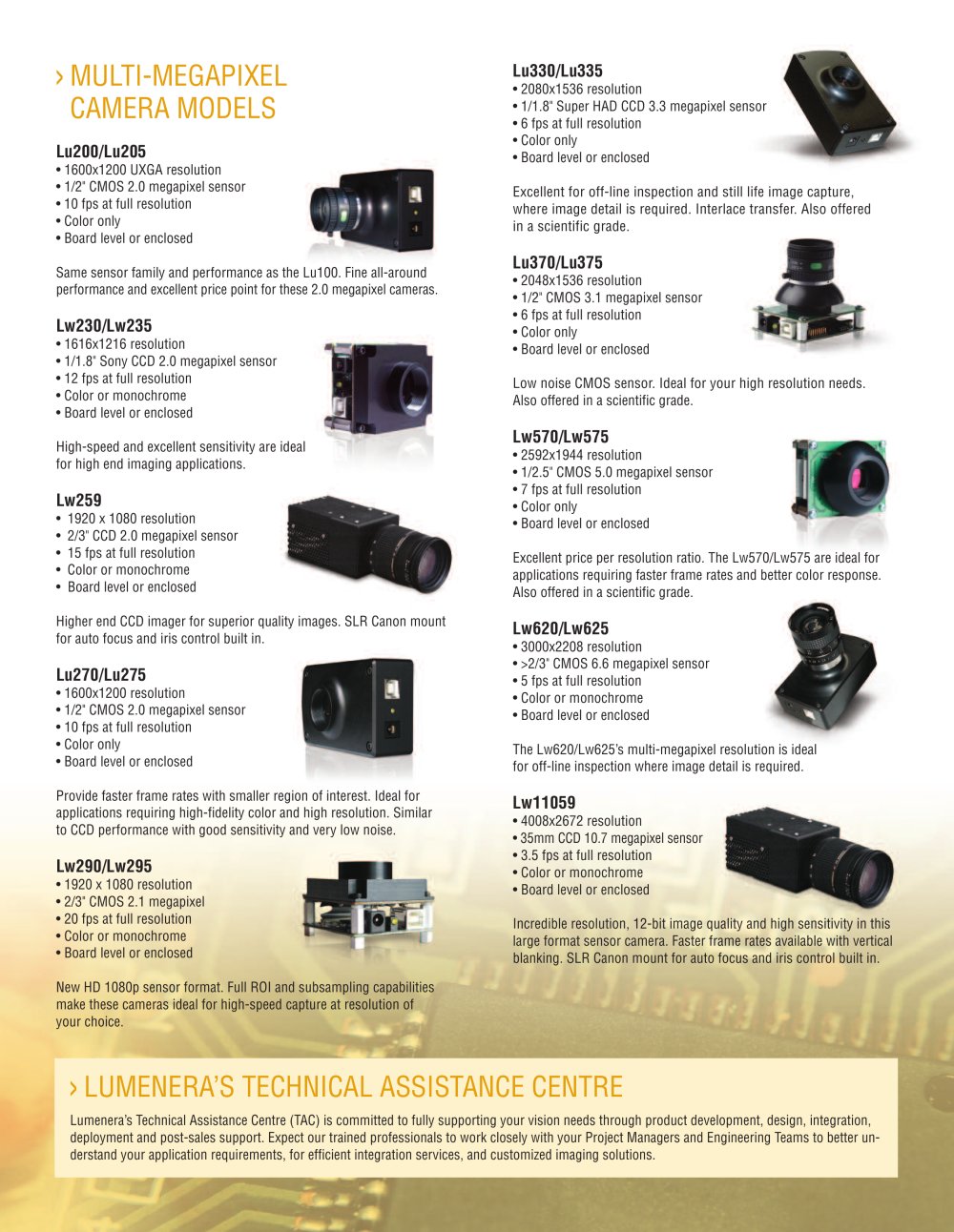

> MULTI-MEGAPIXEL CAMERA MODELS

Lu200/Lu205

• 1600x1200 UXGA resolution

• 1/2" CMOS 2.0 megapixel sensor

• 10 fps at full resolution

• Color only

• Board level or enclosed

Lu330/Lu335

•2080x1536 resolution

• 1/1.8" Super HAD CCD 3.3 megapixel sensor •6 fps at full resolution

• Color only

• Board level or enclosed

Excellent for off-line inspection and still life image capture, where image detail is required. Interlace transfer. Also offered in a scientific grade.

Lu370/Lu375

•2048x1536 resolution

• 1/2" CMOS 3.1 megapixel sensor •6 fps at full resolution

• Color only

• Board level or enclosed

Same sensor family and performance as the Lu100. Fine all-around performance and excellent price point for these 2.0 megapixel cameras.

Lw230/Lw235

• 1616x1216 resolution

• 1/1.8" Sony CCD 2.0 megapixel sensor

• 12 fps at full resolution

• Color or monochrome

• Board level or enclosed

High-speed and excellent sensitivity are ideal for high end imaging applications.

Low noise CMOS sensor. Ideal for your high resolution needs. Also offered in a scientific grade.

Lw570/Lw575

•2592x1944 resolution

• 1/2.5" CMOS 5.0 megapixel sensor •7 fps at full resolution

• Color only

• Board level or enclosed

:

Lw259

• 1920x 1080 resolution

• 2/3" CCD 2.0 megapixel sensor

• 15 fps at full resolution

• Color or monochrome

• Board level or enclosed

Excellent price per resolution ratio. The Lw570/Lw575 are ideal for applications requiring faster frame rates and better color response. Also offered in a scientific grade.

Higher end CCD imager for superior quality images. SLR Canon mount for auto focus and iris control built in.

Lw620/Lw625

• 3000x2208 resolution

•>2/3" CMOS 6.6 megapixel sensor •5 fps at full resolution

• Color or monochrome

• Board level or enclosed

Lu270/Lu275

• 1600x1200 resolution

•1/2" CMOS 2.0 megapixel sensor •10 fps at full resolution

• Color only

• Board level or enclosed

The Lw620/Lw625's multi-megapixel resolution is ideal

for off-line inspection where image detail is required.

Provide faster frame rates with smaller region of interest. Ideal for applications requiring high-fidelity color and high resolution. Similar to CCD performance with good sensitivity and very low noise.

Lw11059

•4008x2672 resolution

•35mm CCD 10.7 megapixel sensor

•3.5 fps at full resolution

• Color or monochrome

• Board level or enclosed

Lw290/Lw295

• 1920x 1080 resolution •2/3" CMOS 2.1 megapixel •20 fps at full resolution

• Color or monochrome

• Board level or enclosed

Incredible resolution, 12-bit image quality and high sensitivity in this large format sensor camera. Faster frame rates available with vertical blanking. SLR Canon mount for auto focus and iris control built in.

New HD 1080p sensor format. Full ROI and subsampling capabilities make these cameras ideal for high-speed capture at resolution of your choice.

> LUMENERA'S TECHNICAL ASSISTANCE CENTRE

Lumenera's Technical Assistance Centre (TAC) is committed to fully supporting your vision needs through product development, design, integration, deployment and post-sales support. Expect our trained professionals to work closely with your Project Managers and Engineering Teams to better un­derstand your application requirements, for efficient integration services, and customized imaging solutions.
