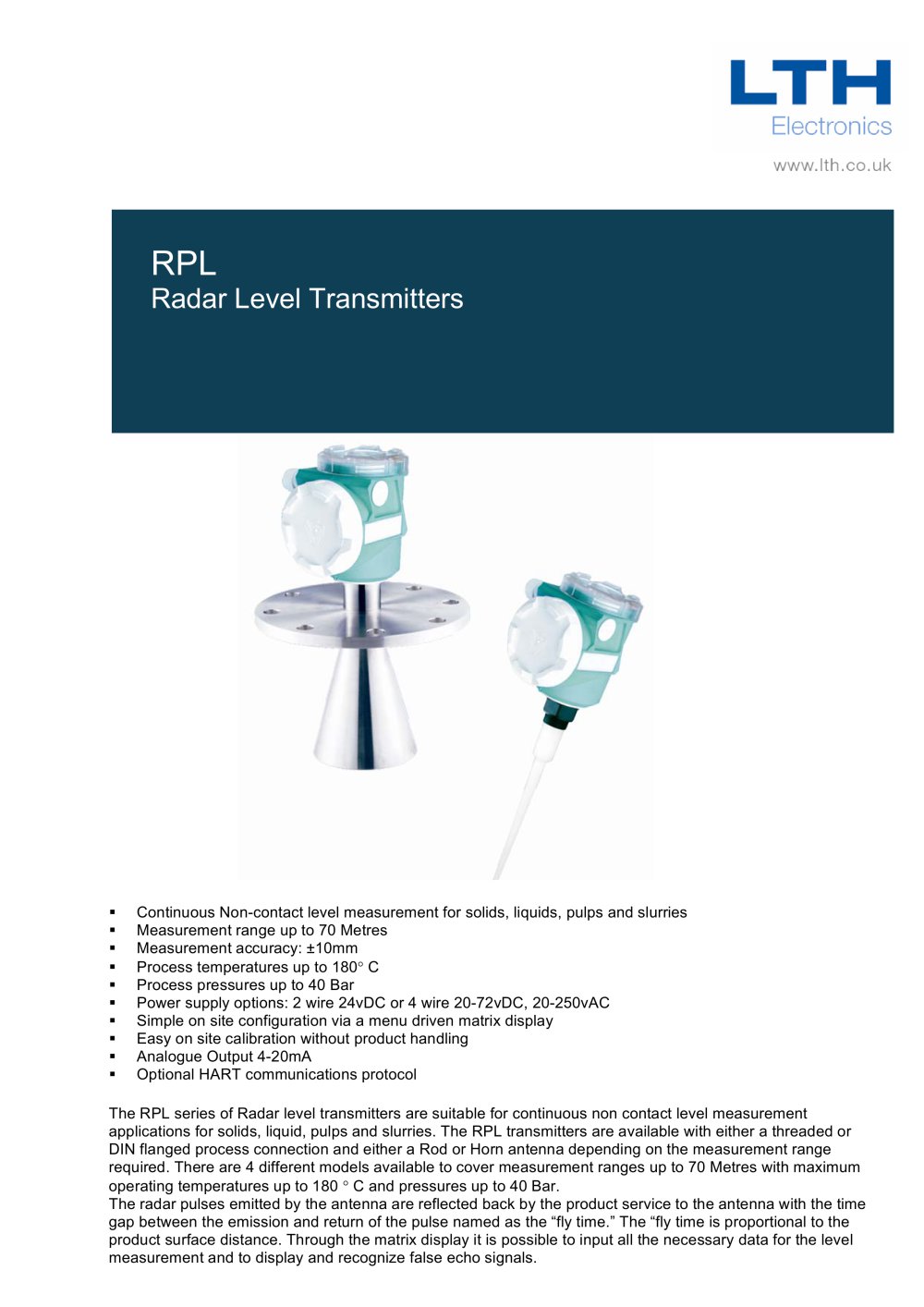

RPL 50 Series Radar Level Transmitters - LTH Electronics - #1

Text version of the page

.. Continuous Non-contact level measurement for solids, liquids, pulps and slurries .. Measurement range up to 70 Metres .. Measurement accuracy: ±10mm .. Process temperatures up to 180° C .. Process pressures up to 40 Bar .. Power supply options: 2 wire 24vDC or 4 wire 20-72vDC, 20-250vAC .. Simple on site configuration via a menu driven matrix display .. Easy on site calibration without product handling .. Analogue Output 4-20mA .. Optional HART communications protocol The RPL series of Radar level transmitters are suitable for continuous non contact level measurement applications for solids, liquid, pulps and slurries. The RPL transmitters are available with either a threaded or DIN flanged process connection and either a Rod or Horn antenna depending on the measurement range required. There are 4 different models available to cover measurement ranges up to 70 Metres with maximum operating temperatures up to 180 ° C and pressures up to 40 Bar. The radar pulses emitted by the antenna are reflected back by the product service to the antenna with the time gap between the emission and return of the pulse named as the “fly time.” The “fly time is proportional to the product surface distance. Through the matrix display it is possible to input all the necessary data for the level measurement and to display and recognize false echo signals. RPL Radar Level Transmitters
