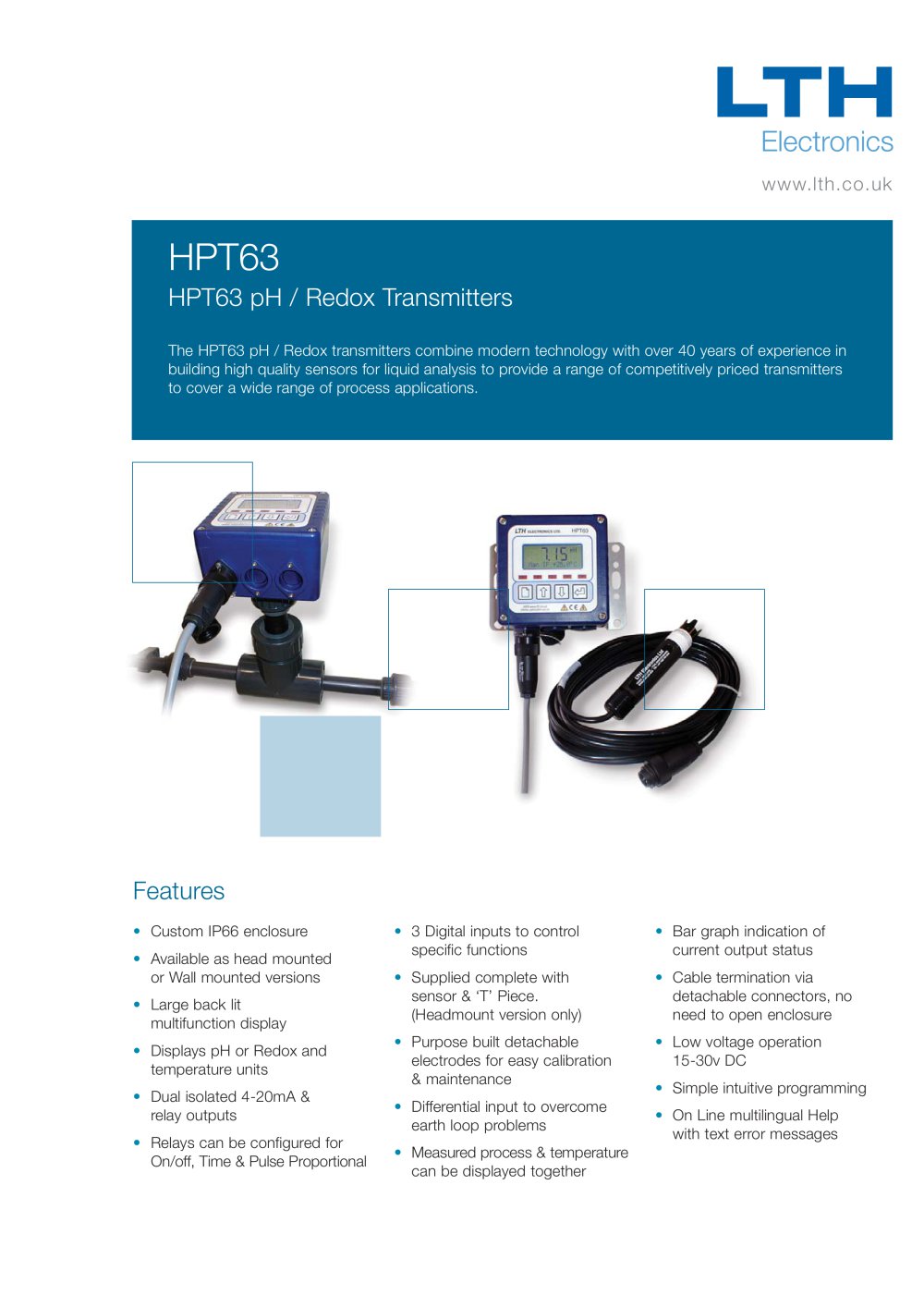

HPT63 HPT63 pH / Redox Transmitters The HPT63 pH / Redox transmitters combine modern technology with over 40 years of experience in building high quality sensors for liquid analysis to provide a range of competitively priced transmitters to cover a wide range of process applications. www.lth.co.uk • Custom IP66 enclosure • Available as head mounted or Wall mounted versions • Large back lit multifunction display • Displays pH or Redox and temperature units • Dual isolated 4-20mA & relay outputs • Relays can be configured for On/off, Time & Pulse Proportional • 3 Digital inputs to control specific functions • Supplied complete with sensor & ‘T’ Piece. (Headmount version only) • Purpose built detachable electrodes for easy calibration & maintenance • Differential input to overcome earth loop problems • Measured process & temperature can be displayed together Features • Bar graph indication of current output status • Cable termination via detachable connectors, no need to open enclosure • Low voltage operation 15-30v DC • Simple intuitive programming • On Line multilingual Help with text error messages
