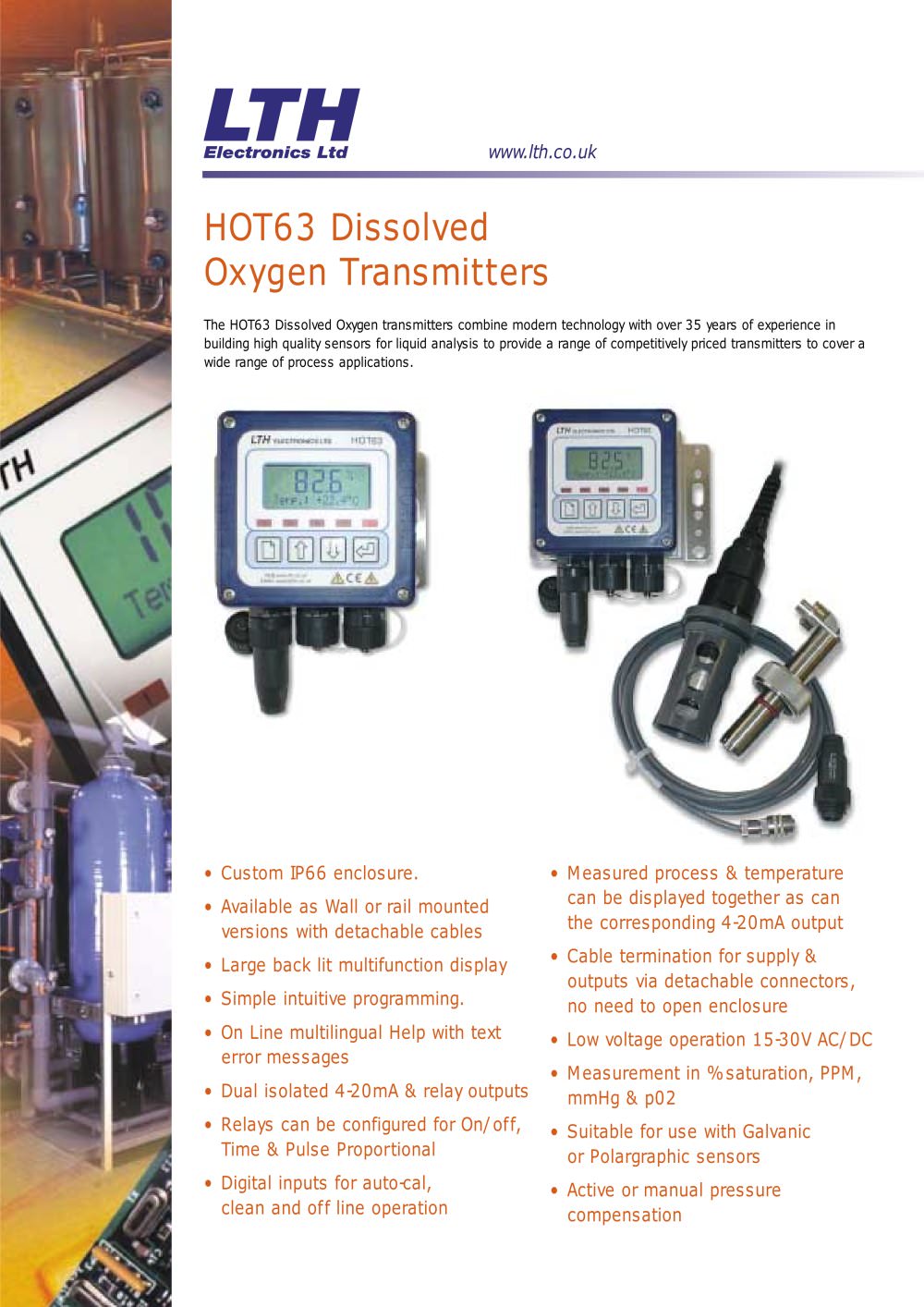

HOT63 Dissolved Oxygen Transmitters www.lth.co.uk The HOT63 Dissolved Oxygen transmitters combine modern technology with over 35 years of experience in building high quality sensors for liquid analysis to provide a range of competitively priced transmitters to cover a wide range of process applications. • Custom IP66 enclosure. • Available as Wall or rail mounted versions with detachable cables • Large back lit multifunction display • Simple intuitive programming. • On Line multilingual Help with text error messages • Dual isolated 4-20mA & relay outputs • Relays can be configured for On/off, Time & Pulse Proportional • Digital inputs for auto-cal, clean and off line operation • Measured process & temperature can be displayed together as can the corresponding 4-20mA output • Cable termination for supply & outputs via detachable connectors, no need to open enclosure • Low voltage operation 15-30V AC/DC • Measurement in % saturation, PPM, mmHg & p02 • Suitable for use with Galvanic or Polargraphic sensors • Active or manual pressure compensation

Two different options of the HOT63 transmitter will be available with the Base model offering a single industry standard 4-20mA output. The Advanced HOT63 will offer two 4-20mA outputs enabling the process temperature to also be measured and transmitted as well as the Dissolved Oxygen value. The Advanced HOT63 model will also have 2 relay outputs for process control and also has 3 digital inputs for remote range changing via a plc and Automatic pressure compensation from an external pressure transmitter. Both models are available as wall / rail mounting versions with a detachable cable & a choice...

Specification Sensor Input Galvanic (Mackereth) 0 to 9.999mA or Polargraphic (Clark) 0 to 500.0nA Sensor Bias Voltage Software Programmable, –1.000 to +1.000V, Resolution ±1mV, Output accuracy ±3mV Sensor Membrane Software Programmable Correction Factor 0 to 9999 Sensor Cable Up to 10m Ranges of 0 - 199.9% saturation, Measurement 0 - 20.00ppm Accuracy ±3.0uA in Galvanic Mode, ±1.0nA in Polargraphic Mode Linearity ±0.1% of Range Repeatability ±0.1% of Range Temperature Sensor ±0.1% of Range Measurement Range 4 wire interface, operating on up to 100m of cable. Software selectable sensor type including...

LTH Electronics Ltd Chaul End Lane, Luton, Beds. LU4 8EZ England Tel: +44 (0)1582 593693 Fax: +44 (0)1582 598036 email: [email protected] web: www.lth.co.uk LTH Electronics Ltd reserves the right to make changes to this data sheet or the product without notice, as part of our policy of continued developments and improvements. All care has been taken to ensure the accuracy of information contained in this data sheet. However we cannot accept responsibility for any errors or damages resulting from errors or inaccuracies of information contained herein. These products comply with current European...
