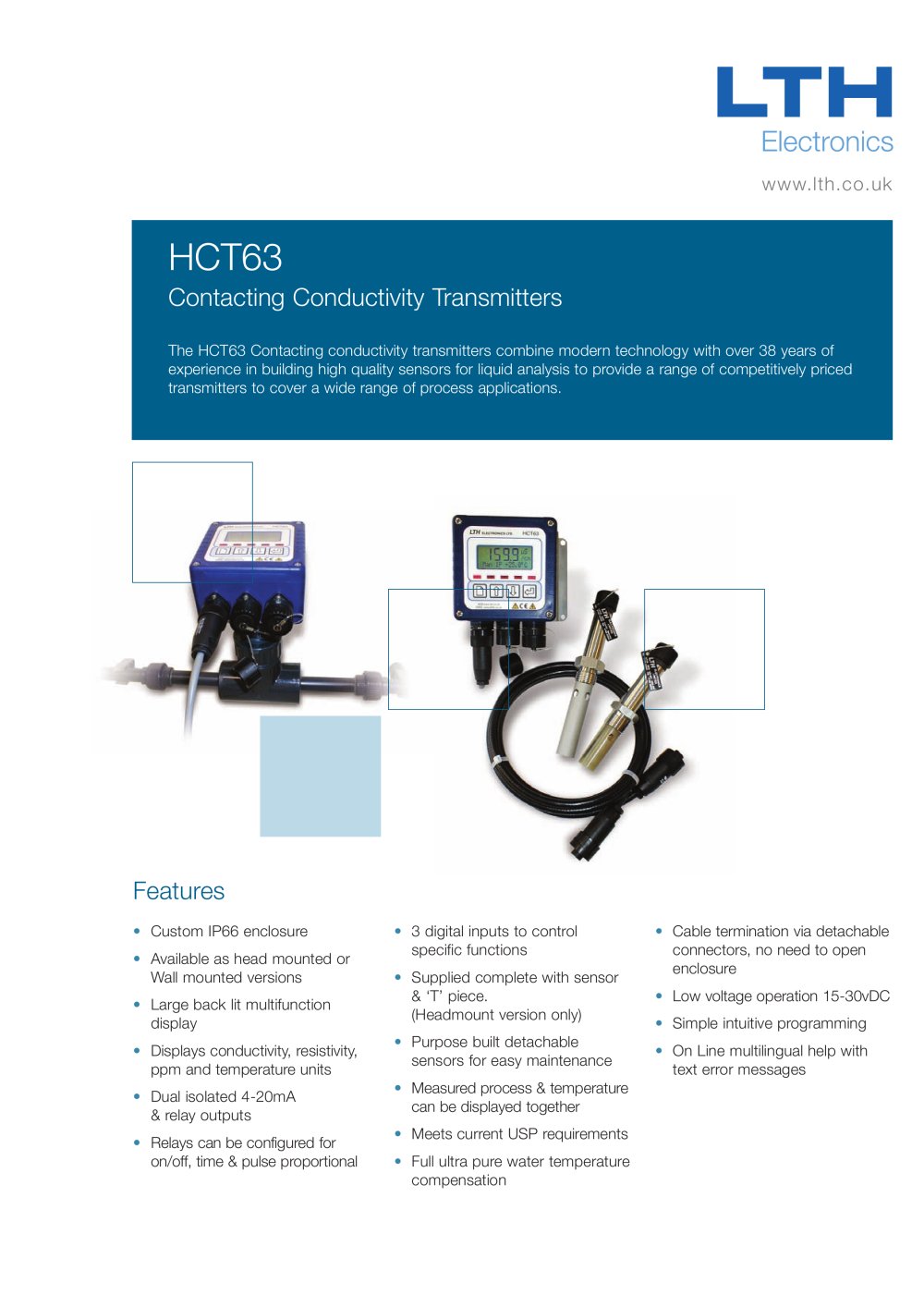

HCT63 Contacting Conductivity Transmitters The HCT63 Contacting conductivity transmitters combine modern technology with over 38 years of experience in building high quality sensors for liquid analysis to provide a range of competitively priced transmitters to cover a wide range of process applications. www.lth.co.uk • Custom IP66 enclosure • Available as head mounted or Wall mounted versions • Large back lit multifunction display • Displays conductivity, resistivity, ppm and temperature units • Dual isolated 4-20mA & relay outputs • Relays can be configured for on/off, time & pulse proportional • 3 digital inputs to control specific functions • Supplied complete with sensor & ‘T’ piece. (Headmount version only) • Purpose built detachable sensors for easy maintenance • Measured process & temperature can be displayed together • Meets current USP requirements • Full ultra pure water temperature compensation Features • Cable termination via detachable connectors, no need to open enclosure • Low voltage operation 15-30vDC • Simple intuitive programming • On Line multilingual help with text error messages
