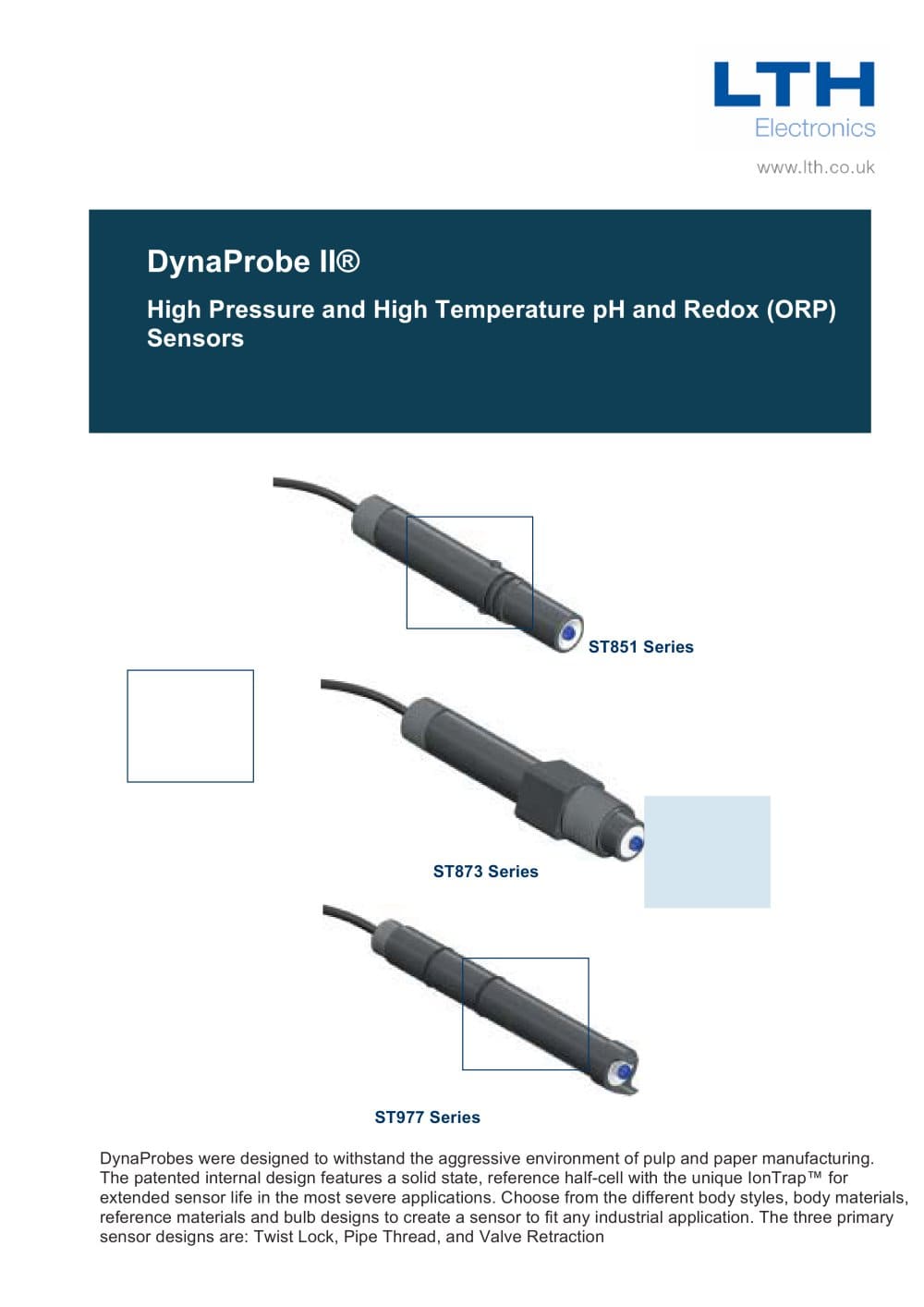

DynaProbe II® pH and ORP Sensors High Pressure and High Temperature Sensors DynaProbes were designed to withstand the aggressive environment of pulp and paper manufacturing. The patented internal design features a solid state, reference half-cell with the unique IonTrap™ for extended sensor life in the most severe applications. Choose from the different body styles,body materials, reference materials and bulb designs to create a sensor to fit any industrial application. The three primary sensor designs are: Twist Lock, Pipe Thread,and Valve Retraction. Twist Lock Seals into the twist-lock housing adapter via dual o-rings for in-line measurements. The body is molded from chemical-resistant Ryton (PPS) and the reference junction is porous Teflon. ST851 Series Specifications pH Range. . . . . . . . . . . . . . . . . . . . . . . 0 – 14 pH ORP Range. . . . . . . . . . . . . . . . . . . . . . ± 5000 mV Temperature Range . . . . . . . . . . . . . 0 - 120º C Maximum Pressure. . . . . . . . . . . . . . 50 psig at 120º C Standard Wetted Materials. . . . . . . Ryton,Teflon, Glass,Viton o-rings Options Available. . . . . . . . . . . . . . . . . Dome bulb, Flat bulb, or High pH glass Compatible Housings . . . . . . . . . . . . Twist-Lock Adapter for threaded tee Pipe Thread These DynaProbes are designed for in-line or submersion applications. The sensor body threads directly into a tee or end of a pipe and is molded from chemical-resistant Ryton. ST873 and ST956 Series Specifications pH Range. . . . . . . . . . . . . . . . . . . . . . . 0 – 14 pH ORP Range. . . . . . . . . . . . . . . . . . . . . . ± 5000 mV Temperature Range . . . . . . . . . . . . . 0 - 140º C Maximum Pressure. . . . . . . . . . . . . . 150 psig at 120º C Standard Wetted Materials. . . . . . . Ryton,Teflon and Glass Options Available. . . . . . . . . . . . . . . . . Dome bulb, Flat bulb, or High pH glass Compatible Housings . . . . . . . . . . . 1" NPT or 3/4" NPT fittings Valve Retraction This sensor model is designed for use with the insertion/retraction assemblies. The sensor body, with integral bulb guard and antiblowout restraint, is molded from chemical-resistant materials and the reference junction is porous Teflon. ST977 Series Specifications pH Range. . . . . . . . . . . . . . . . . . . . . . . 0 – 14 pH ORP Range. . . . . . . . . . . . . . . . . . . . . . ± 5000 mV Temperature Range . . . . . . . . . . . . . 0 - 120º C Maximum Pressure. . . . . . . . . . . . . . 100 psig at 90º C Standard Wetted Materials. . . . . . . Ryton,Teflon and Glass Compatible Housings . . . . . . . . . . . Valve retraction assembly Insertion sensor assembly These sensors are also available with a flat bulb design to allow the turbulence of the process to clean the sensor,minimizing clogging. ST977 Series ST873 Series ST851 Series All three designs are available with the following options: • ORP Measurement • Built-in Temperature Compensation • Solution Ground • Custom Cable Length
