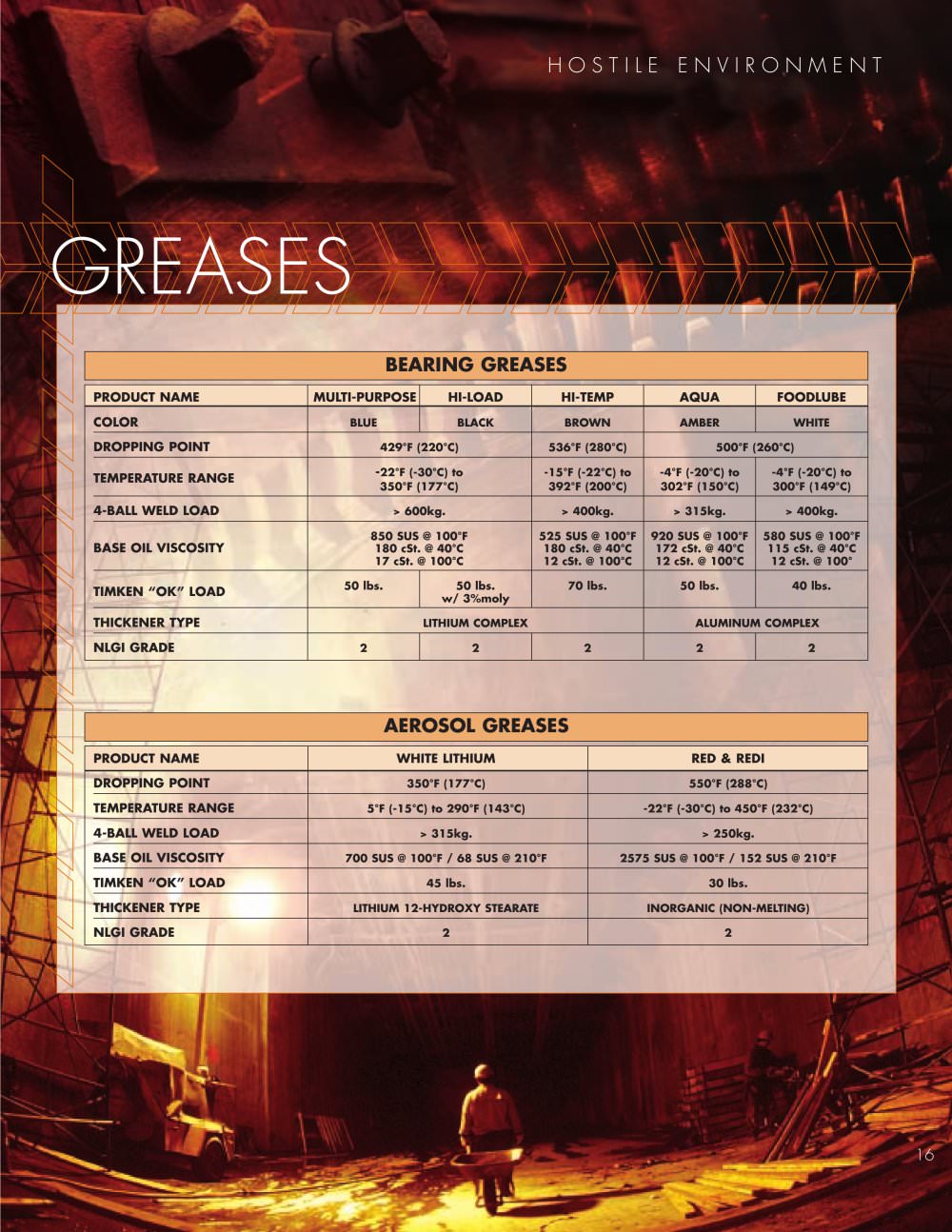

HOSTILE ENVIRONMENT


	BEARING GREASES
	PRODUCT NAME	MULTI-PURPOSE	HI-LOAD	HI-TEMP	AQUA	FOODLUBE
	COLOR	BLUE	BLACK	BROWN	AMBER	WHITE
	DROPPING POINT	429°F (220°C)		536°F (280°C)	500°F (260°C)
	TEMPERATURE RANGE	-22°F (-30°C) to 350°F (177°C)		-15°F (-22°C) to 392°F (200°C)	-4°F (-20°C) to 302°F (150°C)	-4°F (-20°C) to 300°F (149°C)
	4-BALL WELD LOAD	> 600kg.		> 400kg.	> 315kg.	> 400kg.
	BASE OIL VISCOSITY	850 SUS @ 100°F 180 cSt. @ 40°C 17 cSt. @ 100°C		525 SUS @ 100°F 180 cSt. @ 40°C 12 cSt. @ 100°C	920 SUS @ 100°F 172 cSt. @ 40°C 12 cSt. @ 100°C	580 SUS @ 100°F 115 cSt. @ 40°C 12 cSt. @ 100°
	TIMKEN "OK" LOAD	50 lbs.	50 lbs. w/ 3%moly	70 lbs.	50 lbs.	40 lbs.
	THICKENER TYPE	LITHIUM COMPLEX			ALUMINUM COMPLEX
	NLGI GRADE	2	2	2	2	2

2


	AEROSOL GREASES
	PRODUCT NAME	WHITE LITHIUM	RED & REDI
	DROPPING POINT	350°F (177°C)	550°F (288°C)
	TEMPERATURE RANGE	5°F (-15°C) to 290°F (143°C)	-22°F (-30°C) to 450°F (232°C)
	4-BALL WELD LOAD	> 315kg.	> 250kg.
	BASE OIL VISCOSITY	700 SUS @ 100°F / 68 SUS @ 210°F	2575 SUS @ 100°F / 152 SUS @ 210°F
	TIMKEN "OK" LOAD	45 lbs.	30 lbs.
	THICKENER TYPE	LITHIUM 12-HYDROXY STEARATE	INORGANIC (NON-MELTING)
	NLGI GRADE	2	2
