Lowara catalogue 50 Hz Surface Pumps - 79 Pages

Lowara

General Catalogue >

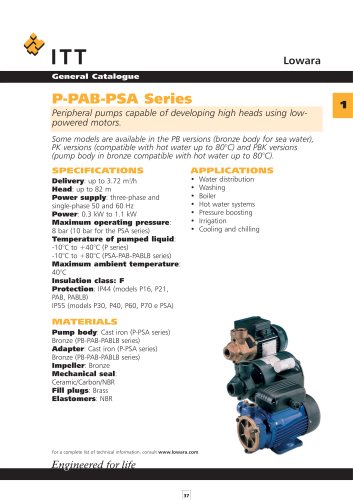

P-PAB-PSA Series

Peripheral pumps capable of developing high heads using low-powered motors.

1

Some models are available in the PB versions (bronze body for sea water),PK versions (compatible with hot water up to 80C) and PBK versions
(pump body in bronze compatible with hot water up to 80аC). SPECIFICATIONS APPLICATIONS

Delivery : up to 3.72 m >
3 /h Water distributionՕWashing
Boiler
ՕHot water systems
Pressure boosting
ՕIrrigation
Cooling and chilling Head : up to 82 m : IP44 (models P16, P21,PAB, PABLB)
IP55 (models P30, P40, P60, P70 e PSA) Power supply Power Maximum ambient temperature Insulation class: F
Protection : 0.3 kW to 1.1 kW : three-phase andsingle-phase 50 and 60 Hz :40հC Maximum operating pressure Temperature of pumped liquid :8 bar (10 bar for the PSA series) :-10C to +40аC (P series)
-10C to +80аC (PSA-PAB-PABLB series) >

MATERIALS

Pump body Adapter Impeller : Cast iron (P-PSA series)Bronze (PB-PAB-PABLB series) : Bronze : Cast iron (P-PSA series)Bronze (PB-PAB-PABLB series) Mechanical seal Fill plugs : Brass :Ceramic/Carbon/NBR Elastomers : NBR >
For a complete list of technical information, consult www.lowara.com 37 size="-1">
