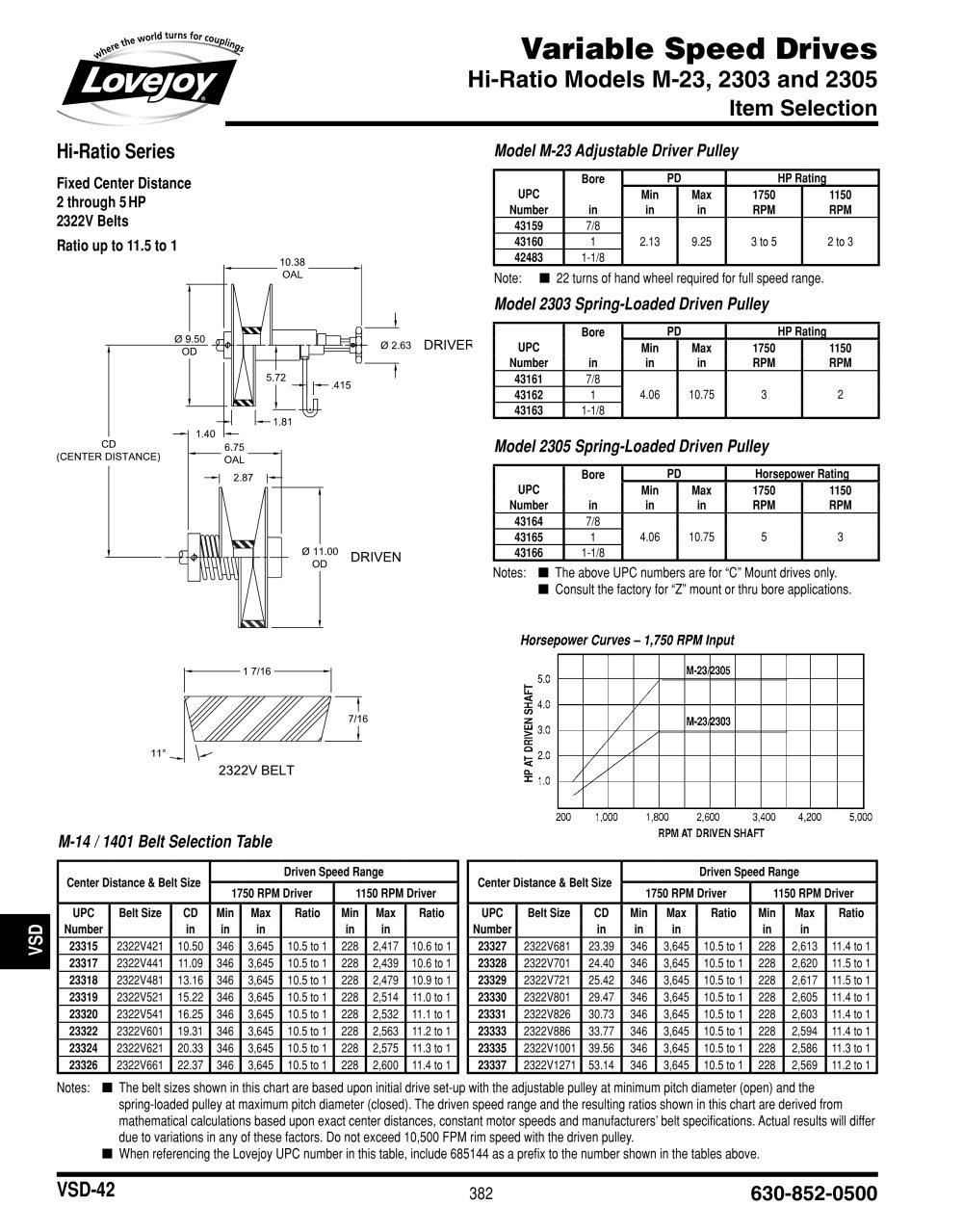

Lovejoy

Hi-Ratio Series

Fixed Center Distance 2 through 5 HP 2322V Belts

Ratio up to 11.5 to 1

Model M-23 Adjustable Driver Pulley


	Bore	PD		HP Rating I
UPC		Min	Max	1750	1150
Number	in	in	in	RPM	RPM
43159	7/8
43160	1	2.13	9.25	3 to 5	2 to 3
42483	1-1/8

10.38 oal "

Note: ■ 22 turns of hand wheel required for full speed range.

Model 2303 Spring-Loaded Driven Pulley


		Bore
	UPC
	Number	in
	43161	7/8
	43162	1
	43163	1-1/8

HP Rating

pjjjjll;- 0 2.63 DRIVER

Min in

Max in

1750 RPM

1150 RPM

I —n '—⁴¹⁵

4.06

10.75

Model 2305 Spring-Loaded Driven Pulley

(center distance)


	UPC Number	Bore in	PD		Horsepower Rating
⁰l¹_n°° DRIVEN	UPC Number	Bore in	Min in	Max in	1750 RPM	1150 RPM
	43164	7/8	4.06	10.75	5	3
	43165	1
	43166	1-1/8
	43166	1-1/8

■ Consult the factory for "Z" mount or thru bore applications.

7/16

11°.

2322V BELT

M-14 /1401 Belt Selection Table


Center Distance & Belt Size			Driven Speed Range
Center Distance & Belt Size			1750 RPM Driver			1150 RPM Driver
UPC	Belt Size	CD	Min	Max	Ratio	Min	Max	Ratio
Number		in	in	in		in	in
23315	2322V421	10.50	346	3,645	10.5 to 1	228	2,417	10.6 to 1
23317	2322V441	11.09	346	3,645	10.5 to 1	228	2,439	10.6 to 1
23318	2322V481	13.16	346	3,645	10.5 to 1	228	2,479	10.9 to 1
23319	2322V521	15.22	346	3,645	10.5 to 1	228	2,514	11.0 to 1
23320	2322V541	16.25	346	3,645	10.5 to 1	228	2,532	11.1 to 1
23322	2322V601	19.31	346	3,645	10.5 to 1	228	2,563	11.2 to 1
23324	2322V621	20.33	346	3,645	10.5 to 1	228	2,575	11.3 to 1
23326	2322V661	22.37	346	3,645	10.5 to 1	228	2,600	11.4 to 1


Center Distance & Belt Size			Driven Speed Range \|
Center Distance & Belt Size			1750 RPM Driver			1150 RPM Driver \|
UPC	Belt Size	CD	Min	Max	Ratio	Min	Max	Ratio
Number		in	in	in		in	in
23327	2322V681	23.39	346	3,645	10.5 to 1	228	2,613	11.4 to 1
23328	2322V701	24.40	346	3,645	10.5 to 1	228	2,620	11.5 to 1
23329	2322V721	25.42	346	3,645	10.5 to 1	228	2,617	11.5 to 1
23330	2322V801	29.47	346	3,645	10.5 to 1	228	2,605	11.4 to 1
23331	2322V826	30.73	346	3,645	10.5 to 1	228	2,603	11.4 to 1
23333	2322V886	33.77	346	3,645	10.5 to 1	228	2,594	11.4 to 1
23335	2322V1001	39.56	346	3,645	10.5 to 1	228	2,586	11.3 to 1
23337	2322V1271	53.14	346	3,645	10.5 to 1	228	2,569	11.2 to 1

Notes: ■ The belt sizes shown in this chart are based upon initial drive set-up with the adjustable pulley at minimum pitch diameter (open) and the

spring-loaded pulley at maximum pitch diameter (closed). The driven speed range and the resulting ratios shown in this chart are derived from mathematical calculations based upon exact center distances, constant motor speeds and manufacturers' belt specifications. Actual results will differ due to variations in any of these factors. Do not exceed 10,500 FPM rim speed with the driven pulley. ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown in the tables above.
