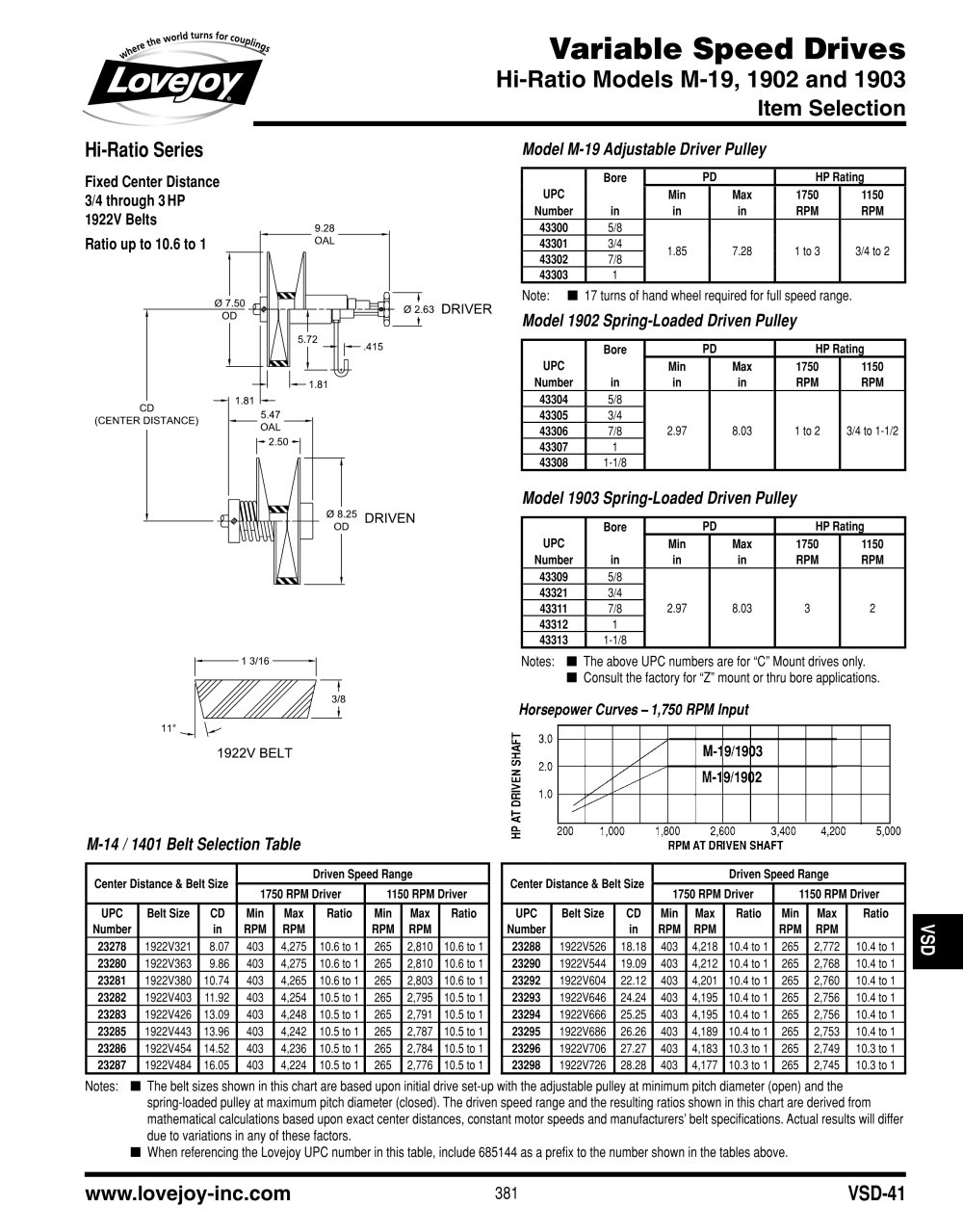

Lovejoy

Hi-Ratio Series

Fixed Center Distance 3/4 through 3 HP 1922V Belts

Ratio up to 10.6 to 1

Model M-19 Adjustable Driver Pulley


UPC Number	Bore in	PD		HP Rating \|
UPC Number	Bore in	Min in	Max in	1750 RPM	1150 RPM
43300	5/8	1.85	7.28	1 to 3	3/4 to 2
43301	3/4
43302	7/8
43303	1

Note: ■ 17 turns of hand wheel required for full speed range.

Model 1902 Spring-Loaded Driven Pulley

^E^;- 0 2.63 DRIVER


UPC Number	Bore in	PD		HP Rating I
UPC Number	Bore in	Min in	Max in	1750 RPM	1150 RPM
43304	5/8	2.97	8.03	1 to 2	3/4 to 1-1/2
43305	3/4
43306	7/8
43307	1
43308	1-1/8

.415

(center distance)

Model 1903 Spring-Loaded Driven Pulley

0a25 DRIVEN


	Bore	PD		HP Rating I
UPC		Min	Max	1750	1150
Number	in	in	in	RPM	RPM
43309	5/8
43321	3/4
43311	7/8	2.97	8.03	3	2
43312	1
43313	1-1/8
43313	1-1/8
Notes: ■ The above UPC numbers are for "C" Mount drives only.

■ Consult the factory for "Z" mount or thru bore applications. Horsepower Curves -1,750 RPM Input

1922V BELT

M-14 /1401 Belt Selection Table


Center Distance & Belt Size			Driven Speed Range
Center Distance & Belt Size			1750 RPM Driver			1150 RPM Driver
UPC Number	Belt Size	CD in	Min RPM	Max RPM	Ratio	Min RPM	Max RPM	Ratio
23278	1922V321	8.07	403	4,275	10.6 to 1	265	2,810	10.6 to 1
23280	1922V363	9.86	403	4,275	10.6 to 1	265	2,810	10.6 to 1
23281	1922V380	10.74	403	4,265	10.6 to 1	265	2,803	10.6 to 1
23282	1922V403	11.92	403	4,254	10.5 to 1	265	2,795	10.5 to 1
23283	1922V426	13.09	403	4,248	10.5 to 1	265	2,791	10.5 to 1
23285	1922V443	13.96	403	4,242	10.5 to 1	265	2,787	10.5 to 1
23286	1922V454	14.52	403	4,236	10.5 to 1	265	2,784	10.5 to 1
23287	1922V484	16.05	403	4,224	10.5 to 1	265	2,776	10.5 to 1


Center Distance & Belt Size			Driven Speed Range \|
Center Distance & Belt Size			1750 RPM Driver			1150 RPM Driver \|
UPC Number	Belt Size	CD in	Min RPM	Max RPM	Ratio	Min RPM	Max RPM	Ratio
23288	1922V526	18.18	403	4,218	10.4 to 1	265	2,772	10.4 to 1
23290	1922V544	19.09	403	4,212	10.4 to 1	265	2,768	10.4 to 1
23292	1922V604	22.12	403	4,201	10.4 to 1	265	2,760	10.4 to 1
23293	1922V646	24.24	403	4,195	10.4 to 1	265	2,756	10.4 to 1
23294	1922V666	25.25	403	4,195	10.4 to 1	265	2,756	10.4 to 1
23295	1922V686	26.26	403	4,189	10.4 to 1	265	2,753	10.4 to 1
23296	1922V706	27.27	403	4,183	10.3 to 1	265	2,749	10.3 to 1
23298	1922V726	28.28	403	4,177	10.3 to 1	265	2,745	10.3 to 1

Notes: ■ The belt sizes shown in this chart are based upon initial drive set-up with the adjustable pulley at minimum pitch diameter (open) and the

spring-loaded pulley at maximum pitch diameter (closed). The driven speed range and the resulting ratios shown in this chart are derived from mathematical calculations based upon exact center distances, constant motor speeds and manufacturers' belt specifications. Actual results will differ due to variations in any of these factors. ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown in the tables above.
