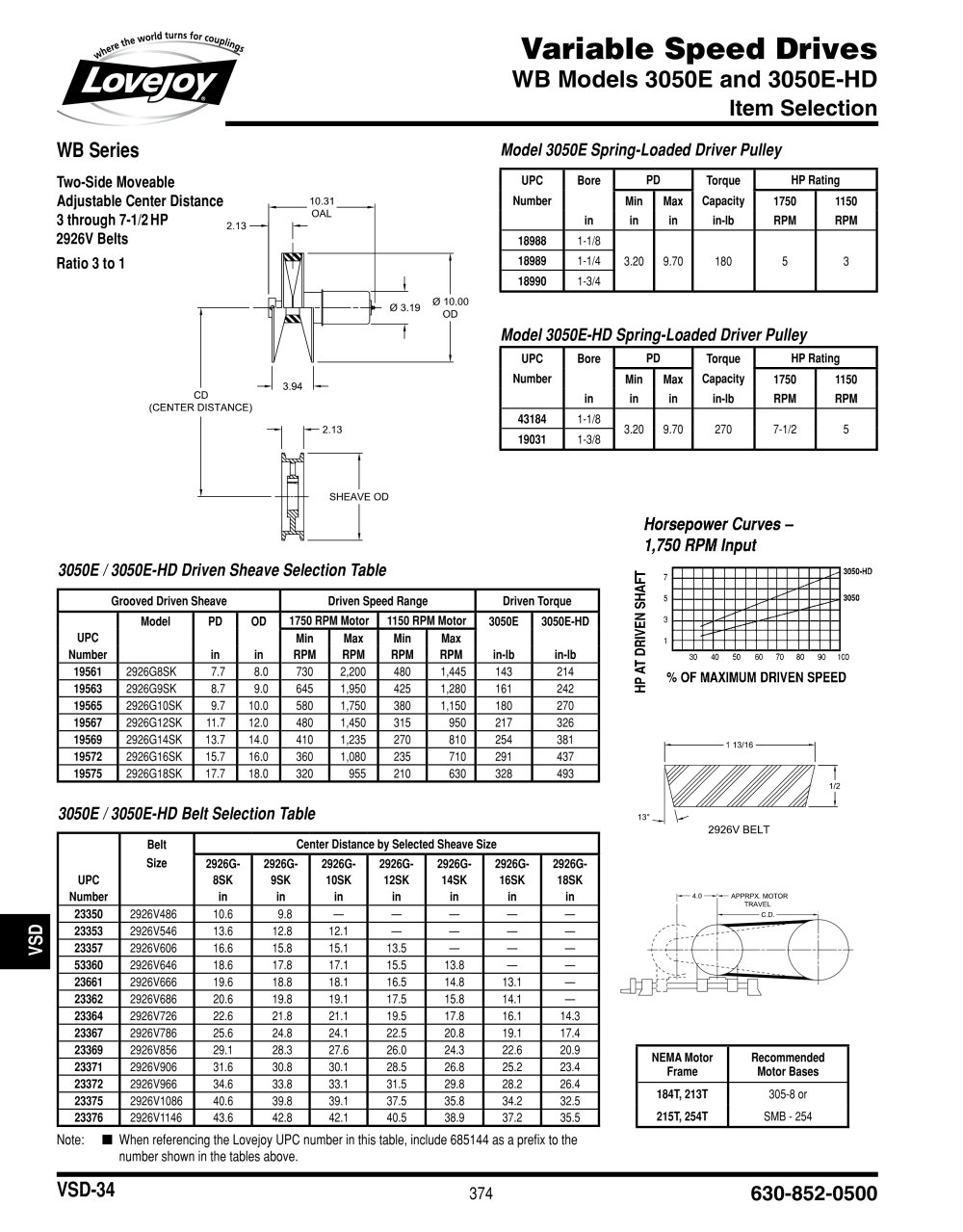

Lovejoy
WB Series
Two-Side Moveable Adjustable Center Distance 3 through 7-1/2 HP 2926V Belts
Ratio 3 to 1
Model 3050E Spring-Loaded Driver Pulley
1
UPC
Bore
PD
Torque
HP Rating |
Number
Min
Max
Capacity
1750
1150
in
in
in
in-lb
RPM
RPM
18988
1-1/8
18989
1-1/4
3.20
9.70
180
5
3
18990
1-3/4
Model 3050E-HD Spring-Loaded Driver Pulley
UPC
Bore
PD
Torque
HP Rating
Number
Min
Max
Capacity
1750
1150
in
in
in
in-lb
RPM
RPM
43184
1-1/8
3.20
9.70
270
7-1/2
5
19031
1-3/8
-f- 03.19 0£°°
CD
(CENTER DISTANCE)
2.13
1 Г
SHEAVE OD
3050E / 3050E-HD Driven Sheave Selection Table
Grooved Driven Sheave
Driven Speed Range
Driven Torque
UPC Number
Model
PD in
OD in
1750 RPM Motor
1150 RPM Motor
3050E in-lb
3050E-HD in-lb
Min RPM
Max RPM
Min RPM
Max RPM
19561
2926G8SK
7.7
8.0
730
2,200
480
1,445
143
214
19563
2926G9SK
8.7
9.0
645
1,950
425
1,280
161
242
19565
2926G10SK
9.7
10.0
580
1,750
380
1,150
180
270
19567
2926G12SK
11.7
12.0
480
1,450
315
950
217
326
19569
2926G14SK
13.7
14.0
410
1,235
270
810
254
381
19572
2926G16SK
15.7
16.0
360
1,080
235
710
291
437
19575
2926G18SK
17.7
18.0
320
955
210
630
328
493
3050E / 3050E-HD Belt Selection Table
13° J W
2926V BELT
Belt
Center Distance by Selected Sheave Size
Size
2926G-
2926G-
2926G-
2926G-
2926G-
2926G-
2926G-
UPC
8SK
9SK
10SK
12SK
14SK
16SK
18SK
Number
in
in
in
in
in
in
in
23350
2926V486
10.6
9.8
—
—
—
—
—
23353
2926V546
13.6
12.8
12.1
—
—
—
—
23357
2926V606
16.6
15.8
15.1
13.5
—
—
—
53360
2926V646
18.6
17.8
17.1
15.5
13.8
—
—
23661
2926V666
19.6
18.8
18.1
16.5
14.8
13.1
—
23362
2926V686
20.6
19.8
19.1
17.5
15.8
14.1
—
23364
2926V726
22.6
21.8
21.1
19.5
17.8
16.1
14.3
23367
2926V786
25.6
24.8
24.1
22.5
20.8
19.1
17.4
23369
2926V856
29.1
28.3
27.6
26.0
24.3
22.6
20.9
23371
2926V906
31.6
30.8
30.1
28.5
26.8
25.2
23.4
23372
2926V966
34.6
33.8
33.1
31.5
29.8
28.2
26.4
23375
2926V1086
40.6
39.8
39.1
37.5
35.8
34.2
32.5
23376
2926V1146
43.6
42.8
42.1
40.5
38.9
37.2
35.5
-APPRPX. MOTOR TRAVEL -CD.-
О CO
>
NEMA Motor Frame
Recommended Motor Bases
184T, 213T 215T, 254T
305-8 or SMB - 254
Note: ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown in the tables above.
