Lovejoy

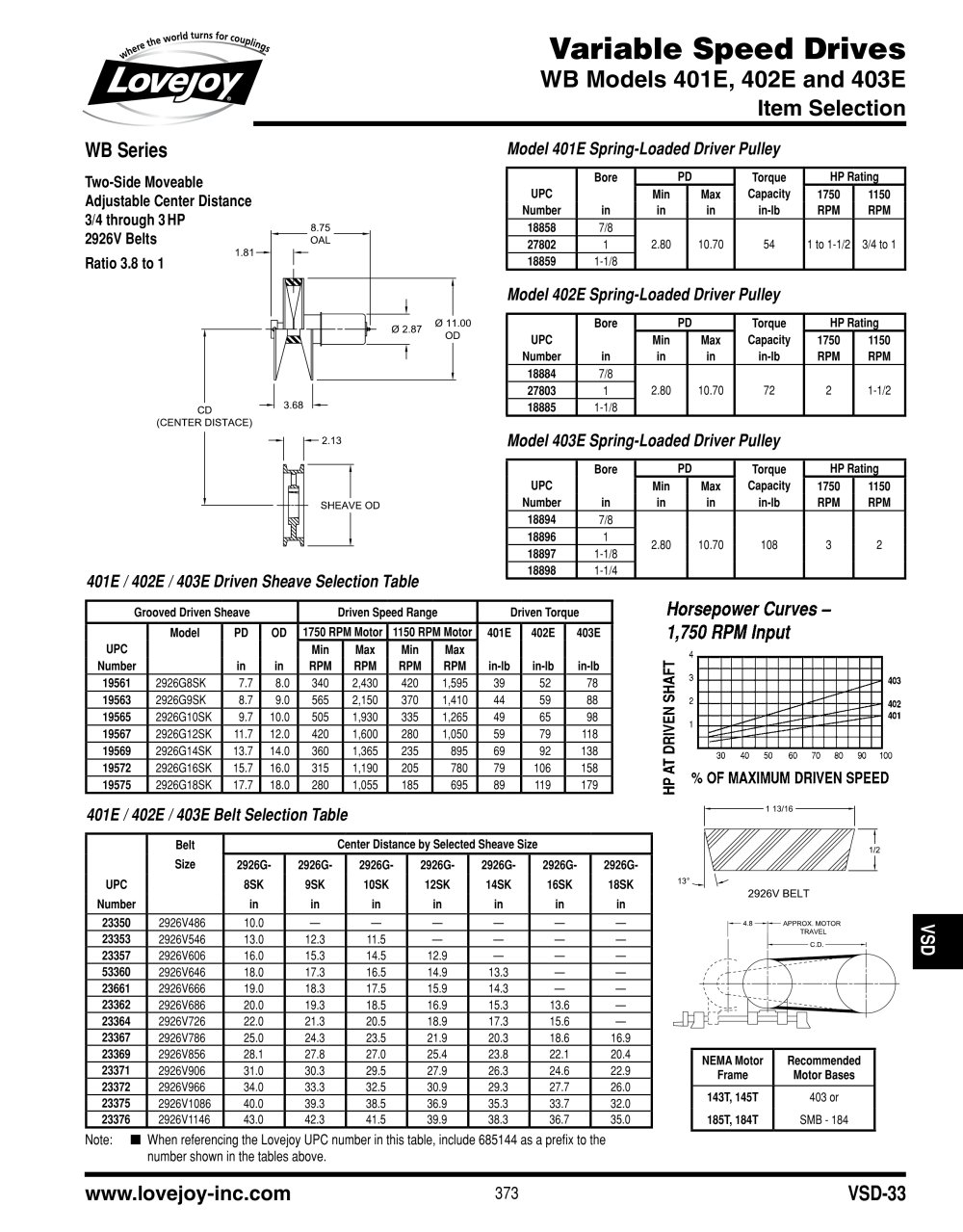

Model 401E Spring-Loaded Driver Pulley
WB Series
Bore
PD
Torque
HP Rating |
UPC
Min
Max
Capacity
1750
1150
Number
in
in
in
in-lb
RPM
RPM
18858
7/8
27802
1
2.80
10.70
54
1 to 1-1/2
3/4 to 1
18859
1-1/8
Two-Side Moveable Adjustable Center Distance 3/4 through 3 HP 2926V Belts
1.81 -H
Ratio 3.8 to 1
Model 402E Spring-Loaded Driver Pulley
Bore
UPC
Number
in
18884
7/8
27803
1
18885
1-1/8
HP Rating |
1750 RPM
1150 RPM
2
1-1/2
PD
Torque Capacity
in-lb
Min in
Max in
2.80
10.70
72
CD
(CENTER DISTACE)
Model 403E Spring-Loaded Driver Pulley
1 г
2.13
Bore
PD
Torque
HP Rating |
UPC
Min
Max
Capacity
1750
1150
Number
in
in
in
in-lb
RPM
RPM
18894
7/8
18896
1
2.80
10.70
108
3
2
18897
1-1/8
18898
1-1/4
SHEAVE OD
401E / 402E / 403E Driven Sheave Selection Table
Grooved Driven Sheave
Driven Speed Range
Driven Torque
1750 RPM Motor
1150 RPM Motor
Model
PD
OD
401E 402E 403E
UPC Number
Min RPM
Max
RPM
Min
RPM
Max
RPM
in
in-lb
in-lb
in-lb
n
2926G8SK
2,430
19561
7.7
8.0
340
420
1,595
39
52
78
2926G9SK
19563
8.7
9.0
565
2,150
370
1,410
44
59
88
2926G10SK
1,930
19565
9.7
10.0
505
335
1,265
49
65
98
2926G12SK
19567
11.7
12.0
420
1,600
280
1,050
59
79
118
2926G14SK
19569
13.7
14.0
360
1,365
235
895
69
92
138
2926G16SK
19572
15.7
16.0
315
1,190
205
780
79
106
158
2926G18SK
19575
17.7
18.0
280
1,055
185
695
89
119
179
401E / 402E / 403E Belt Selection Table
Center Distance by Selected Sheave Size
Belt Size
2926G-8SK in
2926G-9SK
in
2926G-10SK
in
2926G-12SK
in
2926G-14SK
in
2926G-16SK
in
2926G-18SK
in
UPC
Number
23350
2926V486
10.0
2926V546
23353
13.0
12.3
11.5
23357
2926V606
16.0
15.3
14.5
12.9
2926V646
53360
18.0
17.3
16.5
14.9
13.3
23661
2926V666
19.0
18.3
17.5
15.9
14.3
2926V686
23362
20.0
19.3
18.5
16.9
15.3
13.6
23364
2926V726
22.0
21.3
20.5
18.9
17.3
15.6
2926V786
23367
25.0
24.3
23.5
21.9
20.3
18.6
16.9
NEMA Motor
Recommended
Frame
Motor Bases
143T, 145T
403 or
185T, 184T
SMB - 184
23369
2926V856
28.1
27.8
27.0
25.4
23.8
22.1
20.4
2926V906
23371
31.0
30.3
29.5
27.9
26.3
24.6
22.9
23372
2926V966
34.0
33.3
32.5
30.9
29.3
27.7
26.0
2926V1086
23375
40.0
39.3
38.5
36.9
35.3
33.7
32.0
2926V1146
23376
43.0
42.3
41.5
39.9
38.3
36.7
35.0
Note: ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown in the tables above.
