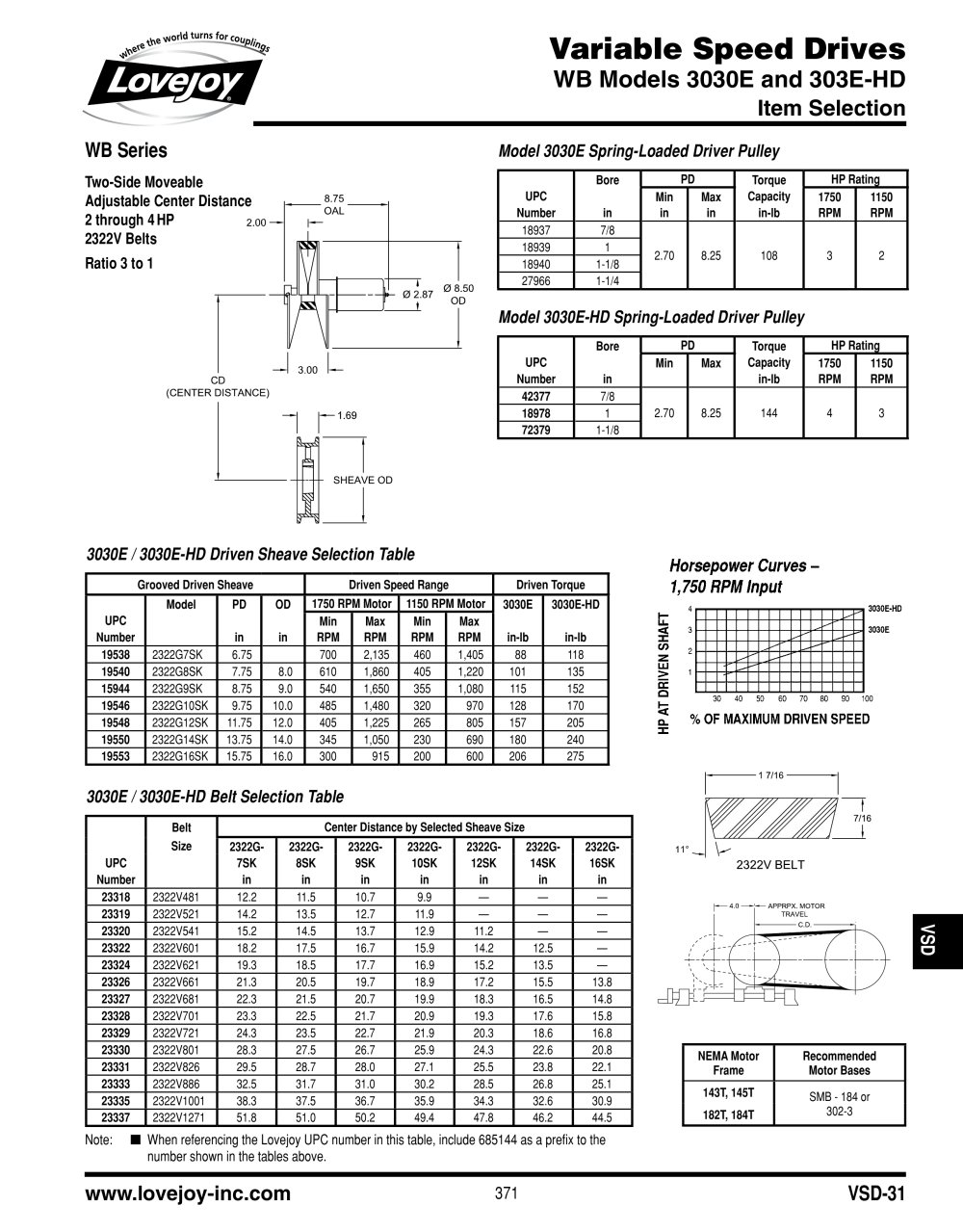

Lovejoy
WB Series
Two-Side Moveable Adjustable Center Distance 2 through 4 HP 2322V Belts
Ratio 3 to 1
Model 3030E Spring-Loaded Driver Pulley
Bore
UPC
Number
in
18937
7/8
18939
1
18940
1-1/8
27966
1-1/4
PD
HP Rating
Torque Capacity in-lb
Min in
Max in
1750 RPM
1150 RPM
2.70
8.25
108
3
2
Model 3030E-HD Spring-Loaded Driver Pulley
Bore
PD 1
UPC
Min
Max
Number
in
42377
7/8
18978
1
2.70
8.25
72379
1-1/8
HP Rating
Torque Capacity
in-lb
1750 RPM
1150 RPM
CD
(CENTER DISTANCE)
144
4
3
i r
1.69
SHEAVE OD
3030E / 3030E-HD Driven Sheave Selection Table
Grooved Driven Sheave
Driven Speed Range
Driven Torque
1750 RPM Motor
1150 RPM Motor
Model
PD
OD
3030E 3030E-HD
UPC Number
Min RPM
Max
RPM
Min
RPM
Max
RPM
in
in
in-lb
in-lb
2322G7SK
19538
6.75
700
2,135
460
1,405
88
118
2322G8SK
1,860
19540
7.75
8.0
610
405
1,220
101
135
2322G9SK
15944
8.75
9.0
540
1,650
355
1,080
115
152
2322G10SK
19546
9.75
10.0
485
1,480
320
970
128
170
2322G12SK
19548
11.75
12.0
405
1,225
265
805
157
205
2322G14SK
19550
13.75
14.0
345
1,050
230
690
180
240
2322G16SK
19553
15.75
16.0
300
915
200
600
206
275
3030E / 3030E-HD Belt Selection Table
Belt
Center Distance by Selected Sheave Size
Size
2322G-
2322G-
2322G-
2322G-
2322G-
2322G-
2322G-
UPC
7SK
8SK
9SK
10SK
12SK
14SK
16SK
Number
in
in
in
in
in
in
in
23318
2322V481
12.2
11.5
10.7
9.9
—
—
—
23319
2322V521
14.2
13.5
12.7
11.9
—
—
—
23320
2322V541
15.2
14.5
13.7
12.9
11.2
—
—
23322
2322V601
18.2
17.5
16.7
15.9
14.2
12.5
—
23324
2322V621
19.3
18.5
17.7
16.9
15.2
13.5
—
23326
2322V661
21.3
20.5
19.7
18.9
17.2
15.5
13.8
23327
2322V681
22.3
21.5
20.7
19.9
18.3
16.5
14.8
23328
2322V701
23.3
22.5
21.7
20.9
19.3
17.6
15.8
23329
2322V721
24.3
23.5
22.7
21.9
20.3
18.6
16.8
23330
2322V801
28.3
27.5
26.7
25.9
24.3
22.6
20.8
23331
2322V826
29.5
28.7
28.0
27.1
25.5
23.8
22.1
23333
2322V886
32.5
31.7
31.0
30.2
28.5
26.8
25.1
23335
2322V1001
38.3
37.5
36.7
35.9
34.3
32.6
30.9
23337
2322V1271
51.8
51.0
50.2
49.4
47.8
46.2
44.5
2322V BELT
NEMA Motor Frame
Recommended Motor Bases
143T, 145T
182T, 184T
SMB -184 or
302-3
Note: ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown in the tables above.
