Lovejoy

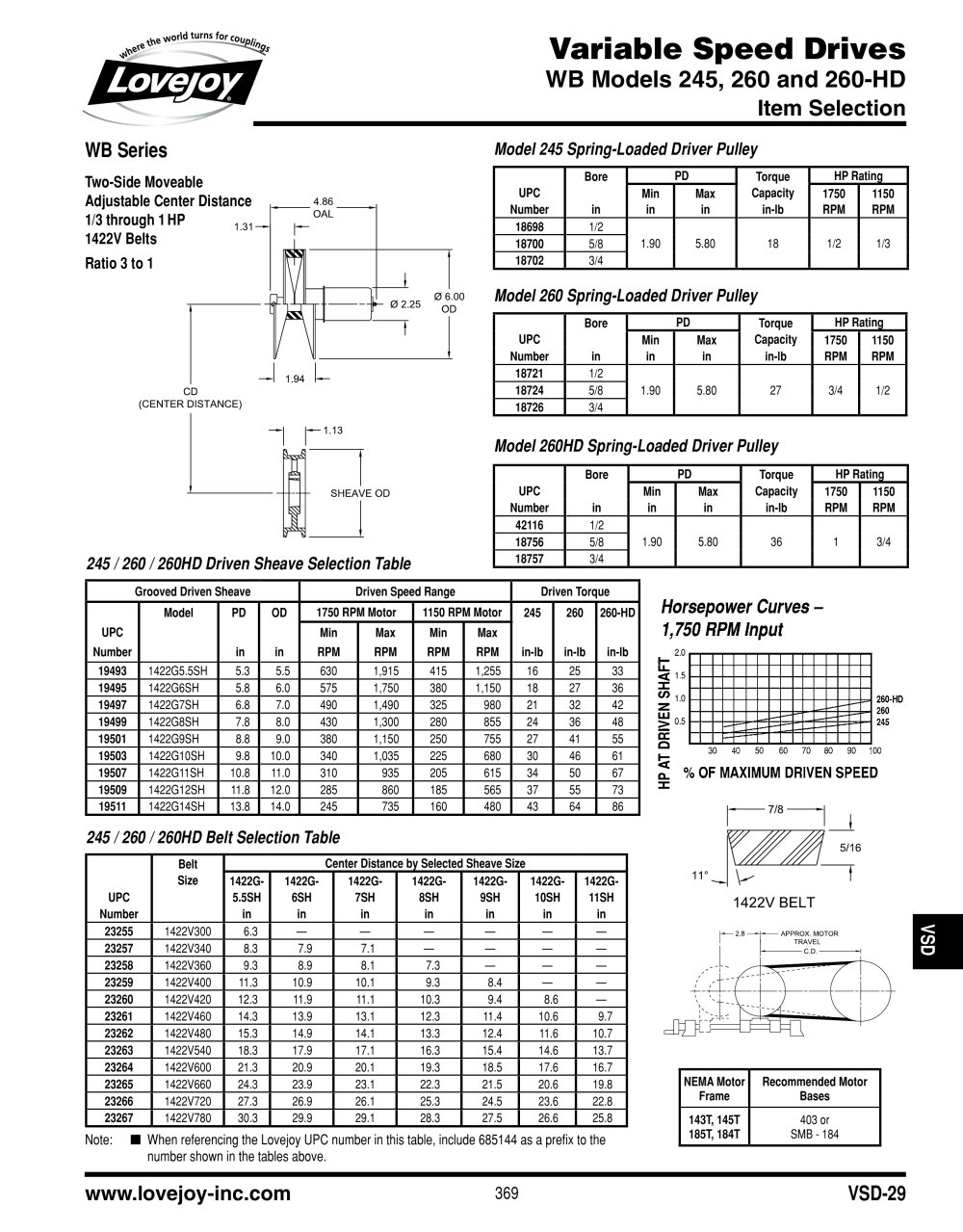

Model 245 Spring-Loaded Driver Pulley
WB Series
Two-Side Moveable Adjustable Center Distance 1/3 through 1 HP , 31 1422V Belts
Ratio 3 to 1
UPC Number
Bore in
PD 1
Torque Capacity in-lb
HP Rating |
Min in
Max in
1750 RPM
1150 RPM
18698
1/2
1.90
5.80
18
1/2
1/3
18700
5/8
18702
3/4
Model 260 Spring-Loaded Driver Pulley
UPC Number
Bore in
PD
Torque Capacity in-lb
HP Rating |
Min in
Max in
1750 RPM
1150 RPM
18721
1/2
1.90
5.80
27
3/4
1/2
18724
5/8
18726
3/4
-^02,5
CD
(CENTER DISTANCE)
Model 260HD Spring-Loaded Driver Pulley
Bore
PD
Torque
HP Rating |
UPC
Min
Max
Capacity
1750
1150
Number
in
in
in
in-lb
RPM
RPM
42116
1/2
18756
5/8
1.90
5.80
36
1
3/4
18757
3/4
245 /260 /260HD Driven Sheave Selection Table
Sheave
Driven Speed Range
Driven Torque
PD
OD
1750 RPM Motor
1150 RPM Motor
245
260
260-HD
Min
Max
Min
Max
in
in
RPM
RPM
RPM
RPM
in-lb
in-lb
in-lb
5.3
5.5
630
1,915
415
1,255
16
25
33
5.8
6.0
575
1,750
380
1,150
18
27
36
6.8
7.0
490
1,490
325
980
21
32
42
7.8
8.0
430
1,300
280
855
24
36
48
8.8
9.0
380
1,150
250
755
27
41
55
9.8
10.0
340
1,035
225
680
30
46
61
10.8
11.0
310
935
205
615
34
50
67
11.8
12.0
285
860
185
565
37
55
73
13.8
14.0
245
735
160
480
43
64
86
Model
UPC
Number
1422G5.5SH
19493
1422G6SH
19495
1422G7SH
19497
1422G8SH
19499
1422G9SH
19501
1422G10SH
19503
1422G11SH
19507
1422G12SH
19509
1422G14SH
19511
-7/8-
A
245 /260 /260HD Belt Selection Table
5/16
Belt
Center Distance by Selected Sheave Size
Size
1422G-
1422G-
1422G-
1422G-
1422G-
1422G-
1422G-
UPC
5.5SH
6SH
7SH
8SH
9SH
10SH
11SH
Number
in
in
in
in
in
in
in
23255
1422V300
6.3
—
—
—
—
—
—
23257
1422V340
8.3
7.9
7.1
—
—
—
—
23258
1422V360
9.3
8.9
8.1
7.3
—
—
—
23259
1422V400
11.3
10.9
10.1
9.3
8.4
—
—
23260
1422V420
12.3
11.9
11.1
10.3
9.4
8.6
—
23261
1422V460
14.3
13.9
13.1
12.3
11.4
10.6
9.7
23262
1422V480
15.3
14.9
14.1
13.3
12.4
11.6
10.7
23263
1422V540
18.3
17.9
17.1
16.3
15.4
14.6
13.7
23264
1422V600
21.3
20.9
20.1
19.3
18.5
17.6
16.7
23265
1422V660
24.3
23.9
23.1
22.3
21.5
20.6
19.8
23266
1422V720
27.3
26.9
26.1
25.3
24.5
23.6
22.8
23267
1422V780
30.3
29.9
29.1
28.3
27.5
26.6
25.8
11°
1422V BELT
CO
o
NEMA Motor Frame
Recommended Motor Bases
143T, 145T 185T, 184T
403 or SMB - 184
Note: ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix number shown in the tables above.
to the
