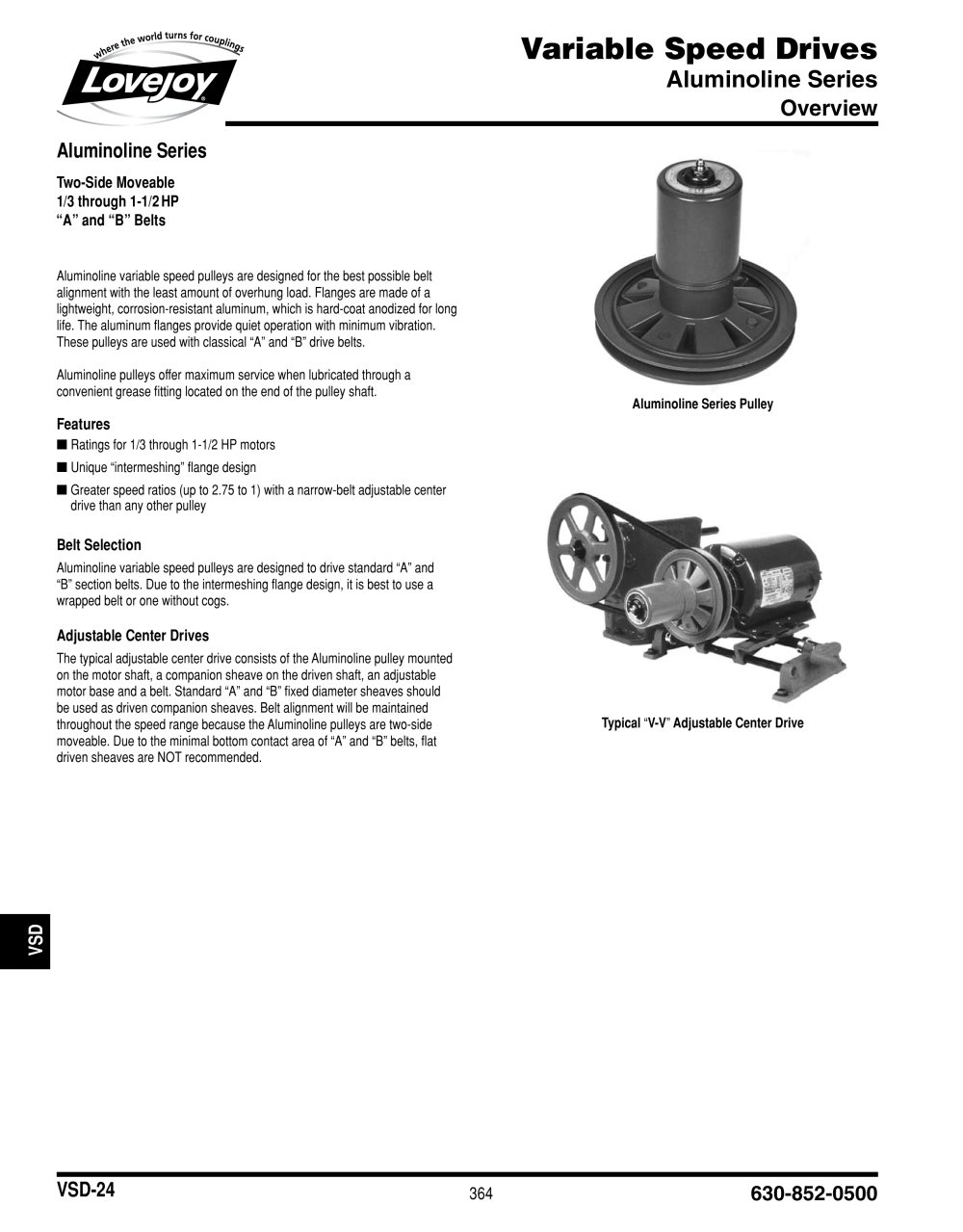

Variable Speed Drives Aluminoline Series

Overview

Aluminoline Series

Two-Side Moveable 1/3 through 1-1/2 HP “A” and “B” Belts

Aluminoline variable speed pulleys are designed for the best possible belt alignment with the least amount of overhung load. Flanges are made of a lightweight, corrosion-resistant aluminum, which is hard-coat anodized for long life. The aluminum flanges provide quiet operation with minimum vibration. These pulleys are used with classical “A” and “B” drive belts. Aluminoline pulleys offer maximum service when lubricated through a convenient grease fitting located on the end of the pulley shaft. Aluminoline Series Pulley Typical

Features

â–  Ratings for 1/3 through 1-1/2 HP motors â–  Unique “intermeshing” flange design â–  Greater speed ratios (up to 2.75 to 1) with a narrow-belt adjustable center drive than any other pulley

Belt Selection

Aluminoline variable speed pulleys are designed to drive standard “A” and “B” section belts. Due to the intermeshing flange design, it is best to use a wrapped belt or one without cogs.

Adjustable Center Drives

The typical adjustable center drive consists of the Aluminoline pulley mounted on the motor shaft, a companion sheave on the driven shaft, an adjustable motor base and a belt. Standard “A” and “B” fixed diameter sheaves should be used as driven companion sheaves. Belt alignment will be maintained throughout the speed range because the Aluminoline pulleys are two-side moveable. Due to the minimal bottom contact area of “A” and “B” belts, flat driven sheaves are NOT recommended. “ V-V ” Adjustable Center Drive
VSD

VSD-24
