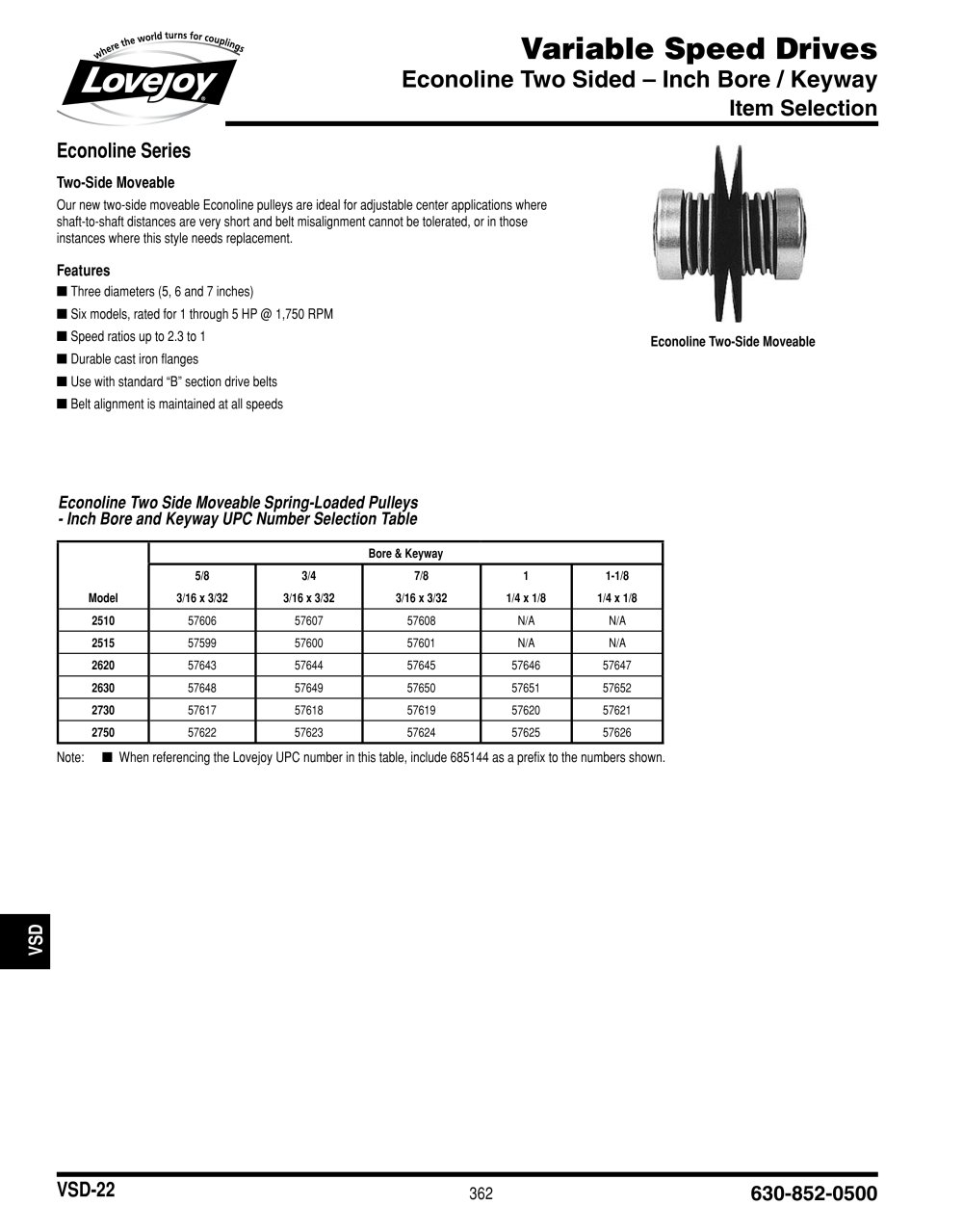

Variable Speed Drives Econoline Two Sided – Inch Bore / Keyway
Item Selection
Econoline Series
Two-Side Moveable
Our new two-side moveable Econoline pulleys are ideal for adjustable center applications where shaft-to-shaft distances are very short and belt misalignment cannot be tolerated, or in those instances where this style needs replacement.Features
â– Three diameters (5, 6 and 7 inches) â– Six models, rated for 1 through 5 HP @ 1,750 RPM â– Speed ratios up to 2.3 to 1 Econoline Two-Side Moveable â– Durable cast iron flanges â– Use with standard “B” section drive belts â– Belt alignment is maintained at all speedsEconoline Two Side Moveable Spring-Loaded Pulleys - Inch Bore and Keyway UPC Number Selection Table
Bore & Keyway 5/83/47/811-1/8Model3/16 x 3/323/16 x 3/323/16 x 3/321/4 x 1/81/4 x 1/82510 576065760757608N/AN/A 2515 575995760057601N/AN/A 2620 5764357644576455764657647 2630 5764857649576505765157652 2730 5761757618576195762057621 2750 5762257623576245762557626 Note: N When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the numbers shown.VSD
