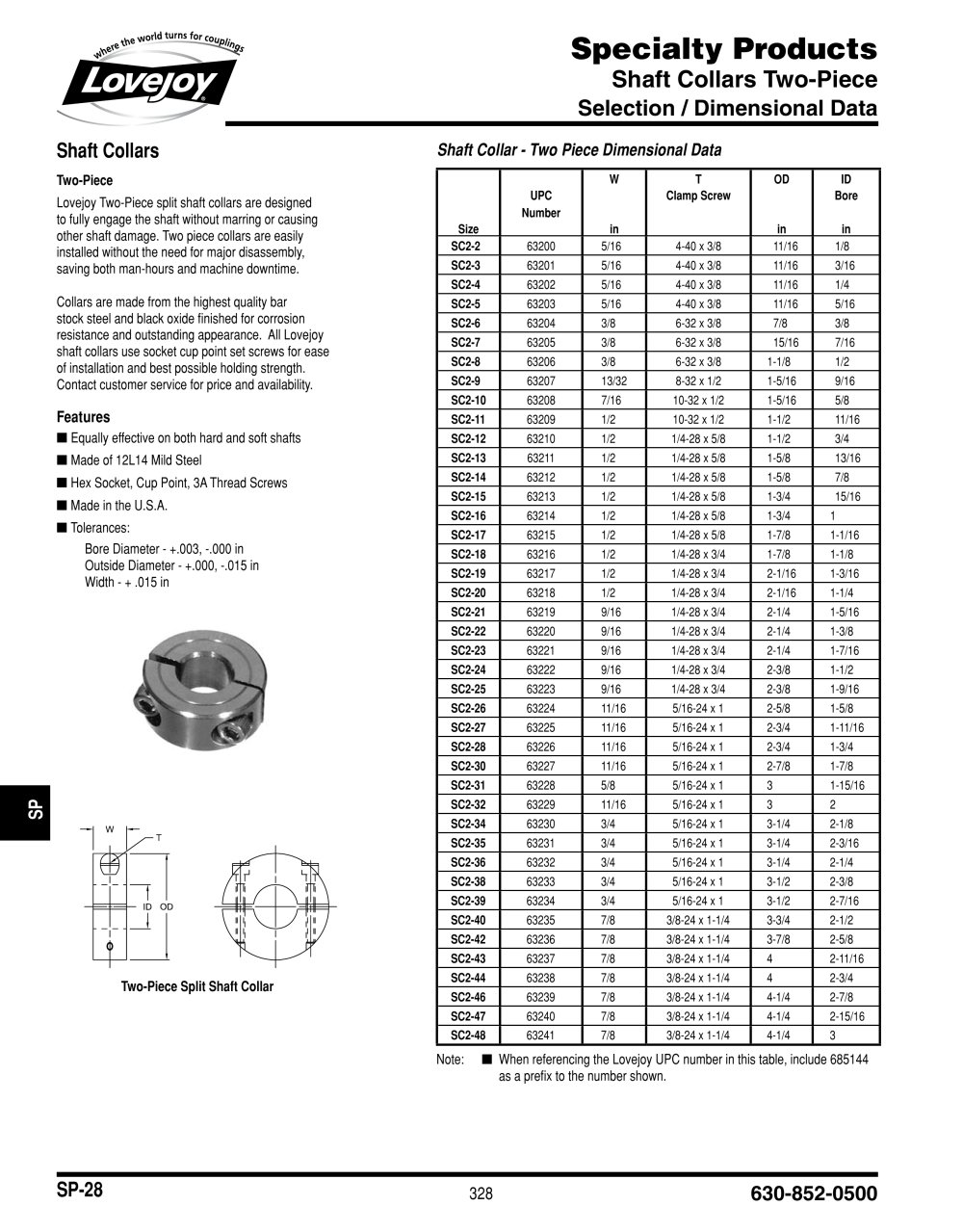

Lovejoy
ŕ
Shaft Collars
Two-Piece
Lovejoy Two-Piece split shaft collars are designed to fully engage the shaft without marring or causing other shaft damage. Two piece collars are easily installed without the need for major disassembly, saving both man-hours and machine downtime.
Collars are made from the highest quality bar stock steel and black oxide finished for corrosion resistance and outstanding appearance. All Lovejoy shaft collars use socket cup point set screws for ease of installation and best possible holding strength. Contact customer service for price and availability.
Features
■ Equally effective on both hard and soft shafts
■ Made of 12L14 Mild Steel
■ Hex Socket, Cup Point, 3A Thread Screws
■ Made in the U.S.A.
■ Tolerances:
Bore Diameter - +.003, -.000 in Outside Diameter - +.000, -.015 in Width - + .015 in
Shaft Collar - Two Piece Dimensional Data
Size
UPC Number
W in
T
Clamp Screw
OD in
ID
Bore in
SC2-2
63200
5/16
4-40 x 3/8
11/16
1/8
SC2-3
63201
5/16
4-40 x 3/8
11/16
3/16
SC2-4
63202
5/16
4-40 x 3/8
11/16
1/4
SC2-5
63203
5/16
4-40 x 3/8
11/16
5/16
SC2-6
63204
3/8
6-32 x 3/8
7/8
3/8
SC2-7
63205
3/8
6-32 x 3/8
15/16
7/16
SC2-8
63206
3/8
6-32 x 3/8
1-1/8
1/2
SC2-9
63207
13/32
8-32 x 1/2
1-5/16
9/16
SC2-10
63208
7/16
10-32 x 1/2
1-5/16
5/8
SC2-11
63209
1/2
10-32 x 1/2
1-1/2
11/16
SC2-12
63210
1/2
1/4-28 x 5/8
1-1/2
3/4
SC2-13
63211
1/2
1/4-28 x 5/8
1-5/8
13/16
SC2-14
63212
1/2
1/4-28 x 5/8
1-5/8
7/8
SC2-15
63213
1/2
1/4-28 x 5/8
1-3/4
15/16
SC2-16
63214
1/2
1/4-28 x 5/8
1-3/4
1
SC2-17
63215
1/2
1/4-28 x 5/8
1-7/8
1-1/16
SC2-18
63216
1/2
1/4-28 x 3/4
1-7/8
1-1/8
SC2-19
63217
1/2
1/4-28 x 3/4
2-1/16
1-3/16
SC2-20
63218
1/2
1/4-28 x 3/4
2-1/16
1-1/4
SC2-21
63219
9/16
1/4-28 x 3/4
2-1/4
1-5/16
SC2-22
63220
9/16
1/4-28 x 3/4
2-1/4
1-3/8
SC2-23
63221
9/16
1/4-28 x 3/4
2-1/4
1-7/16
SC2-24
63222
9/16
1/4-28 x 3/4
2-3/8
1-1/2
SC2-25
63223
9/16
1/4-28 x 3/4
2-3/8
1-9/16
SC2-26
63224
11/16
5/16-24 x 1
2-5/8
1-5/8
SC2-27
63225
11/16
5/16-24 x 1
2-3/4
1-11/16
SC2-28
63226
11/16
5/16-24 x 1
2-3/4
1-3/4
SC2-30
63227
11/16
5/16-24 x 1
2-7/8
1-7/8
SC2-31
63228
5/8
5/16-24 x 1
3
1-15/16
SC2-32
63229
11/16
5/16-24 x 1
3
2
SC2-34
63230
3/4
5/16-24 x 1
3-1/4
2-1/8
SC2-35
63231
3/4
5/16-24 x 1
3-1/4
2-3/16
SC2-36
63232
3/4
5/16-24 x 1
3-1/4
2-1/4
SC2-38
63233
3/4
5/16-24 x 1
3-1/2
2-3/8
SC2-39
63234
3/4
5/16-24 x 1
3-1/2
2-7/16
SC2-40
63235
7/8
3/8-24 x 1-1/4
3-3/4
2-1/2
SC2-42
63236
7/8
3/8-24 x 1-1/4
3-7/8
2-5/8
SC2-43
63237
7/8
3/8-24 x 1-1/4
4
2-11/16
SC2-44
63238
7/8
3/8-24 x 1-1/4
4
2-3/4
SC2-46
63239
7/8
3/8-24 x 1-1/4
4-1/4
2-7/8
SC2-47
63240
7/8
3/8-24 x 1-1/4
4-1/4
2-15/16
SC2-48
63241
7/8
3/8-24 x 1-1/4
4-1/4
3
Two-Piece Split Shaft Collar
Note: ■ When referencing the Lovejoy UPC number in this table, include 685144 as a prefix to the number shown.
