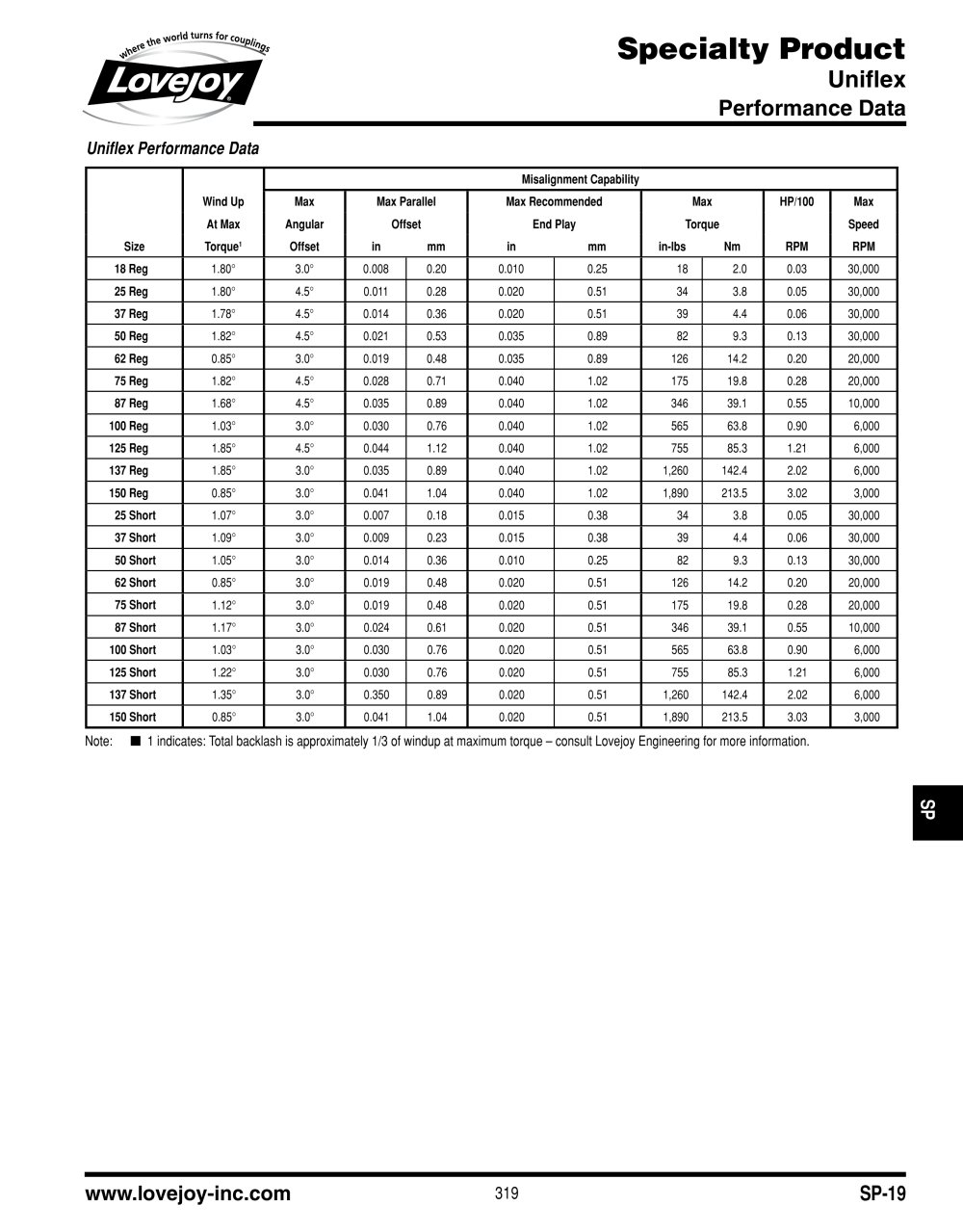

Specialty Product

Uniflex Performance Data

Lovejoy

Uniflex Performance Data


						Misalignment Capability			—


		Wind Up	Max	Max Parallel		Max Recommended				Max		HP/100	Max
		At Max	Angular	Offset		End Play				Torque			Speed
	Size	Torque¹	Offset	in	mm	in	mm			in-lbs	Nm	RPM	RPM
	18 Reg	1.80°	3.0°	0.008	0.20	0.010	0.25			18	2.0	0.03	30,000
	25 Reg	1.80°	4.5°	0.011	0.28	0.020	0.51			34	3.8	0.05	30,000
	37 Reg	1.78°	4.5°	0.014	0.36	0.020	0.51			39	4.4	0.06	30,000
	50 Reg	1.82°	4.5°	0.021	0.53	0.035	0.89			82	9.3	0.13	30,000
	62 Reg	0.85°	3.0°	0.019	0.48	0.035	0.89			126	14.2	0.20	20,000
	75 Reg	1.82°	4.5°	0.028	0.71	0.040	1.02			175	19.8	0.28	20,000
	87 Reg	1.68°	4.5°	0.035	0.89	0.040	1.02			346	39.1	0.55	10,000
	100 Reg	1.03°	3.0°	0.030	0.76	0.040	1.02			565	63.8	0.90	6,000
	125 Reg	1.85°	4.5°	0.044	1.12	0.040	1.02			755	85.3	1.21	6,000
	137 Reg	1.85°	3.0°	0.035	0.89	0.040	1.02			1,260	142.4	2.02	6,000
	150 Reg	0.85°	3.0°	0.041	1.04	0.040	1.02			1,890	213.5	3.02	3,000
	25 Short	1.07°	3.0°	0.007	0.18	0.015	0.38			34	3.8	0.05	30,000
	37 Short	1.09°	3.0°	0.009	0.23	0.015	0.38			39	4.4	0.06	30,000
	50 Short	1.05°	3.0°	0.014	0.36	0.010	0.25			82	9.3	0.13	30,000
	62 Short	0.85°	3.0°	0.019	0.48	0.020	0.51			126	14.2	0.20	20,000
	75 Short	1.12°	3.0°	0.019	0.48	0.020	0.51			175	19.8	0.28	20,000
	87 Short	1.17°	3.0°	0.024	0.61	0.020	0.51			346	39.1	0.55	10,000
	100 Short	1.03°	3.0°	0.030	0.76	0.020	0.51			565	63.8	0.90	6,000
	125 Short	1.22°	3.0°	0.030	0.76	0.020	0.51			755	85.3	1.21	6,000
	137 Short	1.35°	3.0°	0.350	0.89	0.020	0.51			1,260	142.4	2.02	6,000
	150 Short	0.85°	3.0°	0.041	1.04	0.020	0.51			1,890	213.5	3.03	3,000

Note: ■ 1 indicates: Total backlash is approximately 1/3 of windup at maximum torque - consult Lovejoy Engineering for more information.
