Lovejoy
L = total width (relaxed state)
B = width of thrust rings (relaxed state)
A = width to flange
l = length of contact
T = locking screw specifications
MA = screw tightening torque
D = outer diameter of shaft locking device
D1 = diameter to flange
d = shaft diameter
F = maximum transmissible axial force
Mt = maximum transmissible torque
pH = pressure on the hub
pS = pressure on the shaft
T1 = tolerance of shaft
T2 = tolerance of hub bore
JL d Di

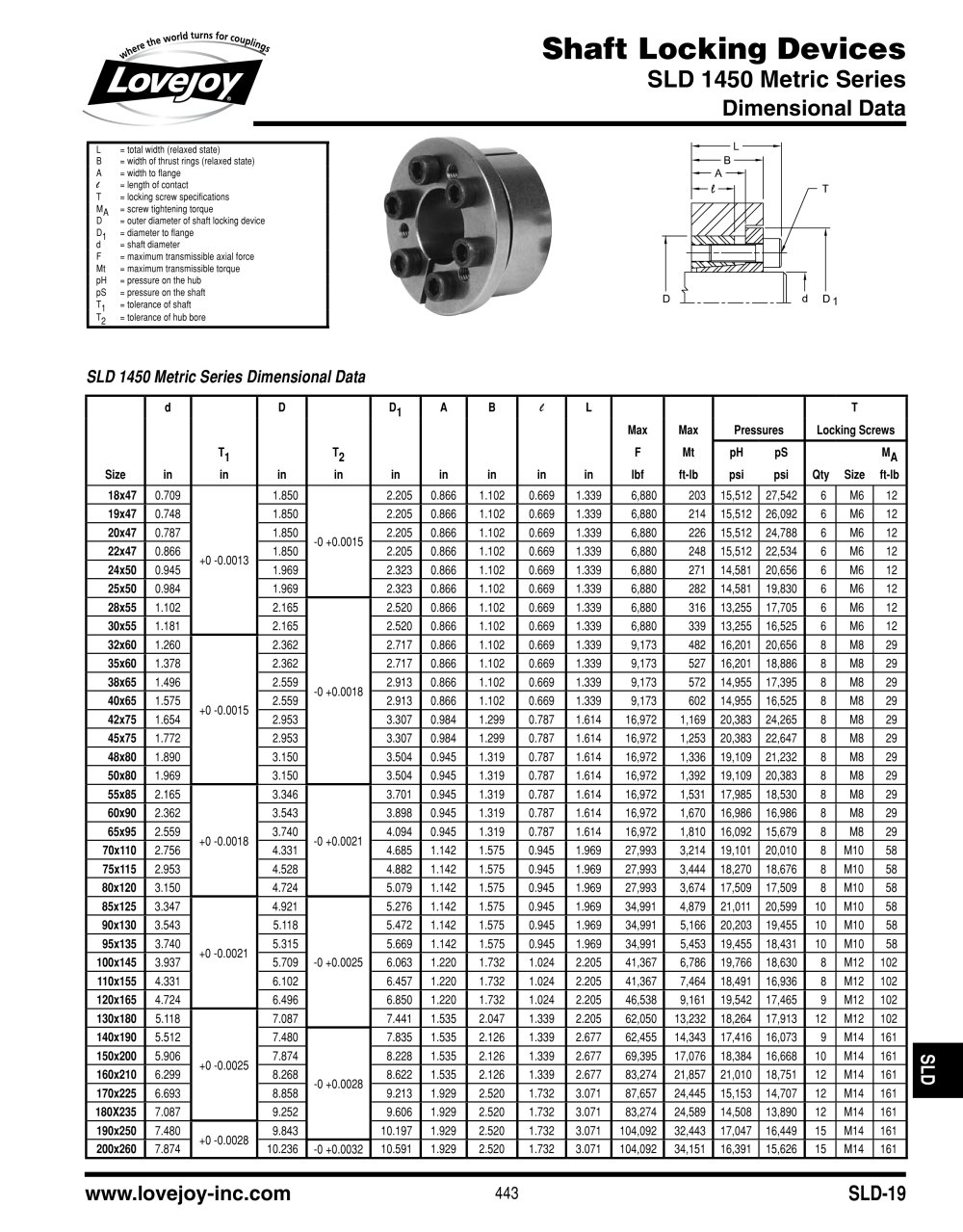

SLD 1450 Metric Series Dimensional Data
1
d
D
A
B
l
L
T
Max
Max
Pressures
Locking Screws
T1
T2
F
Mt
pH
pS
MA
Size
in
in
in
in
in
in
in
in
in
lbf
ft-lb
psi
psi
Qty
Size
ft-lb
18x47
0.709
1.850
2.205
0.866
1.102
0.669
1.339
6,880
203
15,512
27,542
6
M6
12
19x47
0.748
1.850
2.205
0.866
1.102
0.669
1.339
6,880
214
15,512
26,092
6
M6
12
20x47
0.787
1.850
-0 +0.0015
2.205
0.866
1.102
0.669
1.339
6,880
226
15,512
24,788
6
M6
12
22x47
0.866
+0 -0.0013
1.850
2.205
0.866
1.102
0.669
1.339
6,880
248
15,512
22,534
6
M6
12
24x50
0.945
1.969
2.323
0.866
1.102
0.669
1.339
6,880
271
14,581
20,656
6
M6
12
25x50
0.984
1.969
2.323
0.866
1.102
0.669
1.339
6,880
282
14,581
19,830
6
M6
12
28x55
1.102
2.165
2.520
0.866
1.102
0.669
1.339
6,880
316
13,255
17,705
6
M6
12
30x55
1.181
2.165
2.520
0.866
1.102
0.669
1.339
6,880
339
13,255
16,525
6
M6
12
32x60
1.260
2.362
2.717
0.866
1.102
0.669
1.339
9,173
482
16,201
20,656
8
M8
29
35x60
1.378
2.362
2.717
0.866
1.102
0.669
1.339
9,173
527
16,201
18,886
8
M8
29
38x65
1.496
2.559
-0 +0.0018
2.913
0.866
1.102
0.669
1.339
9,173
572
14,955
17,395
8
M8
29
40x65
1.575
+0 -0.0015
2.559
2.913
0.866
1.102
0.669
1.339
9,173
602
14,955
16,525
8
M8
29
42x75
1.654
2.953
3.307
0.984
1.299
0.787
1.614
16,972
1,169
20,383
24,265
8
M8
29
45x75
1.772
2.953
3.307
0.984
1.299
0.787
1.614
16,972
1,253
20,383
22,647
8
M8
29
48x80
1.890
3.150
3.504
0.945
1.319
0.787
1.614
16,972
1,336
19,109
21,232
8
M8
29
50x80
1.969
3.150
3.504
0.945
1.319
0.787
1.614
16,972
1,392
19,109
20,383
8
M8
29
55x85
2.165
3.346
3.701
0.945
1.319
0.787
1.614
16,972
1,531
17,985
18,530
8
M8
29
60x90
2.362
3.543
3.898
0.945
1.319
0.787
1.614
16,972
1,670
16,986
16,986
8
M8
29
65x95
2.559
+0 -0.0018
3.740
-0 +0.0021
4.094
0.945
1.319
0.787
1.614
16,972
1,810
16,092
15,679
8
M8
29
70x110
2.756
4.331
4.685
1.142
1.575
0.945
1.969
27,993
3,214
19,101
20,010
8
M10
58
75x115
2.953
4.528
4.882
1.142
1.575
0.945
1.969
27,993
3,444
18,270
18,676
8
M10
58
80x120
3.150
4.724
5.079
1.142
1.575
0.945
1.969
27,993
3,674
17,509
17,509
8
M10
58
85x125
3.347
4.921
5.276
1.142
1.575
0.945
1.969
34,991
4,879
21,011
20,599
10
M10
58
90x130
3.543
5.118
5.472
1.142
1.575
0.945
1.969
34,991
5,166
20,203
19,455
10
M10
58
95x135
3.740
+0 -0.0021
5.315
5.669
1.142
1.575
0.945
1.969
34,991
5,453
19,455
18,431
10
M10
58
100x145
3.937
5.709
-0 +0.0025
6.063
1.220
1.732
1.024
2.205
41,367
6,786
19,766
18,630
8
M12
102
110x155
4.331
6.102
6.457
1.220
1.732
1.024
2.205
41,367
7,464
18,491
16,936
8
M12
102
120x165
4.724
6.496
6.850
1.220
1.732
1.024
2.205
46,538
9,161
19,542
17,465
9
M12
102
130x180
5.118
7.087
7.441
1.535
2.047
1.339
2.205
62,050
13,232
18,264
17,913
12
M12
102
140x190
5.512
7.480
7.835
1.535
2.126
1.339
2.677
62,455
14,343
17,416
16,073
9
M14
161
150x200
5.906
+0 -0.0025
7.874
8.228
1.535
2.126
1.339
2.677
69,395
17,076
18,384
16,668
10
M14
161
160x210
6.299
8.268
-0 +0.0028
8.622
1.535
2.126
1.339
2.677
83,274
21,857
21,010
18,751
12
M14
161
170x225
6.693
8.858
9.213
1.929
2.520
1.732
3.071
87,657
24,445
15,153
14,707
12
M14
161
180X235
7.087
9.252
9.606
1.929
2.520
1.732
3.071
83,274
24,589
14,508
13,890
12
M14
161
190x250
7.480
+0 -0.0028
9.843
10.197
1.929
2.520
1.732
3.071
104,092
32,443
17,047
16,449
15
M14
161
200x260
7.874
10.236
-0 +0.0032
10.591
1.929
2.520
1.732
3.071
104,092
34,151
16,391
15,626
15
M14
161
