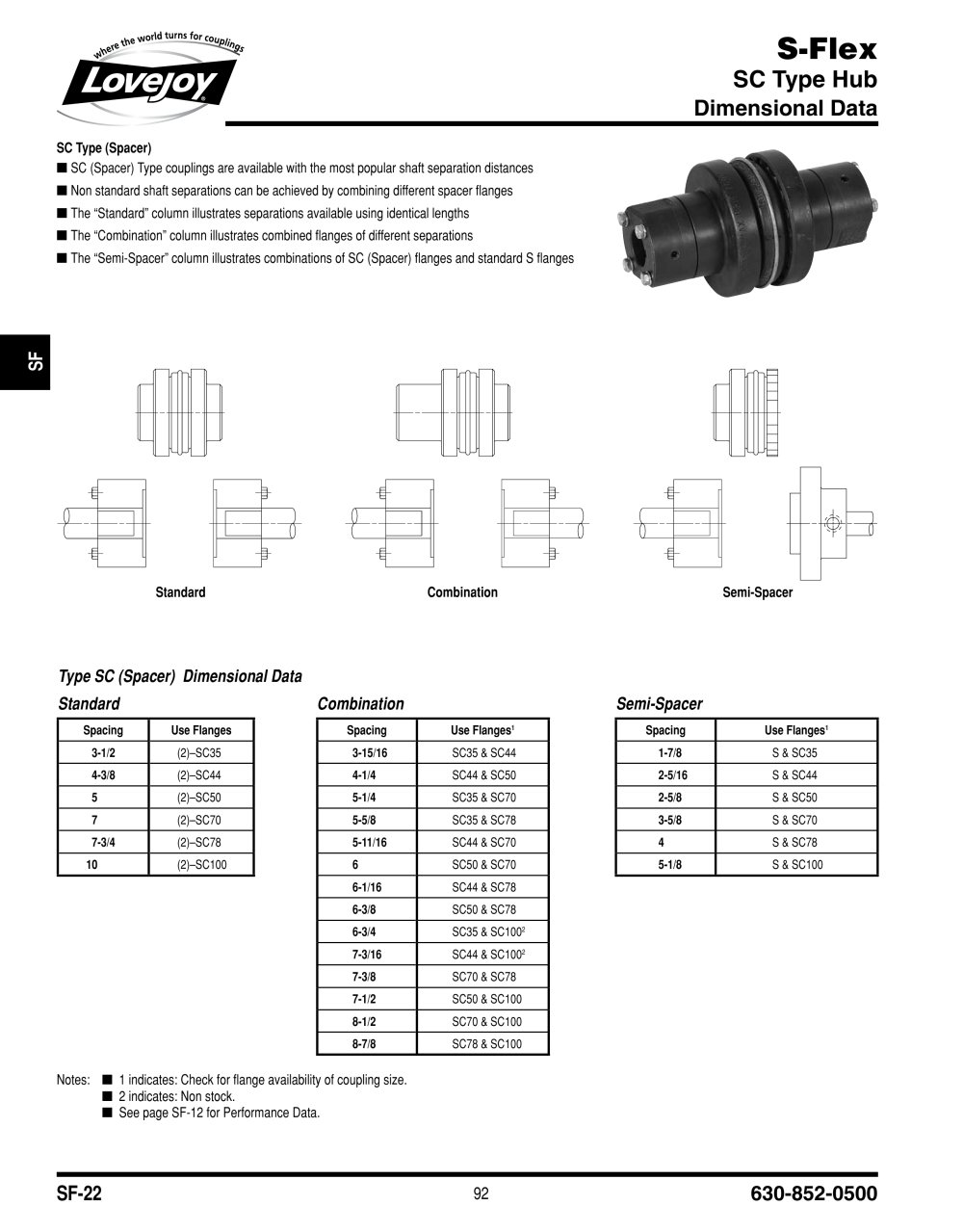

S-Flex SC Type Hub

Dimensional Data

SC Type (Spacer) â–  SC (Spacer) Type couplings are available with the most popular shaft separation distances â–  Non standard shaft separations can be achieved by combining different spacer flanges â–  The “Standard” column illustrates separations available using identical lengths â–  The “Combination” column illustrates combined flanges of different separations â–  The “Semi-Spacer” column illustrates combinations of SC (Spacer) flanges and standard S flanges

SF

StandardCombinationSemi-Spacer

Type SC (Spacer) Dimensional DataStandardCombinationSemi-Spacer

SpacingUse FlangesSpacing Use Flanges
1 SpacingUse Flanges
1 3-1/2 (2)–SC35 3-15/16 SC35 & SC44 1-7/8 S & SC35 4-3/8 (2)–SC44 4-1/4 SC44 & SC50 2-5/16 S & SC44 5 (2)–SC50 5-1/4 SC35 & SC70 2-5/8 S & SC50 7 (2)–SC70 5-5/8 SC35 & SC78 3-5/8 S & SC70 7-3/4 (2)–SC78 5-11/16 SC44 & SC70 4 S & SC78 10 (2)–SC100 6 SC50 & SC70 5-1/8 S & SC100 6-1/16 SC44 & SC78 6-3/8 SC50 & SC78 6-3/4 SC35 & SC100
2 7-3/16 SC44 & SC100
2 7-3/8 SC70 & SC78 7-1/2 SC50 & SC100 8-1/2 SC70 & SC100 8-7/8 SC78 & SC100

Notes: N 1 indicates: Check for flange availability of coupling size. N 2 indicates: Non stock. N See page SF-12 for Performance Data.

SF-22

92

630-852-0500
