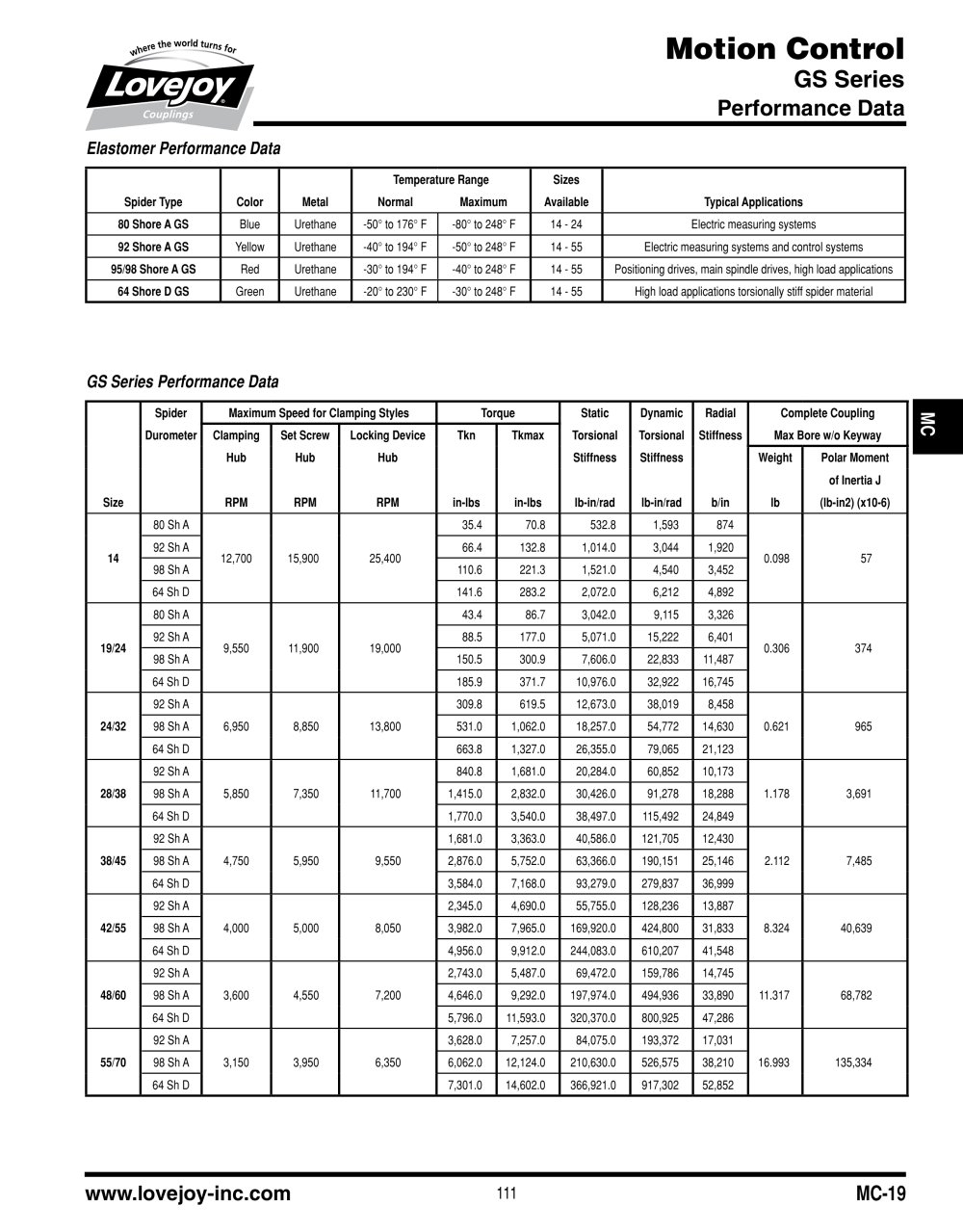

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | e*e>Norid ton*'or c0(w^ | | | | | | | | | | | | | | | | Lovejoy | | | | | | | | | | | | | | Elastomer Performance Data | | | | | | | | | | | | | | | | | | | | | Spider Type | Color | Metal | Temperature Range Normal Maximum | Sizes Available | Typical Applications | | | | 80 Shore A GS | Blue | Urethane | -50° to 176° F -80° to 248° F | 14 - 24 | Electric measuring systems | | | | 92 Shore A GS | Yellow | Urethane | -40° to 194° F -50° to 248° F | 14 - 55 | Electric measuring systems and control systems | | | | 95/98 Shore A GS | Red | Urethane | -30° to 194° F -40° to 248° F | 14 - 55 | Positioning drives, main spindle drives, high load applications | | | | 64 Shore D GS | Green | Urethane | -20° to 230° F -30° to 248° F | 14 - 55 | High load applications torsionally stiff spider material | | | | | | | | | | | | | | | | | | | | | GS Series Performance Data | | | | | | | | | | | | | | | | | | | | | | | | | | | Size | Spider Durometer | Maximum Speed for Clamping Styles | Torque | Static Torsional Stiffness lb-in/rad | Dynamic Torsional Stiffness lb-in/rad | Radial Stiffness b/in | Complete Coupling Max Bore w/o Keyway | | | | Clamping Hub RPM | Set Screw Hub RPM | Locking Device Hub RPM | Tkn in-lbs | Tkmax in-lbs | | | | Weight lb | Polar Moment of Inertia J (lb-in2) (x10-6) | | | | 14 | 80 Sh A | 12,700 | 15,900 | 25,400 | 35.4 | 70.8 | 532.8 | 1,593 | 874 | 0.098 | 57 | | | | 92 Sh A | 66.4 | 132.8 | 1,014.0 | 3,044 | 1,920 | | | | 98 Sh A | 110.6 | 221.3 | 1,521.0 | 4,540 | 3,452 | | | | 64 Sh D | 141.6 | 283.2 | 2,072.0 | 6,212 | 4,892 | | | | 19/24 | 80 Sh A | 9,550 | 11,900 | 19,000 | 43.4 | 86.7 | 3,042.0 | 9,115 | 3,326 | 0.306 | 374 | | | | 92 Sh A | 88.5 | 177.0 | 5,071.0 | 15,222 | 6,401 | | | | 98 Sh A | 150.5 | 300.9 | 7,606.0 | 22,833 | 11,487 | | | | 64 Sh D | 185.9 | 371.7 | 10,976.0 | 32,922 | 16,745 | | | | 24/32 | 92 Sh A | 6,950 | 8,850 | 13,800 | 309.8 | 619.5 | 12,673.0 | 38,019 | 8,458 | 0.621 | 965 | | | | 98 Sh A | 531.0 | 1,062.0 | 18,257.0 | 54,772 | 14,630 | | | | 64 Sh D | 663.8 | 1,327.0 | 26,355.0 | 79,065 | 21,123 | | | | 28/38 | 92 Sh A | 5,850 | 7,350 | 11,700 | 840.8 | 1,681.0 | 20,284.0 | 60,852 | 10,173 | 1.178 | 3,691 | | | | 98 Sh A | 1,415.0 | 2,832.0 | 30,426.0 | 91,278 | 18,288 | | | | 64 Sh D | 1,770.0 | 3,540.0 | 38,497.0 | 115,492 | 24,849 | | | | 38/45 | 92 Sh A | 4,750 | 5,950 | 9,550 | 1,681.0 | 3,363.0 | 40,586.0 | 121,705 | 12,430 | 2.112 | 7,485 | | | | 98 Sh A | 2,876.0 | 5,752.0 | 63,366.0 | 190,151 | 25,146 | | | | 64 Sh D | 3,584.0 | 7,168.0 | 93,279.0 | 279,837 | 36,999 | | | | 42/55 | 92 Sh A | 4,000 | 5,000 | 8,050 | 2,345.0 | 4,690.0 | 55,755.0 | 128,236 | 13,887 | 8.324 | 40,639 | | | | 98 Sh A | 3,982.0 | 7,965.0 | 169,920.0 | 424,800 | 31,833 | | | | 64 Sh D | 4,956.0 | 9,912.0 | 244,083.0 | 610,207 | 41,548 | | | | 48/60 | 92 Sh A | 3,600 | 4,550 | 7,200 | 2,743.0 | 5,487.0 | 69,472.0 | 159,786 | 14,745 | 11.317 | 68,782 | | | | 98 Sh A | 4,646.0 | 9,292.0 | 197,974.0 | 494,936 | 33,890 | | | | 64 Sh D | 5,796.0 | 11,593.0 | 320,370.0 | 800,925 | 47,286 | | | | 55/70 | 92 Sh A | 3,150 | 3,950 | 6,350 | 3,628.0 | 7,257.0 | 84,075.0 | 193,372 | 17,031 | 16.993 | 135,334 | | | | 98 Sh A | 6,062.0 | 12,124.0 | 210,630.0 | 526,575 | 38,210 | | | | 64 Sh D | 7,301.0 | 14,602.0 | 366,921.0 | 917,302 | 52,852 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
