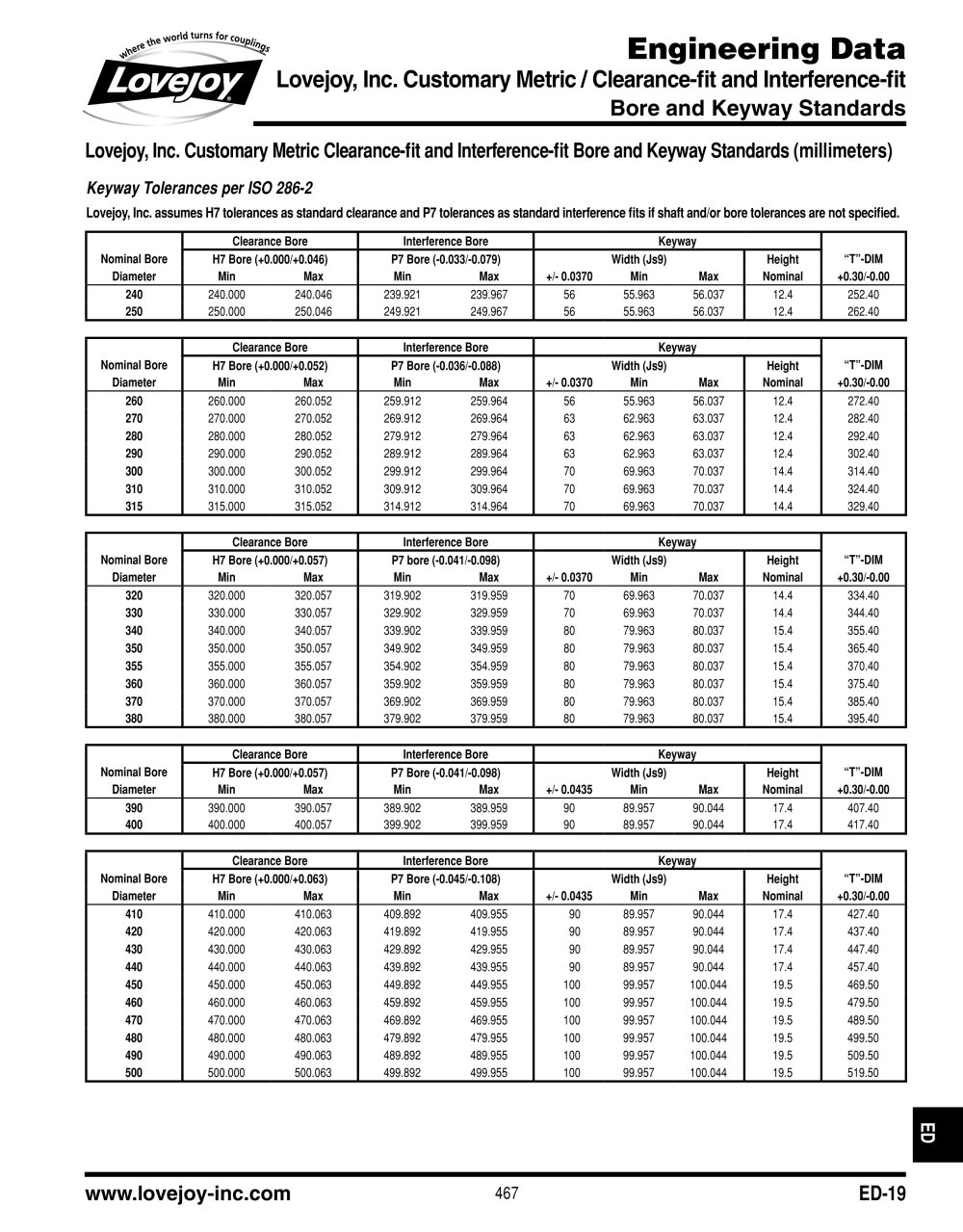

Lovejoy, Inc. Customary Metric / Clearance-fit and Interference-fit _Bore and Keyway Standards

Lovejoy

Lovejoy, Inc. Customary Metric Clearance-fit and Interference-fit Bore and Keyway Standards (millimeters) Keyway Tolérances per ISO 286-2

Lovejoy, Inc. assumes H7 tolerances as standard clearance and P7 tolerances as standard interference fits if shaft and/or bore tolerances are not specified.


Nominal Bore Diameter	Clearance Bore	Interference Bore	Keyway		"T"-DIM +0.30/-0.00
Nominal Bore Diameter	H7 Bore (+0.000/+0.046) Min Max	P7 Bore (-0.033/-0.079) Min Max	Width (Js9) +/- 0.0370 Min Max	Height Nominal	"T"-DIM +0.30/-0.00
240 250	240.000 240.046 250.000 250.046	239.921 239.967 249.921 249.967	56 55.963 56.037 56 55.963 56.037	12.4 12.4	252.40 262.40


	Clearance Bore		Interference Bore		Keyway
Nominal Bore						Width (Js9)		Height	"T"-DIM
Nominal Bore	H7 Bore (+0.000/+0.052)		P7 Bore (-0.036/-0.088)			Width (Js9)		Height	"T"-DIM
Diameter	Min	Max	Min	Max	+/- 0.0370	Min	Max	Nominal	+0.30/-0.00
260	260.000	260.052	259.912	259.964	56	55.963	56.037	12.4	272.40
270	270.000	270.052	269.912	269.964	63	62.963	63.037	12.4	282.40
280	280.000	280.052	279.912	279.964	63	62.963	63.037	12.4	292.40
290	290.000	290.052	289.912	289.964	63	62.963	63.037	12.4	302.40
300	300.000	300.052	299.912	299.964	70	69.963	70.037	14.4	314.40
310	310.000	310.052	309.912	309.964	70	69.963	70.037	14.4	324.40
315	315.000	315.052	314.912	314.964	70	69.963	70.037	14.4	329.40


	Clearance Bore		Interference Bore		Keyway
Nominal Bore						Width (Js9)		Height	"T"-DIM
Nominal Bore	H7 Bore (+0.000/+0.057)		P7 bore (-0.041/-0.098)			Width (Js9)		Height	"T"-DIM
Diameter	Min	Max	Min	Max	+/- 0.0370	Min	Max	Nominal	+0.30/-0.00
320	320.000	320.057	319.902	319.959	70	69.963	70.037	14.4	334.40
330	330.000	330.057	329.902	329.959	70	69.963	70.037	14.4	344.40
340	340.000	340.057	339.902	339.959	80	79.963	80.037	15.4	355.40
350	350.000	350.057	349.902	349.959	80	79.963	80.037	15.4	365.40
355	355.000	355.057	354.902	354.959	80	79.963	80.037	15.4	370.40
360	360.000	360.057	359.902	359.959	80	79.963	80.037	15.4	375.40
370	370.000	370.057	369.902	369.959	80	79.963	80.037	15.4	385.40
380	380.000	380.057	379.902	379.959	80	79.963	80.037	15.4	395.40


Nominal Bore Diameter	Clearance Bore	Interference Bore	Keyway		"T"-DIM +0.30/-0.00
Nominal Bore Diameter	H7 Bore (+0.000/+0.057) Min Max	P7 Bore (-0.041/-0.098) Min Max	Width (Js9) +/- 0.0435 Min Max	Height Nominal	"T"-DIM +0.30/-0.00
390 400	390.000 390.057 400.000 400.057	389.902 389.959 399.902 399.959	90 89.957 90.044 90 89.957 90.044	17.4 17.4	407.40 417.40


	Clearance Bore		Interference Bore		Keyway
Nominal Bore						Width (Js9)		Height	"T"-DIM
Nominal Bore	H7 Bore (+0.000/+0.063)		P7 Bore (-0.045/-0.108)			Width (Js9)		Height	"T"-DIM
Diameter	Min	Max	Min	Max	+/- 0.0435	Min	Max	Nominal	+0.30/-0.00
410	410.000	410.063	409.892	409.955	90	89.957	90.044	17.4	427.40
420	420.000	420.063	419.892	419.955	90	89.957	90.044	17.4	437.40
430	430.000	430.063	429.892	429.955	90	89.957	90.044	17.4	447.40
440	440.000	440.063	439.892	439.955	90	89.957	90.044	17.4	457.40
450	450.000	450.063	449.892	449.955	100	99.957	100.044	19.5	469.50
460	460.000	460.063	459.892	459.955	100	99.957	100.044	19.5	479.50
470	470.000	470.063	469.892	469.955	100	99.957	100.044	19.5	489.50
480	480.000	480.063	479.892	479.955	100	99.957	100.044	19.5	499.50
490	490.000	490.063	489.892	489.955	100	99.957	100.044	19.5	509.50
500	500.000	500.063	499.892	499.955	100	99.957	100.044	19.5	519.50
