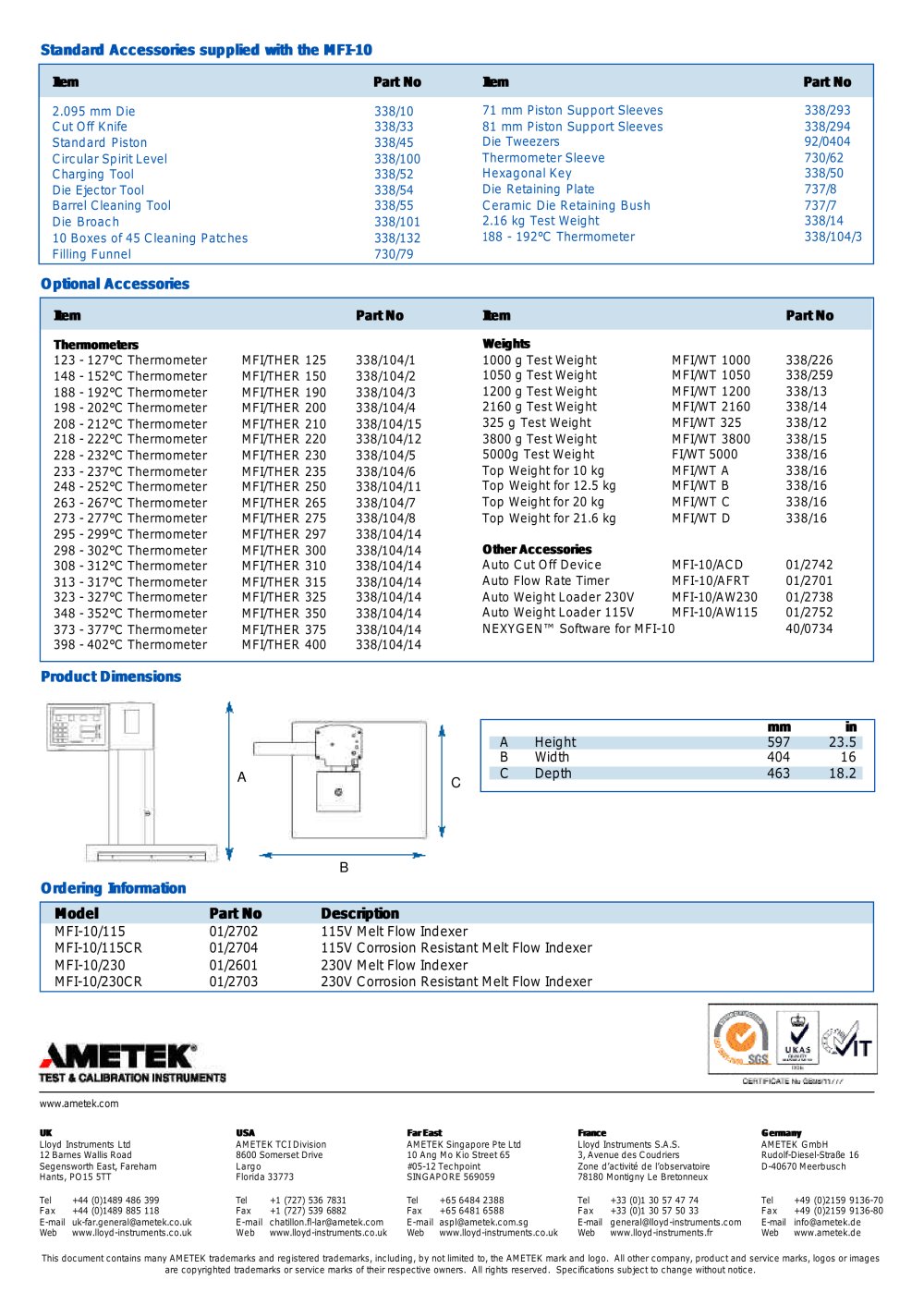

Standard Accessories suppled with the MFI-10


Hem	Part No	Item	Part No
2.095 mm Die	338/10	71 mm Piston Support Sleeves	338/293
Cut Off Knife	338/33	81 mm Piston Support Sleeves	338/294
Standard Piston	338/45	Die Tweezers	92/0404
Circular Spirit Level	338/100	Thermometer Sleeve	730/62
Charging Tool	338/52	Hexagonal Key	338/50
Die Ejector Tool	338/54	Die Retaining Plate	737/8
Barrel Cleaning Tool	338/55	Ceramic Die Retaining Bush	737/7
Die Broach	338/101	2.16 kg Test Weight	338/14
10 Boxes of 45 Cleaning Patches	338/132	188 - 192°C Thermometer	338/104/3
Filling Funnel	730/79

Optional Accessories


Item					Part No	Item		Part No
Thermometers						Weights
123 -	127°C	Thermometer	MFI/THER	125	338/104/1	1000 g Test Weight	MFI/WT 1000	338/226
148 -	152°C	Thermometer	MFI/THER	150	338/104/2	1050 g Test Weight	MFI/WT 1050	338/259
188 -	192°C	Thermometer	MFI/THER	190	338/104/3	1200 g Test Weight	MFI/WT 1200	338/13
198 -	202°C	Thermometer	MFI/THER	200	338/104/4	2160 g Test Weight	MFI/WT 2160	338/14
208 -	212°C	Thermometer	MFI/THER	210	338/104/15	325 g Test Weight	MFI/WT 325	338/12
218 -	222°C	Thermometer	MFI/THER	220	338/104/12	3800 g Test Weight	MFI/WT 3800	338/15
228 -	232°C	Thermometer	MFI/THER	230	338/104/5	5000g Test Weight	FI/WT 5000	338/16
233 -	237°C	Thermometer	MFI/THER	235	338/104/6	Top Weight for 10 kg	MFI/WT A	338/16
248 -	252°C	Thermometer	MFI/THER	250	338/104/11	Top Weight for 12.5 kg	MFI/WT B	338/16
263 -	267°C	Thermometer	MFI/THER	265	338/104/7	Top Weight for 20 kg	MFI/WT C	338/16
273 -	277°C	Thermometer	MFI/THER	275	338/104/8	Top Weight for 21.6 kg	MFI/WT D	338/16
295 -	299°C	Thermometer	MFI/THER	297	338/104/14
298 -	302°C	Thermometer	MFI/THER	300	338/104/14	Other Accessories
308 -	312°C	Thermometer	MFI/THER	310	338/104/14	Auto Cut Off Device	MFI-10/ACD	01/2742
313 -	317°C	Thermometer	MFI/THER	315	338/104/14	Auto Flow Rate Timer	MFI-10/AFRT	01/2701
323 -	327°C	Thermometer	MFI/THER	325	338/104/14	Auto Weight Loader 230V	MFI-10/AW230	01/2738
348 -	352°C	Thermometer	MFI/THER	350	338/104/14	Auto Weight Loader 115V	MFI-10/AW115	01/2752
373 -	377°C	Thermometer	MFI/THER	375	338/104/14	NEXYGEN™ Software for MFI-10		40/0734
398 -	402°C	Thermometer	MFI/THER	400	338/104/14

Product Dimensions


	A	Height	mm 597	in 23.5
	B	Width	404	16
C	C	Depth	463	18.2

Orderng Information


Model	Part No	Descnption
MFI-10/115	01/2702	115V Melt Flow Indexer
MFI-10/115CR	01/2704	115V Corrosion Resistant Melt Flow	Indexer
MFI-10/230	01/2601	230V Melt Flow Indexer
MFI-10/230CR	01/2703	230V Corrosion Resistant Melt Flow	Ind exer
