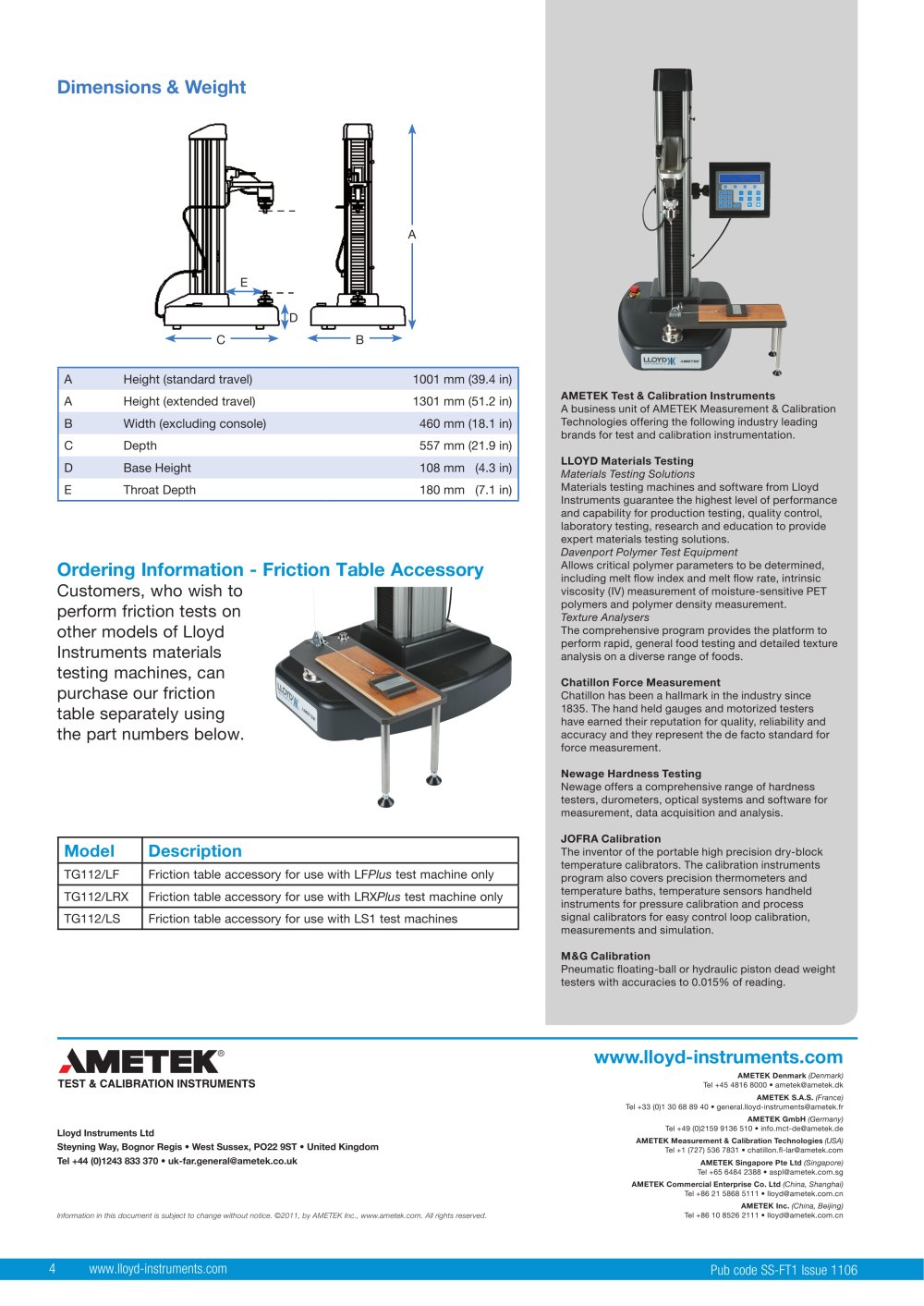

Dimensions & Weight E C B A Height (standard travel) 1001 mm (39.4 in) A Height (extended travel) 1301 mm (51.2 in) B Width (excluding console) 460 mm (18.1 in) C Depth 557 mm (21.9 in) D Base Height 108 mm (4.3 in) E Throat Depth 180 mm (7.1 in)
AMETEK Test & Calibration Instruments A business unit of AMETEK Measurement & Calibration Technologies offering the following industry leading brands for test and calibration instrumentation.
LLOYD Materials Testing Materials Testing Solutions Materials
testing machines and software from Lloyd Instruments guarantee the highest level of performance and capability for production testing, quality control, laboratory testing, research and education to provide expert materials testing solutions. Davenport Polymer Test Equipment Allows critical polymer parameters to be determined, including melt flow index and melt flow rate, intrinsic viscosity (IV) measurement of moisture-sensitive PET polymers and polymer density measurement. Texture Analysers The comprehensive program provides the platform to perform rapid, general food testing and detailed texture analysis on a diverse range of foods.
Chatillon Force Measurement Chatillon has been a hallmark in the industry since 1835. The hand held gauges and motorized testers have earned their reputation for quality, reliability and accuracy and they represent the de facto standard for force measurement.
Newage Hardness Testing Newage offers a comprehensive range of hardness testers, durometers, optical systems and software for measurement, data acquisition and analysis.
JOFRA Calibration The inventor of the portable high precision dry-block temperature calibrators. The calibration instruments program also covers precision thermometers and temperature baths, temperature sensors handheld instruments for pressure calibration and process signal calibrators for easy control loop calibration, measurements and simulation.
M&G Calibration Pneumatic floating-ball or hydraulic piston dead weight testers with accuracies to 0.015% of reading.
Ordering Information Customers, who wish to perform friction tests on other models of Lloyd Instruments
materials testing machines, can purchase our friction table separately using the part numbers below.
Friction Table Accessory Model Descript TG112/LF Friction table accessory for use with LFPlus test machine only TG112/LRX Friction table accessory for use with LRXPlus test machine only TG112/LS Friction table accessory for use with LS1 test machines
