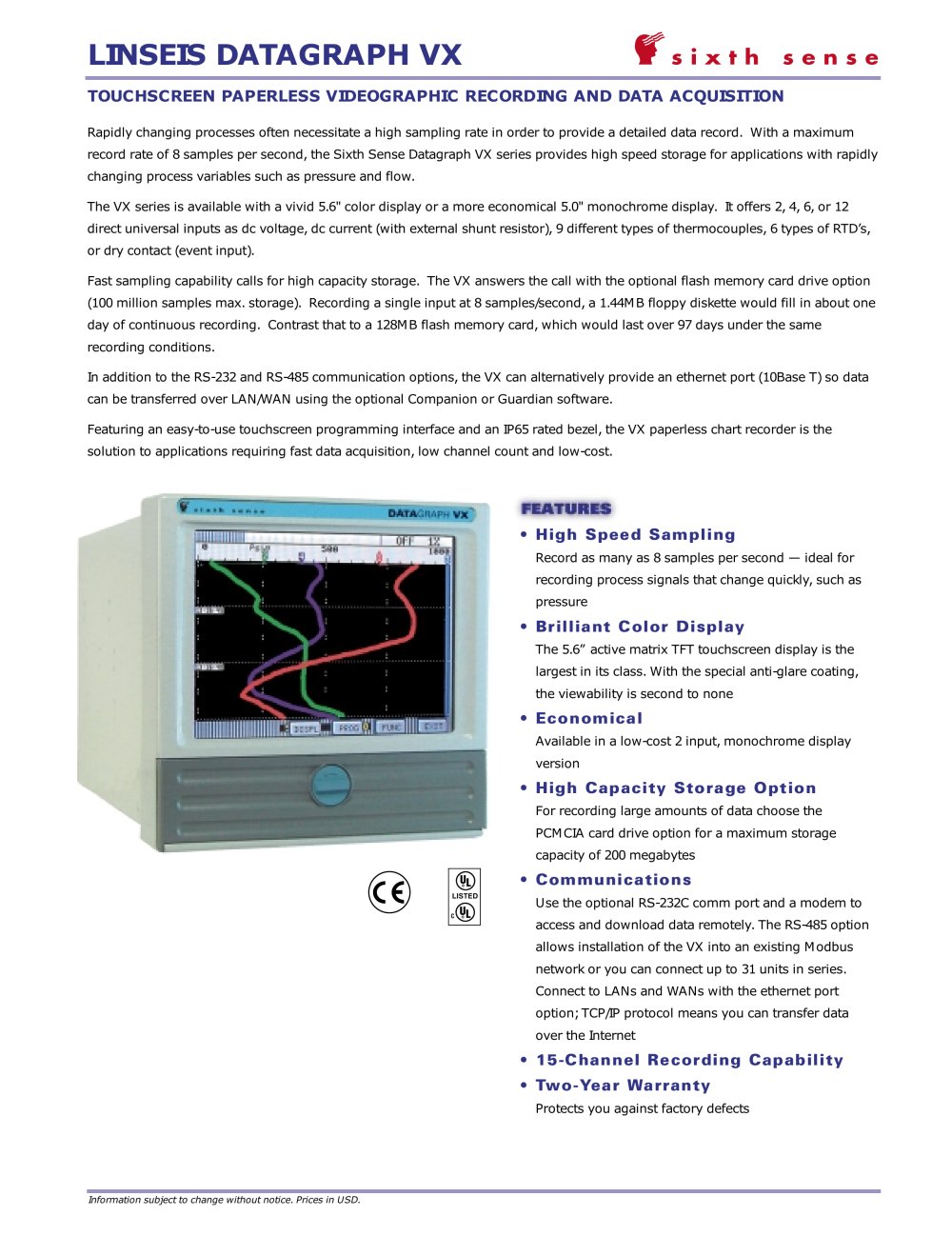

Information subject to change without notice. Prices in USD. LINSEIS DATAGRAPH VX TOUCHSCREEN PAPERLESS VIDEOGRAPHIC RECORDING AND DATA ACQUISITION Rapidly changing processes often necessitate a high sampling rate in order to provide a detailed data record. With a maximum record rate of 8 samples per second, the Sixth Sense Datagraph VX series provides high speed storage for applications with rapidly changing process variables such as pressure and flow. The VX series is available with a vivid 5.6" color display or a more economical 5.0" monochrome display. It offers 2, 4, 6, or 12 direct universal inputs as dc voltage, dc current (with external shunt resistor), 9 different types of thermocouples, 6 types of RTD’s, or dry contact (event input). Fast sampling capability calls for high capacity storage. The VX answers the call with the optional flash memory card drive option (100 million samples max. storage). Recording a single input at 8 samples/second, a 1.44MB floppy diskette would fill in about one day of continuous recording. Contrast that to a 128MB flash memory card, which would last over 97 days under the same recording conditions. In addition to the RS-232 and RS-485 communication options, the VX can alternatively provide an ethernet port (10Base T) so data can be transferred over LAN/WAN using the optional Companion or Guardian software. Featuring an easy-to-use touchscreen programming interface and an IP65 rated bezel, the VX paperless chart recorder is the solution to applications requiring fast data acquisition, low channel count and low-cost. • High Speed Sampling Record as many as 8 samples per second — ideal for recording process signals that change quickly, such as pressure • Brilliant Color Display The 5.6” active matrix TFT touchscreen display is the largest in its class. With the special anti-glare coating, the viewability is second to none • Economical Available in a low-cost 2 input, monochrome display version • High Capacity Storage Option For recording large amounts of data choose the PCMCIA card drive option for a maximum storage capacity of 200 megabytes • Communications Use the optional RS-232C comm port and a modem to access and download data remotely. The RS-485 option allows installation of the VX into an existing Modbus network or you can connect up to 31 units in series. Connect to LANs and WANs with the ethernet port option; TCP/IP protocol means you can transfer data over the Internet • 15-Channel Recording Capability • Two-Year Warranty Protects you against factory defects
